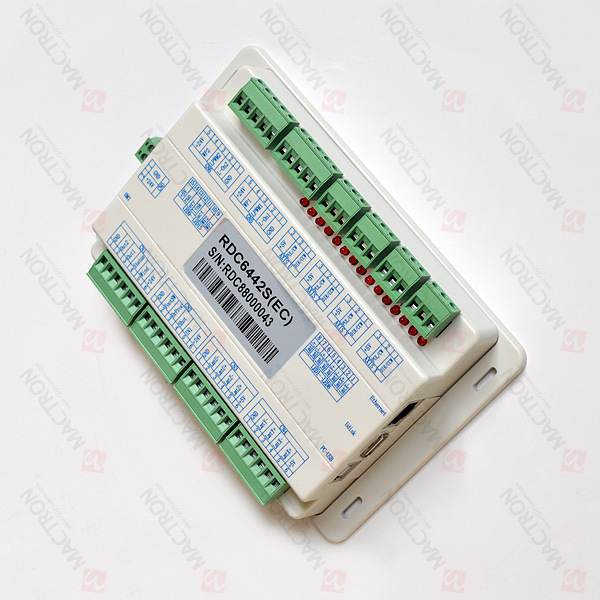

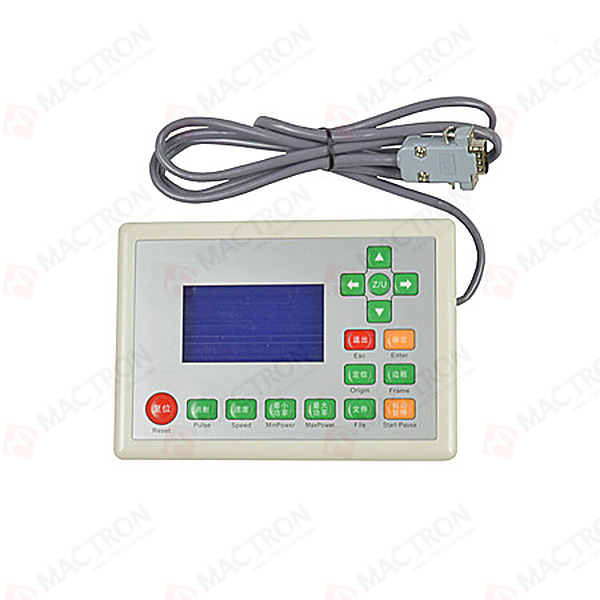

Ruida RDC6442S Co2 Laser DSP Controller Laser 4 Axis Card Engraving Cutting Machine Display Control Panel

Ruida RDC6442S Co2 Laser DSP Controller Laser 4 Axis Card Engraving Cutting Machine Display Control Panel

Specification:
- The sixth generation controller
- Controller version number
- 4 axis card
- X: Display Type (1: TTF character screen ; 2:3.5 inch color screen ; 3:5.7 inch color screen ; 4:7 -inch touch screen. )
- G: Standard functions
- Languages options: Chinese, Traditional Chinese, English, French, Russian, Portuguese, Turkish, German, Spain, Vietnamese, Korean, Italian.
- By default, the controller only has Chinese and English languages.
- RDC6442S FOR two heads move seperately
- Ethernet (10/100M) and USB2.0 transmission, controller automatic query as communication mode;
- With true color TFT screen, the board can display the true colors of machine image, and also show the actual coordinates of the laser head.
- The status bar can indicate the frame size of the current file, and the status of network connection, etc.
- Preview of the file drawing saved in the memory is available. The refresh speed is incomparable in China.
- Display the machining track and coordinates dynamically.
- Dynamically display the machining process bar of the whole image.
- Be able to correct the machining parameters of each layer on the operational board (e.g. speed, power, etc), and be able to save the modified layer parameters automatically for future use (this function is unavailable in the similar products from other Chinese manufacturers. ).
- Support continuous engraving after power-down and work-hour preview (Accurate to the millisecond, and the preview values are exactly same as the real work timing, which is incomparable in China).
- Support feed, up-and-down, rotary engraving, left-and-right moving, etc.
- RDC644XG is the latest generation of laser engraving / cutting control system, with hardware stability, resistance to high pressure, and resistance to electrostatic interference.
- This controller adopts enhanced motion control algorithm, the machining speed and efficiency of which are unmatched at rivals.

Product Description:
- RDC644XG Core Technology Development System is the latest generation of laser engraving / cutting control system,the control system has better hardware stability, better resistance to high pressure, static interference characteristics.
- 3.5-inch color screen based HMI operating system has a more friendly user interface and more powerful .
- The controller includes better and more superior motion control functions,large file storage,compatibility stronger dual independently adjustable laser power control interface,compatibility stronger U disk driver,multiple generic / private IO control,communication with PC supports Ethernet communications and automatic optional USB communication and so on.

Comparison of Controller Performance:
- RDC644XG system is a new generation system for control of laser engraving and cutting.
- High hardware stability, high voltage or static electricity rejection, and friendly 3.5TFT man-machine display.
- This system is provided with stronger software function including perfect 4-axis motion control function, large-capacity file storage, two-channel adjustable digits laser power control interface, USB driver of stronger compatibility, multi-channel general/special IO control, and, this system can communicate with PC by USB2.0 or Ethernet, and the communication mode is automatically checked by the system.

Digital laser control signals:
- TTL level output, 50 mA,drive capability(can set enable signal polarity in software)
- PWM frequency 2K-50K for adjustable
- PWM duty ratio is 1% ~ 99%, adjustable
- PWM value is up to 5.0 V
- Motor control signal:common-anode output, drive capability 20 mA. Motor control pulse frequency: Max.500KHZ
- USB: Max. transmission rate 12M bps; The longest distance is 5 meters.
- Network:Max. transmission rate is100M; Max. transmission distance is 200M.
- Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse
- Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
- Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level

Paqckage List:

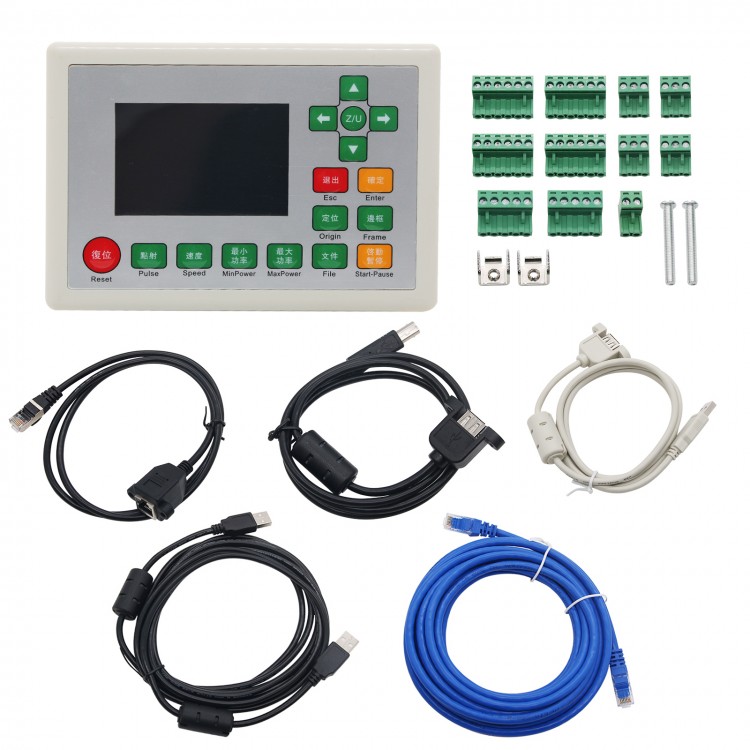

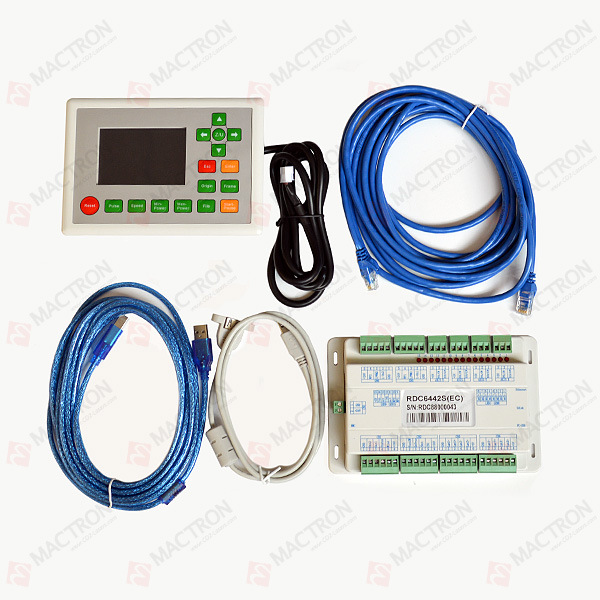

- 1    X    Laser Cutting Engraving Machine
- 1    X   USB Connection wire
- 1    X   Date Wire
