| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $31.28 | $30.64 | $29.69 | $28.41 | Contact US |

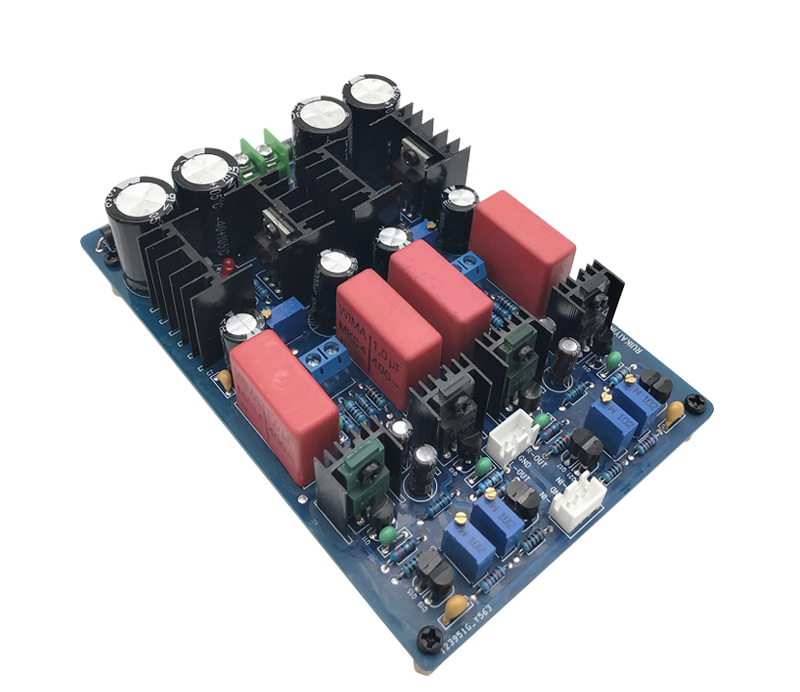

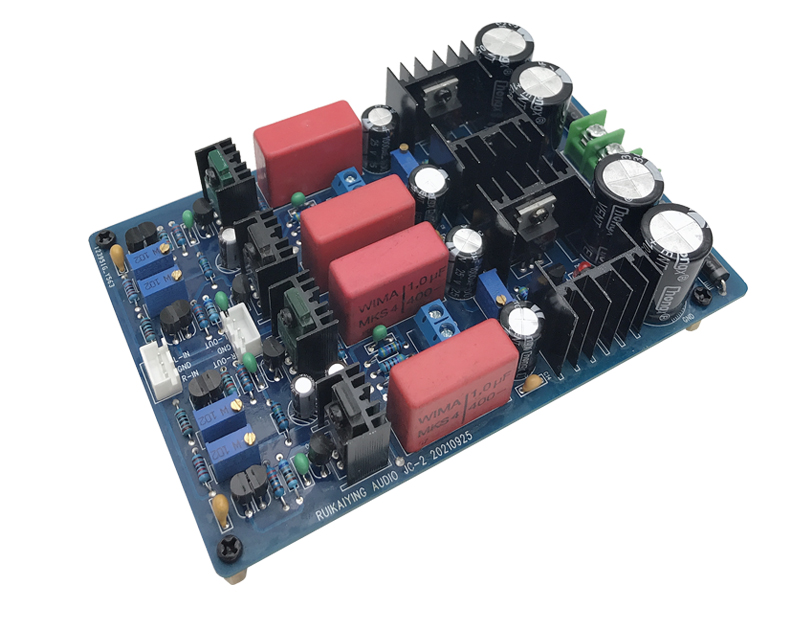

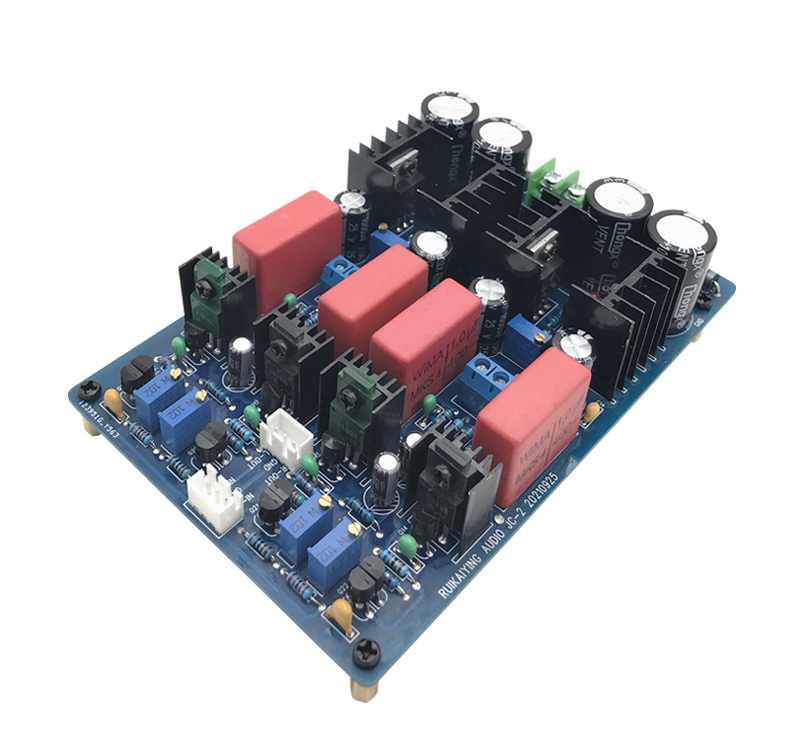

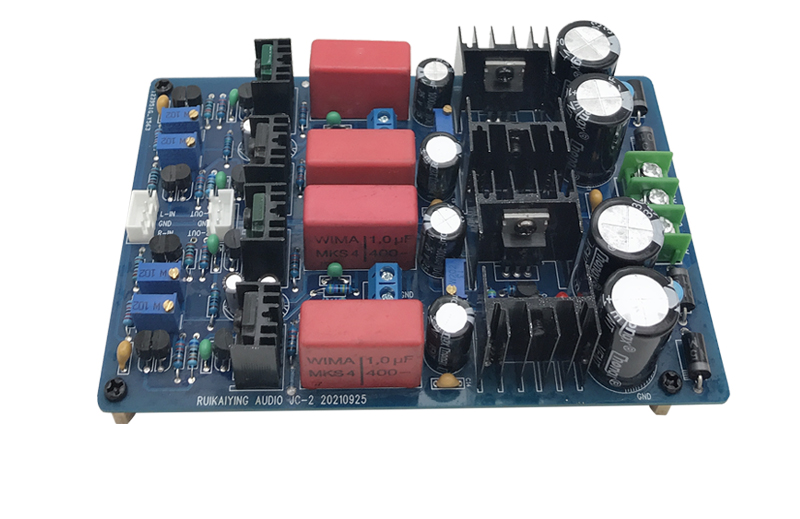

RUIKAIYING AUDIO JC-2 Class A Preamplifier Board Preamp Board to DIY Power Amplifiers Speakers
Description:
JC-2 is a preamplifier board, not an amplifier. It needs to be connected to an amplifier or active speakers to use. It cannot directly connect speakers or passive speakers.
Features:
- Ultra-wide dynamic: showing good sound and high music reproduction ability
- Using imported 3298/1306 paired transistor (second hand)
- Reduce prices while maintaining quality
- Very low noise, almost zero
- Using 4 pairs of K170/J74 FETs and 4 hifi coupling capacitors for WIMA. Fast speed. Loss low sound quality appears as a natural balance
- The board has passed multiple tests before shipping
Specifications:
- Product name: Class A preamp board
- Model: JC-2
- Function type: pre-amplifier / voltage amplification 5 times
- Model of paired transistor: 1306/3298
- Supply voltage: AC12V-0-12V to 15V-0-15V
- Dimensions: 138 x 90 x 28mm/5.4 x 3.5 x 1.1" (bottom copper post 10mm/0.4")
- Product weight: 0.18KG/0.4LB
Package Included:
- 1 x Board
Attention:

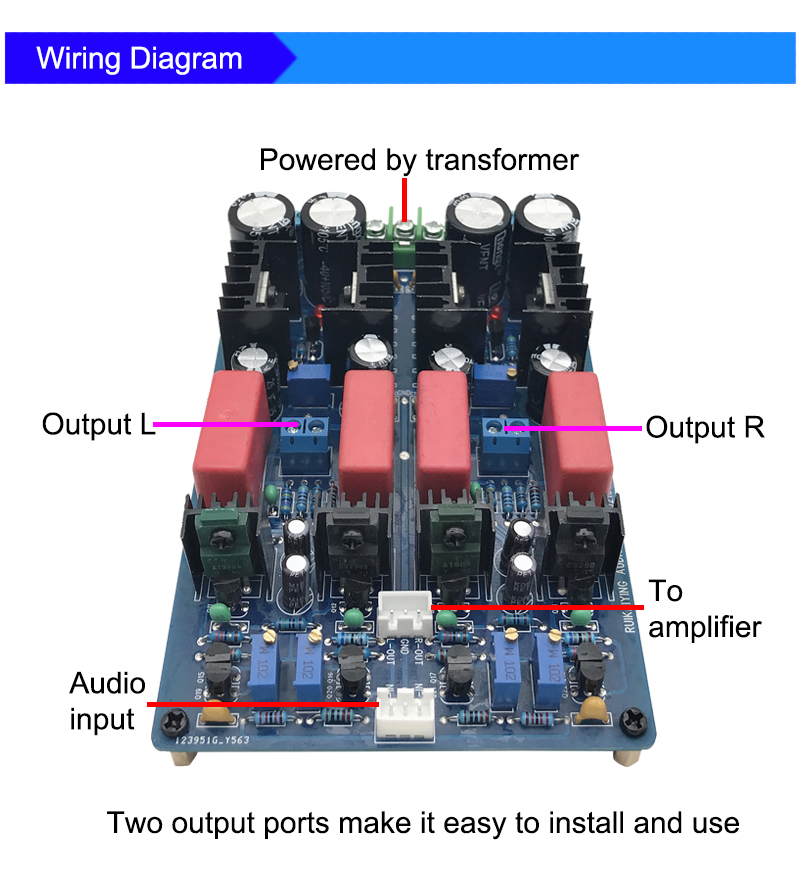

The board is noise-free. When auditioning, please plug your audio device into the audio input of the board. Please do not leave it empty, because if it is empty, the signal line will introduce noise, and the shielded line will not work when it is not connected to the audio source device. Shielded cables are required for connecting the audio source to the amplifier. In addition, it is recommended to ground the potentiometer and the case when installing a case.
