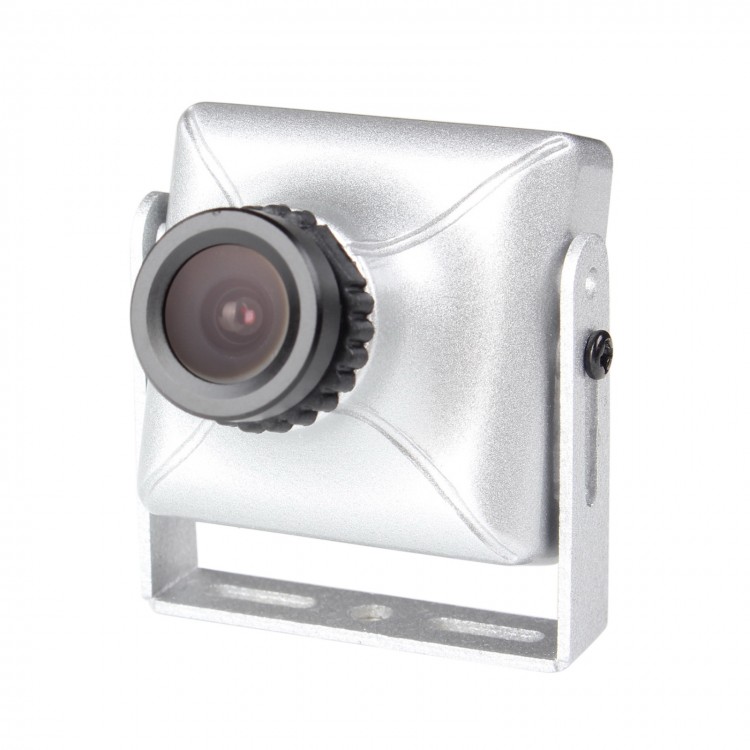

RunCam 600TVL DC 5-17V Wide Voltage Mini FPV Camera for QAV250 Multicopter

RunCam 600TVL DC 5-17V Wide Voltage Mini FPV Camera for QAV250 Multicopter

Description:
This is an optimized version of PZ0420. It still keeps 600TVL resolution and excellent color rendition, supporting 5 to 17V operating voltage. The board size is reduced to 28*28mm, which can reduce air resistance for FPV aircraft. Besides,the weight of camera is just 18g (with case), 12g (without case). It is suitable for fixed-wing aircraft and Multirotor like QAV250, which are highly required in voltage and weight.

Features:
- High-quality black and white 650TVL Color 600TVL
- 1 / 3''SONY SUPER HAD CCD II
- Support 2 ~ 4S battery (DC 5-17V) wide voltage power input
- Default 2.8mm lens
- Mobile 5D OSD menu
- Digital wide dynamic range (D-WDR)
- Digital Noise Reduction (DNR 2)
- Low power consumption
- Backlight Compensation (BLC)
- Mirroring
- Anti-exposure function support plate record (HLC)
- Illumination: 0.01LUX
- White Point Repair (DPC)
- CVBS (BNC), video output

Parameters:
- Image Sensor:  1/3 SUPER HAD II CCD
- Horizontal resolution : 600TVL
- Effective pixels PAL: 753 (H) * 582 (V), NTSC: 768 (H) * 494 (V)
- Signal System:  PAL / NTSC
- Synchronization:  Internal
- Auto white balance:  manual / automatic / automatic tracking
- S / N ratio: > 60dB (AGC off)
- Electronic Shutter Speed PAL: 1 / 50-1 / 100,000sec; NTSC: 1 / 60-1 / 100,000
- Automatic Gain Control (AGC):  Off / Low / Medium / High
- Backlight Compensation (BLC):  Close / BLC / anti-exposure
- Motion Detection (MD):  on / off (multi-level sensitivity)
- Minimum illumination 0.01Lux / 1.2F
- Privacy masking area:  8
- Video Output:  1.0Vp-p 75 ohm BNC output
- Power:  DC 5-17V
- Prismatic compensation: Yes
- Display mode : LED display / CRT monitors
- IR on Synchronization is black and white and color shift: Yes (optional)
- Infrared image optimization intermediate object anti-exposure
- Dynamic Digital Noise Reduction (DNR) 2DNR
- Day / Night switching Auto / Color / B & W / external control (start and end position controlled)
- Day / Night switching time 1 ~ 30S
- OSD: Chinese / English menu
- White Point Repair (DPC):Yes
- Image adjustment: Yes
- Function Control :OSD
- Size 31mm x 31mm
- Operating voltage 5.0V;12.0V; 17.0V
- Power supply 170mA;50mA; 30mA
- Operating temperature: -10C - + 50C
- Operating humidity: 10% - 90%

Package included:
- 1 x FPV Camera
