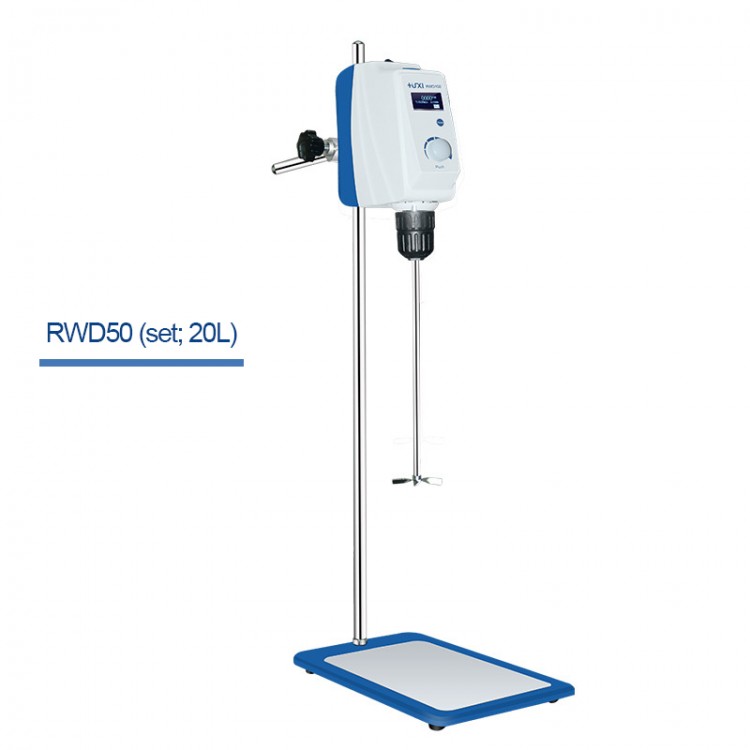

RWD50 20L Overhead Mixer Laboratory Mixer Overhead Stirrer Mixer Kit 30-2200RPM w/ LCD Display

RWD50 20L Overhead Mixer Laboratory Mixer Overhead Stirrer Mixer Kit 30-2200RPM w/ LCD Display

Features:
- CE and ISO9001 certificates
- LCD display set value and actual value
- LCD display speed and time
- Automatic torque adjustment, accurate control of high and low speed, multiple overload protection, safety circuit settings
- Brushless DC motor: No need to replace carbon brushes, low noise, large torque, and maintenance-free. Accurately control the speed, start smoothly, effectively prevent sample overflow
- Stirring paddle penetration holes for easy container replacement
- Self-locking drill bit holder, which can be installed without tools
- The back shell is made of high-quality aluminum alloy
- Speed up to 2200rpm
- Imported chuck, easy installation, stable and not loose
- There is a protective film on the bottom plate, making it operate more stable and last for long time
- 316 stainless steel column with a diameter of 18mm and a length of 800mm can meet the needs of different users. Durable and easy to clean, work more stable
- Equipped with a four-blade 316 stainless steel mixing paddle
- Adjustable fixing clip can adjust the position of head according to the needs of the experiment
- Rich extension applications. It can be connected to a PC through RS232 data transmission port to control the instrument and record data such as speed and torque
- 2m power cord provides users with more space for use
- A buckle is installed on the column to prevent the connector from falling during operation, allowing users to use with ease
- The chuck is equipped with a protective cover to prevent stirred liquid from splashing on the chuck during the mixing process and shorten the service life of the chuck
- Wide application range. Can be used in coatings, pharmaceuticals, food, daily chemicals, paper chemistry, pesticides, water treatment, etc.

Specifications:
- Model: RWD50
- Stirring capacity (H2O): 20L
- Torque: 40N.cm
- Motor input power: 60W
- Motor output power: 50W
- Product power: 70W
- Viscosity: 10000mPas
- Speed range: 30~2200rpm
- Speed error: ±3rpm
- Motor type: Brushless DC motor
- Speed display: LCD
- Speed display resolution: ±1rpm
- Overload protection: Display failure and stop automatically
- Motor protection: Display failure and stop automatically
- Drill chuck diameter range: 0.5-10mm
- Dimensions: 186*83*220mm
- Protection Way: IP42
- Ambient temperature: 5-40℃
- Ambient humidity: 80%
- RS232: For Modbus
- Voltage: 100-240 AC
- Frequency: 50/60Hz
- Safety protection: Chuck protective cover, safety buckle, non-slip pad
- Stirring time setting: With
- Speed adjustment method: Coarse adjustment and fine adjustment
- Stirring paddle fixing method: Self-locking chuck

Package Included:
- 1 x Set of Overhead Stirrer Mixer
