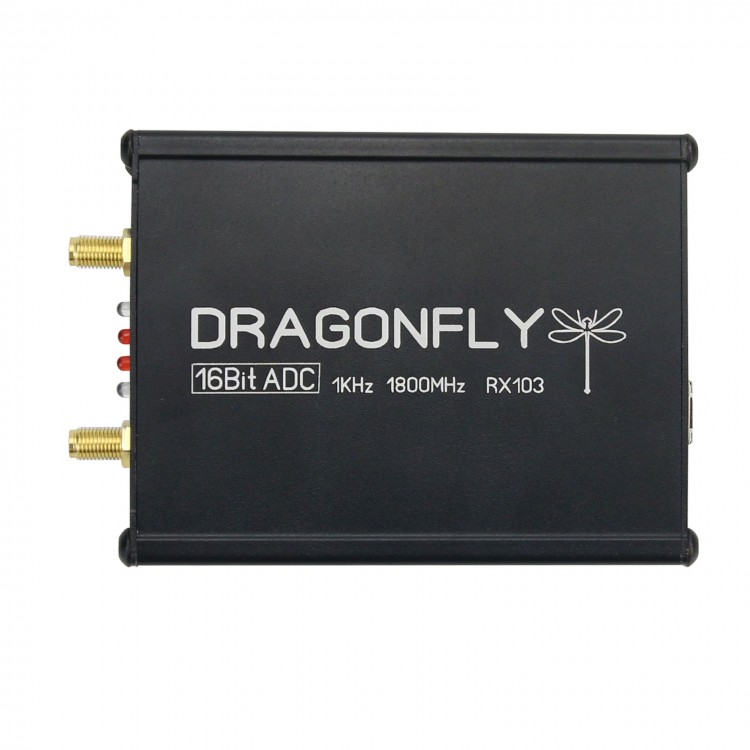

RX103 1KHz-1800MHz SDR Radio Receiver High Sensitivity 16Bit Direct Sampling w/ Large 0.1ppm TCXO

RX103 1KHz-1800MHz SDR Radio Receiver High Sensitivity 16Bit Direct Sampling w/ Large 0.1ppm TCXO

Description:
RX103 is the upgraded version of RX-666. It is a 16-bit direct sampling broadband high-performance SDR radio receiver.

Features:
- High performance, high dynamics, high sensitivity, no mirroring. Shortwave real-time spectrum 32M at a glance! UV real-time spectrum bandwidth 8M
- Support for software HDSDR customized version SDRConsole (V3)
- Powered via USB3.0 interface
- Dual antenna interface: LW/HF and V/UHF (interface type: SMA female connector, providing power supply for external antenna amplifier)
- Frequency range: 1KHz-1800MHz
- Aluminum alloy laser cutting shell. strong and sturdy!
- Cooling method: shell contact passive cooling
- ADC adds anti-jitter, anti-interference function
- Steel hexagon socket screws are fastened, thick and heavy, with a strong texture.
- 16bit ultra-high sampling, 32M bandwidth.
- ADC chip uses LTC2208, 16BIT 32M direct sampling, high sampling bandwidth of 32M! The rate of LTC2208 is relatively high, the throughput is very large.

Attention:
- Operating environment requirements: For Windows 7, Win8, Win8.1 and Win10
- Computer performance is based on a desktop computer: i5 3570 4G memory can run HDSDR smoothly. If running SDRConsole (V3), the computer must have memory above 8G, 16G memory is recommended! 32M bandwidth usb3.0 has a large data throughput, which has certain requirements for computer performance. Prepare your powerful computer!
- You must use a high-performance computer equipped with a USB3.0 interface to run it smoothly.

Pacakge Included:
- 1 x Set of SDR Radio Receiver
