RX40E 500M/1640.4FT 12V 24V 30V 40A Boat Remote Control Kit w/ Foldable Antenna for Fishing Trawler

RX40E 500M/1640.4FT 12V 24V 30V 40A Boat Remote Control Kit w/ Foldable Antenna for Fishing Trawler

Precautions:
1.The positive and negative terminals of the input must be connected correctly. The motherboard will burn out when the wrong wire is connected.
2. Built-in gyroscope. For installation, the direction of the arrows on the circuit board should be towards the bow.
3. The current at the output of the decouple and the output of the LED lamp cannot exceed 3A. And the output must not be shorted.
4. Take waterproof measures to prevent water from entering the motherboard. It is recommended to wrap the remote control with plastic wrap to prevent water ingress, otherwise your remote boat may lose control or be burned. Buyers are responsible for damage caused by water ingress.
5. Read the product information carefully before use. After the wiring is complete, check it again and then power it on. When energizing, take care to secure the hull and avoid the propeller to avoid being scratched.

Features:
- 2.4G 40A boat remote control set
- Each channel has independent over-current and short-circuit protection. The over-current value can be set by the knob. It solves the problem that the main board or motor of RC fishing trawler is easily burned out
- Abundant interfaces: with interfaces for servo, switch, drain pump, hook hook detacher, lighting, and electricity display
- Flexibly control the forward, backward, left and right turns of the hull. It also has the function of adjusting speed and cruising control
- Main board with built-in gyroscope: PID algorithm ensures that the hull can travel in a straight line even at different speeds
- Driven by dual MOSFET (with low internal resistance) in parallel. The enlarged and thickened L-shaped heat sink enhances heat dissipation and generates very little heat
- Reasonable layout to minimize the volume

Product Parameters:
1. Receiver:
- Working voltage: suitable for 12V and 24V lithium batteries, polymer batteries, and lead batteries. 24V batteries are recommended. The effective operating voltage of the receiver is 10-33VDC (batteries are not included)
- Operating current: 40A max
- Suitable motor: can drive motors including 775, 795, 895 and 997
- Power control: forward, reverse, left turn, right turn, adjustable speed, supporting cruising control and gyroscope straight driving (When reversing, the maximum throttle is taken 70% forward)
- Remote control distance: 500M/1640.4FT on the water
- Over-current protection: With. Adjustable over-current protection value. When over-current protection is turned on, the light will flash to alert the user
- Remote control weak signal alert: None
- Boat low battery reminder: None
- Remote low battery alert: None
- Servo interface: forward and reverse
- Drain pump interface: Consistent with battery voltage. It works when the switch is closed
- Electricity display interface: Consistent with battery voltage. It works when the switch is closed
- Hook detacher interface: Consistent with battery voltage. Controlled by the remote control. The hook will be automatically released in two seconds after pressing the control switch on the remote control
- Searchlight interface: Consistent with battery voltage. It can be controlled by remote control
- Receiver dimensions: 103 x 82 x 33mm/4.1 x 3.2 x 1.3"
- Weight: 231g/0.5lb without waterproof case

2. Remote control:
- Remote control channels: front, rear, left, right, light control, servo control, hook detacher solenoid control, cruising control, and cruising speed +/-
- Power consumption: 21mA
- Weight: 58g/0.1lb

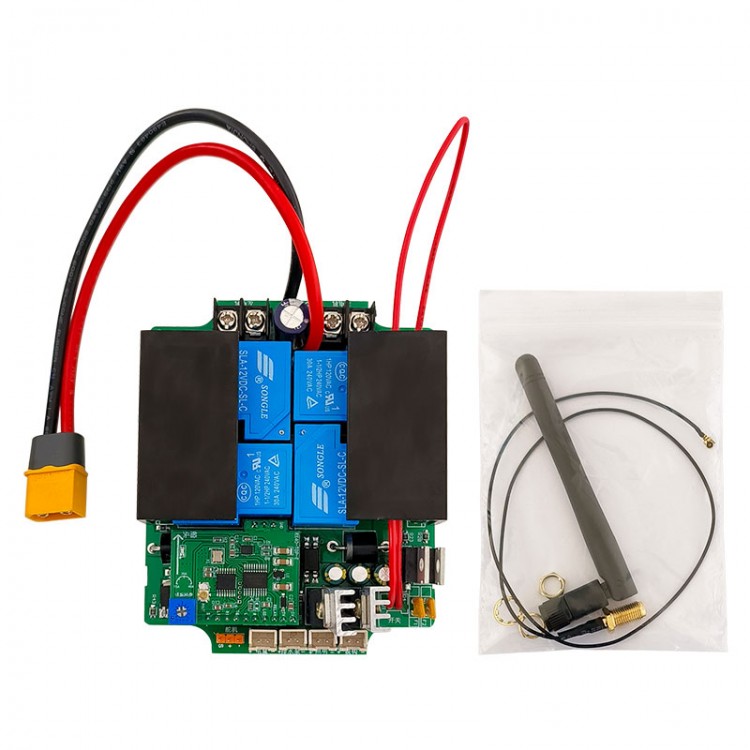

Package Included:
- 1 x Receiver Motherboard
- 1 x Remote Control
- 1 x Bag of Foldable Antenna

Note:
- Batteries are not included. 2pcs AAA dry batteries are needed for the remote control.
