RX40G 500M/1640.4FT 12V 24V GPS Beidou Boat Remote Control Kit 40A Motherboard for Fishing Trawler

RX40G 500M/1640.4FT 12V 24V GPS Beidou Boat Remote Control Kit 40A Motherboard for Fishing Trawler

Features:
- With GPS + Beidou + compass module, it can realize one-key return and fishing point navigation
- High current output, one-way 15A-40A adjustable. Widened and thickened wires with less heat generation and high current
- Abundant interfaces: with interfaces for servo, electricity display, drain pump, hook hook detacher, and lighting
- Main board with built-in gyroscope: PID algorithm ensures that the hull can travel in a straight line even at different speeds
- Reasonable layout to minimize the volume
- Boat motherboard with battery voltage low battery reminder, remote control battery low battery reminder, and weak signal reminder (when wireless signal exceeds the distance)

Product Parameters:
1. Receiver:
- Working voltage: suitable for 12V and 24V lithium batteries, polymer batteries, and lead batteries. 24V batteries are recommended
- Operating current: 15-40A
- Suitable motor: can drive motors including 775, 795, 895 and 997
- Positioning accuracy: about 5m/16.4ft
- Remote control distance: 500M/1640.4FT on the water

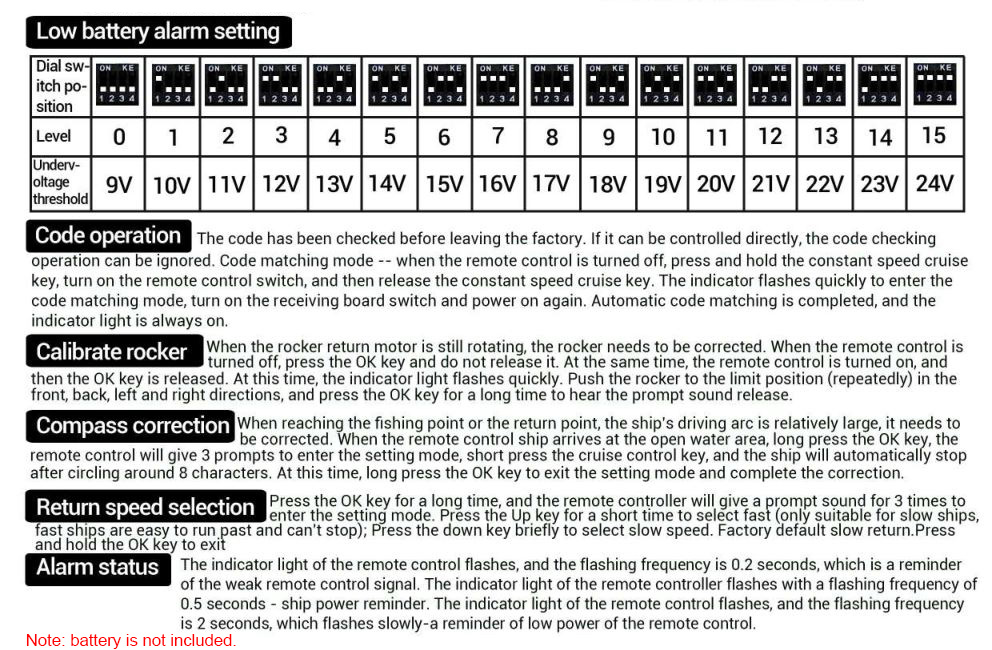

- Over-current protection: With. Adjustable over-current protection value. When over-current protection is turned on, the light will flash to alert the user
- Remote control weak signal alert: With. The remote control indicator will flash. The flashing frequency is 0.2 seconds fast flash
- Boat low battery reminder: With. The remote control indicator will flash. The flashing frequency is 0.5 seconds. It intelligently determines the battery voltage and number of cells
- Remote low battery alert: With. The remote control indicator will flash. The flashing frequency is 2 seconds of slow flashing
- Servo interface: forward and reverse
- Electricity interface: Consistent with battery voltage. Controlled by a hardware switch
- Drain pump interface: Consistent with battery voltage. Controlled by a hardware switch
- Hook detacher interface: Consistent with battery voltage. Controlled by the remote control. The hook will be automatically released in two seconds after pressing the control switch on the remote control
- Searchlight interface: Consistent with battery voltage. It can be controlled by remote control
- Receiver dimensions: 103 x 82 x 33mm/4.1 x 3.2 x 1.3"
- Net weight: about 245g/0.5lb

2. Remote control:
- Remote control channels: forward, reverse, left, right, light control, servo control, hook detacher solenoid control, cruising control, and cruising speed +/-
- Power consumption: 21mA
- Weight: 58g/0.1lb

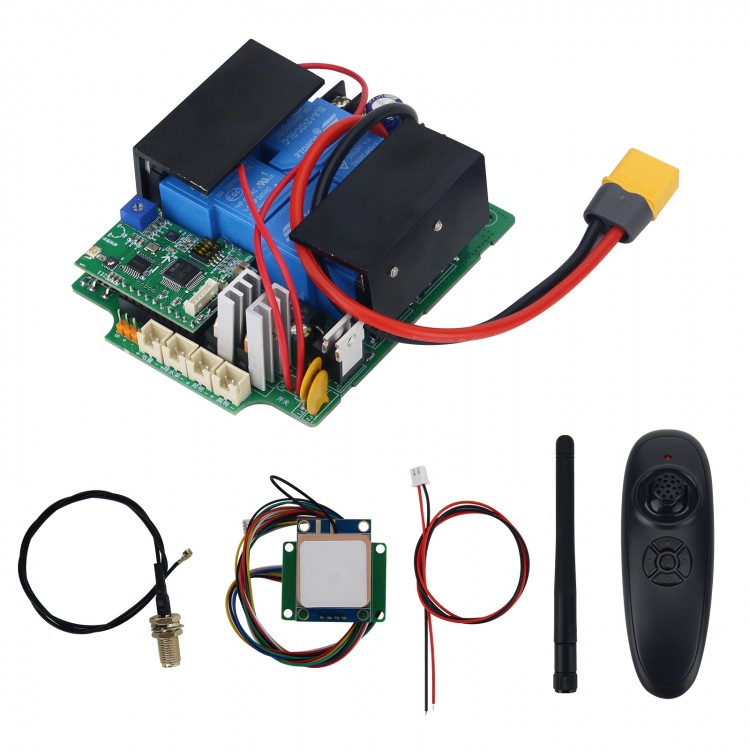

Package Included:
- 1 x Receiver Motherboard
- 1 x Remote Control
- 1 x Antenna

Note:
- Batteries are not included. 2pcs AAA dry batteries are needed for the remote control.
- The remote control is not waterproof, so please protect the remote control by wrapping it with plastic wrap!
