RX6788 2.4G Universal Wireless Audio Video Receiver Module AV Receiver Module with High Sensitivity
Description:

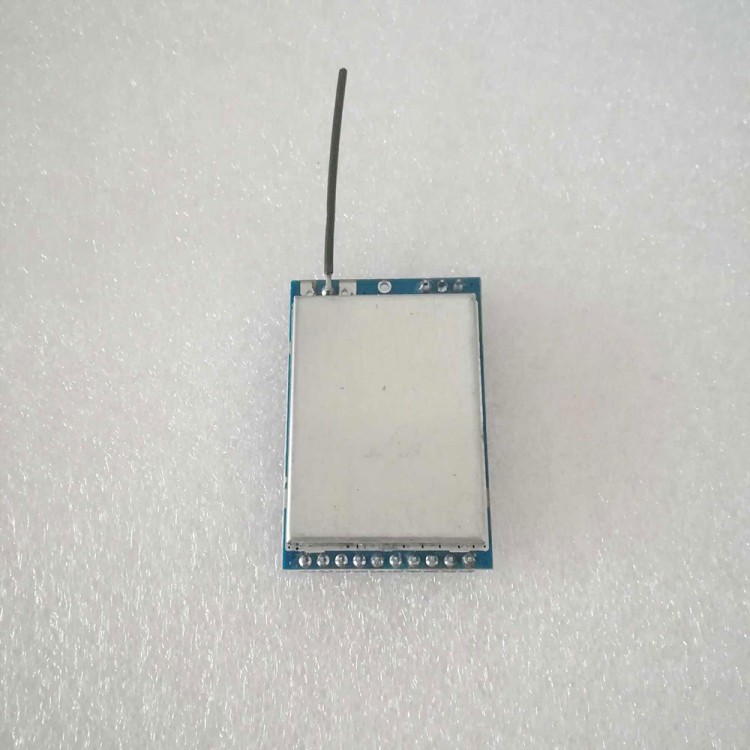

RX6788 is an FM audio and video receiving and demodulating module working in the 2414-2468MHz ISM frequency band. The module adopts a single-chip design, which integrates VCO, PLL, broadband FM video demodulation and FM audio demodulation. The module has small size, low power consumption and high sensitivity. It adopts patch or plug-in packaging, which is convenient for users to install.
The application of this module only requires a simple connection to a power supply, single/dual audio cables and video cable. It can receive music and image signals when connected to an antenna.
Performance Indicators:
- Brand: RFAV
- Model: RX6788
- Unit: Piece
- Working frequency: 2.4GHZ
- 2 groups of frequencies with 8 channels to choose from, easily avoid interference frequencies: CH1 2414/2490MHz, CH2 2432/2510MHz, CH3 2450/2390MHz and CH4 2468/2370MHz
- Modulation mode: Broadband FM
- Working sensitivity: -93dBm
- Working voltage: 5V
- Current consumption: about 150mA
- Dimensions: 45mm x 30mm x 4.8mm/1.8" x 1.2" x 0.2"
- Built-in frequency phase-locked loop with high stability
- Low clutter leakage. It meets the US FCC and European CE (R&TTE) wireless certification standards
- Directly outputs audio and video signals
- Patch installation makes it convenient to use
Package Included:
- 1 x Audio Video Receiver Module
Packaging Details:
- Weight: 0.2kg
