Features
| Specefications |
| Model |
RY-F600 |
| Applicable fibers |
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655) |
| Fiber cleaved length |
10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm) |
| Fiber diameter |
Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm |
| Auto focusing |
Available |
| Fiber aligning method |
Core aligning, clad aligning, manual aligning |
| Average splice loss |
0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS) |
| Splicing time |
Typical 9 sec,with standard SM fiber |
| Heating time |
Typical 36 sec |
| Applicable sleeves |
60mm, 40mm and a series of micro sleeves |
| Tension test |
2N(option) |
| Electrode life |
5000 |
| Battery capacity |
Typical 400 cycles (splice and heat) |
| Monitor |
5.1 inch TFT color monitor |
| Terminal |
USB 1.1 and VGA , software upgrade via USB interface |
| Operating condition |
0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s |
| Splicing mode |
Auto ,normal |
| Fiber cleaved angle threshold set |
0.1 ~ 10.0 oC , 0.1oCstep |
| Power supply |
Li-battery 11.8V , AC100-240V DC12.6V/5.0A |
| Dimension |
L169*W152*H155mm |
| weight |
2.4kg 2.9kg(battery) |
Package Include:

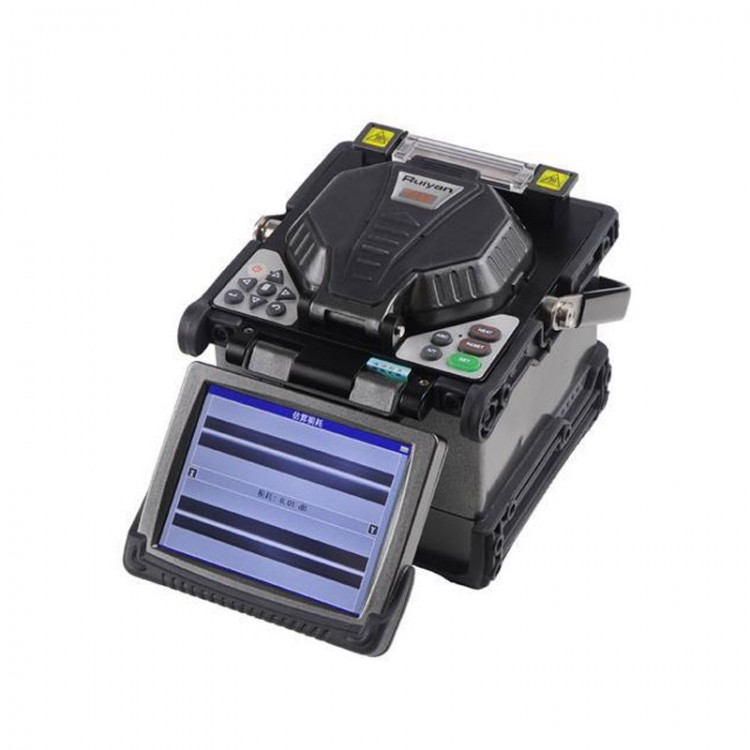

1 x Fusion Splicer Machine
1 x Fiber Stripper
1 x Optical Fiber Cleaver
1 x Alcohol box
1 x Tweezers
1 x Charger
1 x Spare Electrodes
1 x Cotton swab
1 x Hairbrush
1 x Bellows
1 x Cooling Tray
1 x Product qualification certificate
1 x Warranty card
1 x User's manual
