RZNC-0503 3 Axis Plasma Controller For CNC 3-Axis 3-Linkage 2-Axis Cylinder Plasma Engraving Machine

RZNC-0503 3 Axis Plasma Controller For CNC 3-Axis 3-Linkage 2-Axis Cylinder Plasma Engraving Machine

Advantages:
- Handle with U disk port
- 50-pin data cable
- 24V wiring board with 50 holes

Product Introduction:
- Model: RZNC-0503
- Power supply: 24v
- Number of pins: 50-pin
- This product is a DSP plasma engraving machine handle, supports three-axis three-linkage and two-axis cylinder, and supports one-key repeat processing function.

DSP Three-Axis Function Characteristics:
1. Completely offline operation
2. Can directly read the files on your U disk
3. Can process super large G code or PLT file
4. Can pre-check processing documents to prevent writing or design errors in processing documents, and to prevent the placement of materials beyond the processing range
5. With good self-diagnosis ability, it can diagnose various input and output signals and improve the ability of remote maintenance
6. Fully automatic dynamic upgrade
7. The system supports both Chinese and English display
8. You can select line number to process some files
9. Convenient and reliable power failure protection and breakpoint recovery function
10. The acceleration and deceleration in the processing process are more stable, and the mechanical vibration is effectively reduced
11. Support high subdivision to ensure high precision and high speed processing
12. Can directly support linear and circular interpolation

Hardware Resources:
- For TI DSP sports processor
- Four-axis hardware motion core
- Mass storage (128-1G)
- USB host interface (external memory read)
- USB slave interface (system maintenance)
- Independent keyboard interface (expandable to 64 keys)
- 8 inputs and outputs (expandable to 64 in and 64 out)
- D/A output (optional)

Package Included:

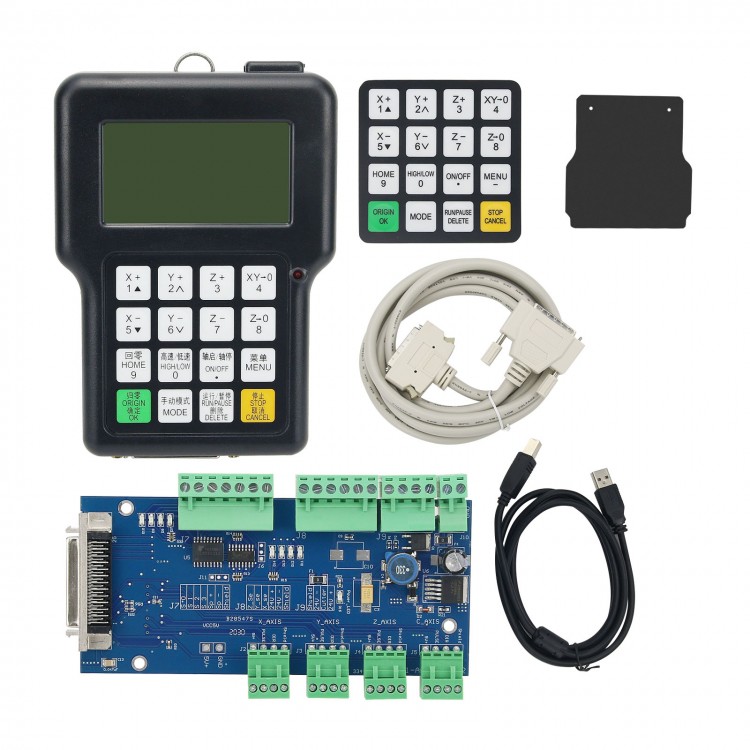

- 1 x Set of Plasma Controller

Precautions:
1. It is strictly prohibited to use this product in a strong interference and strong magnetic field environment;
2. It is strictly prohibited to plug or unplug U disk during operation;
3. Pay attention to waterproof, dustproof and fireproof;
4. Prevent metal and other conductive materials from entering the shell;
5. Unauthorized disassembly is strictly prohibited, and there are no user-repairable parts inside;
6. Use moderate force when plugging and unplugging U disk and other connections;
7. If you don’t use it for a long time, please cut off the power and keep it properly.
