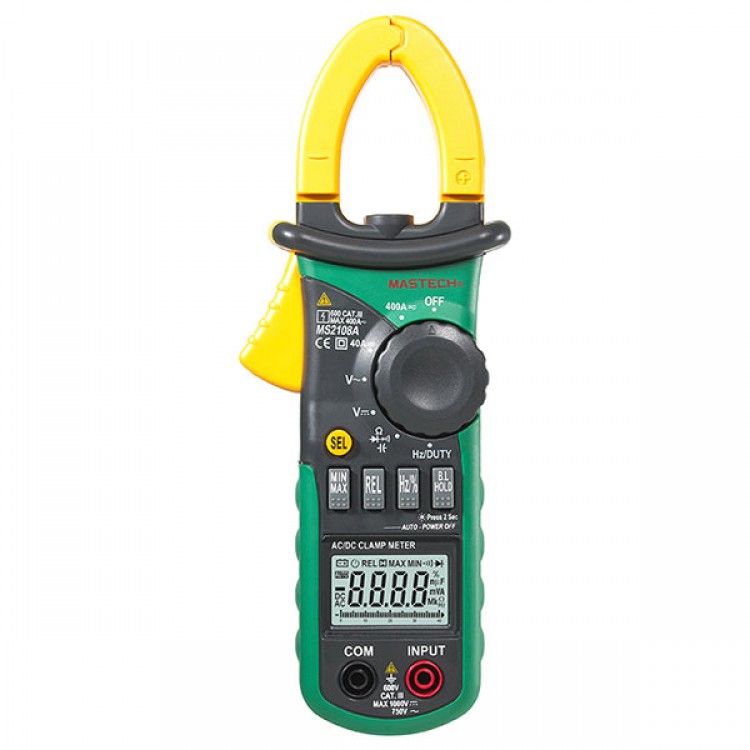

Mastech MS2108A Digital Clamp Multimeter Frequency Max./Min.Value Measurement Holding Lighting Bulb
Features:
- Perform measurements of AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, diode and continuity test.
- Measuring frequency, AC/DC current and duty cycle by clamp.
- LCD with backlight & bar graph and clamp lighting bulb.
- Relative value measurement and auto range function.
- Provided with one excellent cloth bag for conveniently-carrying.
- Data holding, to hold the readings while taking measurement.
- Maximum and minimum value measuring and holding.
- Automatic indication of functions and unit symbols.
- Auto power off and low battery indication.
- Full overload protection and dual insulation protection.
- Over-molding rubber case, shake-proof, skid-proof and good touch-feeling.
Specifications:
- Max. V between terminals & earth: 1000V DC or 750V rms AC
- Operating temperature: 0 to 40 Celsius Degree (32 Fahrenheit to 104 Fahrenheit)
- Storage temperature: -10 to 50 Celsius Degree (10 Fahrenheit to 122 Fahrenheit)
- Operating altitude: Max. 2000 meters (7000 ft.)
- Max. diameter for conductor: Diameter 26mm
- Max. displayed value: 4000 digits
- Auto polarity indication: "-" for negative polarity.
- Over-range indication: "0L" or "-0L"
- Converter rate: 3 times/sec; Bar graph: 30 times/sec
- Auto power off time: 15 minute
- Power supply: 3 * 1.5V AAA battery (not included)
- Multimeter size: 20.8 * 7.8 * 3.5cm / 8.2 * 3.1 * 1.4in
- Multimeter weight: 238g / 8.4oz
- Package size: 23 * 10.5 * 6cm / 9.1 * 4.1 * 2.4in
- Package weight: 469g / 16.5oz
- Measurement specifications (accuracy):
- AC Current 40A/400A ±2.0%
- DC Current 40A/400A ±2.0%
- DC Voltage 400mV ±1.0%
- 4V/40V/400V ±0.7%
- 1000V ±0.8%
- AC Voltage 4V/40V/400V ±0.8%
- 750V ±1.0%
- Frequency By A range (current clamp) 10Hz/1kHz/>1kHz ±1.5%
- By ACV range 10Hz/1kHz/10kHz ±1.5%
- >10kHz Take it only as reference
- By Hz/DUTY range 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz ±0.5%
- Resistance 400Ω/4kΩ/40kΩ/400kΩ/4MΩ ±0.8%
- 40MΩ ±1.2%
- Capacitance 40nF/400nF/4uF/40uF/400uF/4000uF ±4.0%
Package including:
- 1 * Digital Multimeter
- 2 * Test Lead
- 1 * Instruction Manual
