• XDA FPV 5.8G 5.8Ghz 14dBi Panel Antenna for Transmitter RC832 RC805 Receiver Qav250 F450 Quadcopter

XDA FPV 5.8G 5.8Ghz 14dBi Panel Antenna for Transmitter RC832 RC805 Receiver Qav250 F450 Quadcopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.03
  • Price in reward points: 130 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $12.77 $12.51 $12.12 $11.60 Contact US
Quantity:

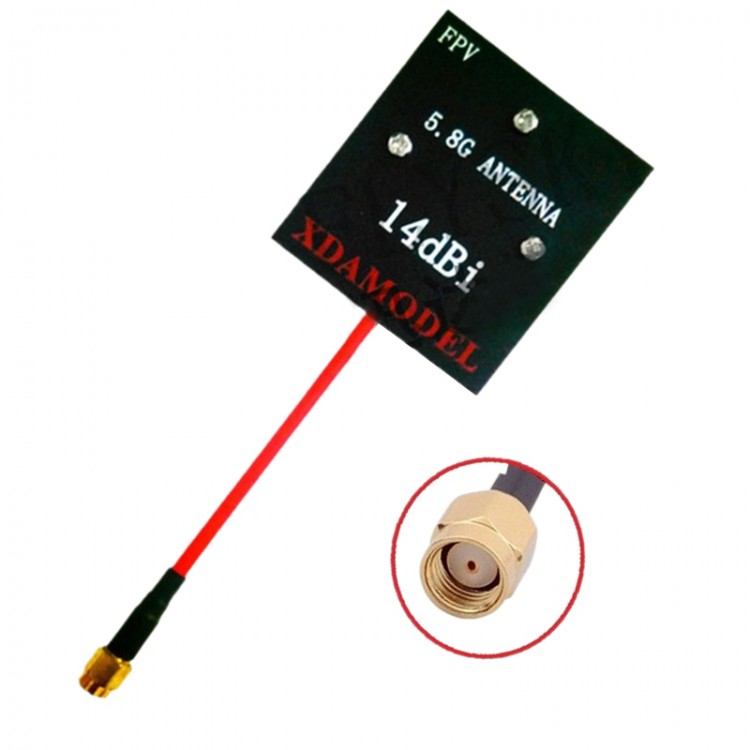

XDA FPV 5.8G 5.8Ghz 14dBi Panel Antenna for Transmitter RC832 RC805 Receiver Qav250 F450 Quadcopter

Description:

- Specially designed for RC FPV, mini size, high gain, low SWR and high self recovery function at any angle.
- Transmitting distance: 15km with 5.8G 1200mw VTX/RX.
- 5km with 5.8G 600mw VTX/RX.
- Frequency: 5600-5950MHz
- Gain-dBi: 14dBi
- 3db vertical beamwidth: 40 degree
- 3db horizontal beamwidth: 35 degree
- Impedance: 50ohm
- Polarization: Vertical
- Sidelobe suppression>=13DB
- VSWR: <=1.5
- Front-to-back ratio: >=25DB
- Maximum power: 50W
- Connector: RP-SMA plug
- DC grounded.
- High self recovery function.

Specifications:

- Item size: 60 * 55 * 9mm
- Total weight: 33.8g / 0.9oz

Package Including:
- 1 PCS 5.8Ghz 14dBi High-Range Panel Antenna (RP-SMA plug)
