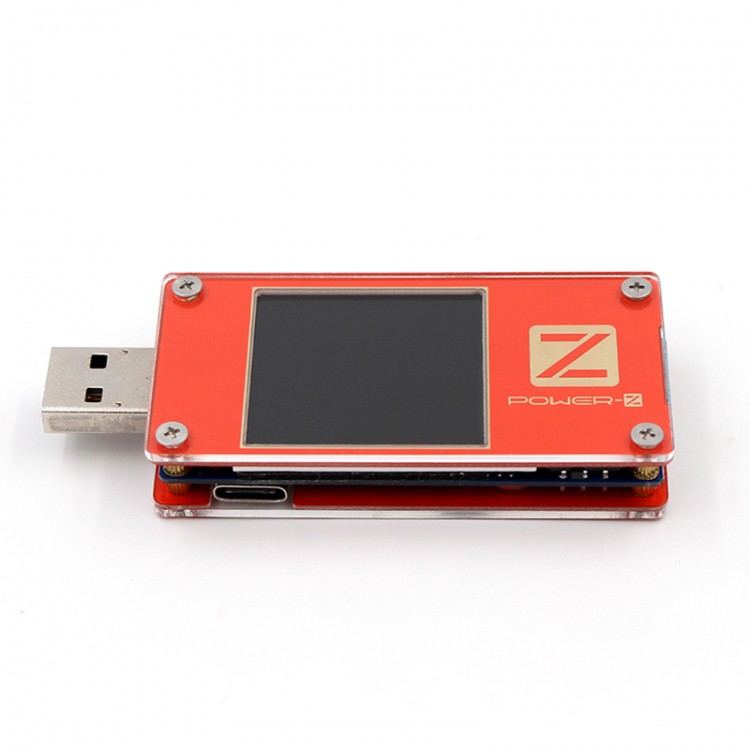

ChargerLAB POWER-Z USB PD Tester MFi Identification PD Decoy Instrument KT001

ChargerLAB POWER-Z USB PD Tester MFi Identification PD Decoy Instrument KT001


Features:
- The POWER-Z KT001 can be used to test all the phone, rechargeable chargers, chargers, and USB PD Type-C notebooks, and the charging voltage and current of the tablet.
- Support QC3.0/QC2.0/AFC/FCP/PD trigger and has the agreement automatic detection function.

Note:
- POWER-Z KT001 can detect the PD protocol devices. You can set the output voltage manually.
- Professional version POWER-Z is also with new function, that can use computer software to collect PD2.0 communication data through the input and output of Type-C. This function is very useful for engineer to develop/measure products.

Specifications:
- Size: 77*35*14mm
- LCD Size: 1.44 inch
- LCD Type: TFT
- Resolution: 128*128
- Color: Red
- Languange: English/Chinese/ japanese
- Interface Type: USB-A/Micro USB/Type-C
- Interface Quantity: 5 (1x HID）
- Interface Impendence: 28m ohm
- Operate Type: Trackwheel
- Independent Power Supply: HID 5V
- Woking Current: 0.4mA/5v
- Voltage Accuracy: 0.0001V
- Current Accuracy: 0.00001A
- Voltage Measuring Range: 4-26V
- Current Measuring Range: 0-6A
- Offline Record Group Number: 350*4 group
- D+/D- Voltage Display: Support
- Screen Rotation: Not Support
- QC2.0/ QC3.0/ AFC /FCP /USB PD/ Trigger: Support
- Type-C Line Resistance Test； support
- MFI Data Line Identification: Auto
- Fast Charge Protocol Automatic Detection: Auto asking
- Apple 2.4A accelerate: support
- Clock/ temperature display: support
- USB Firmware Update: Support

Interface: The POWER-Z KT001 is equipped with five connectors and two keys.

Interface Function:
- To detect the USB-A male and USB-A mother between the two-way current, Type-C input and Type-C output interface between the two-way current and Type-C input to the USB-A mother Of the current.
- USB PD lure switch: the default is off, PD lure when the switch to the "ON" position, after the end of its back to "OFF" position can be.
- Click a button shuttle: the main interface switch, option confirmation;
- Double-click a button shuttle: exit and so on;
- Left key: fast charge trigger, option switch;
- Right: Curve information, options to switch.
