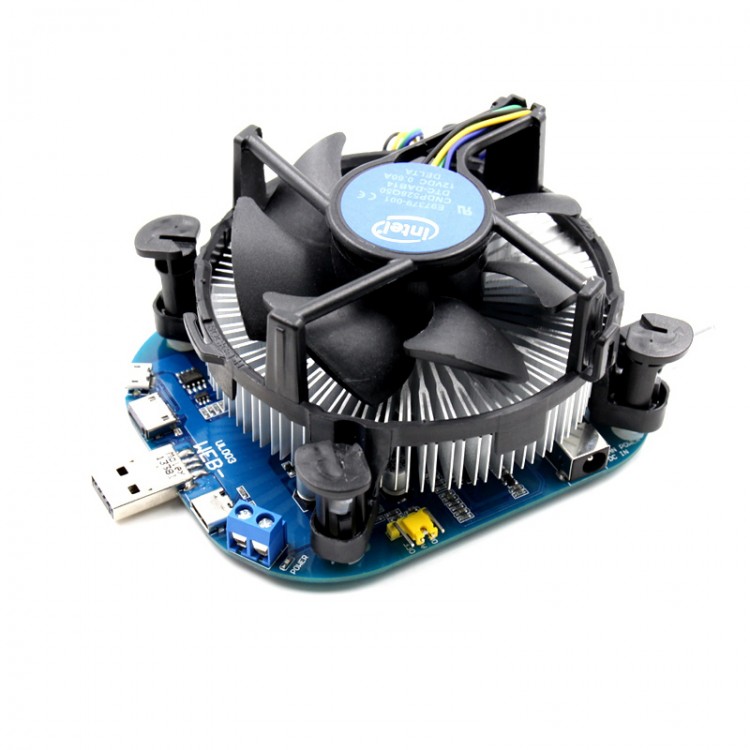

DC 5-20V 100W Constant Current Electronic Load Adjustable USB Aging Discharger Tester Meter

DC 5~20V 100W Constant Current Electronic Load Adjustable USB Aging Discharger Tester Meter

Product details:

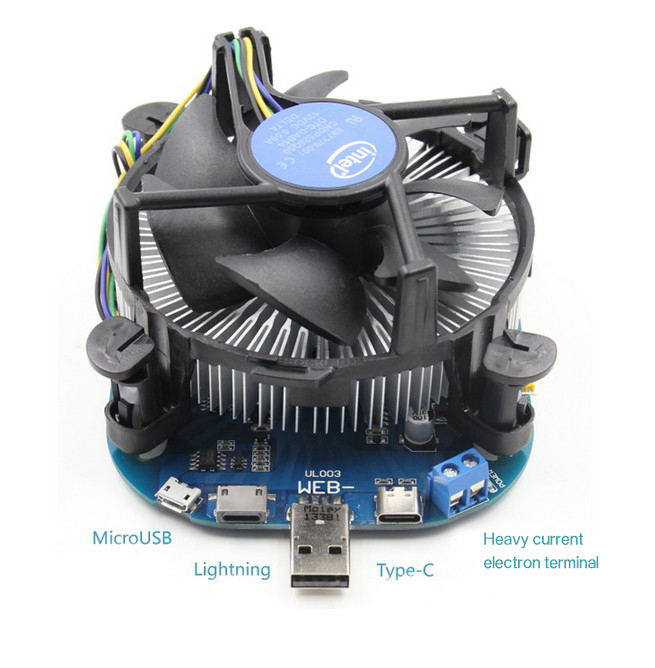

- Constant current electronic load, support 4 different ports to discharge: Micro USB, lightning, type-C, heavy current electron terminal.

- Equipped with a power extension interface for PD 2 DC

- Support external power supply with QC 2.0/3.0 9V or QC 2.0/3.0 12V cable.

- Built-in 1155 fan, brings strong heat dissipation, greatly prevent it from overheating and extend its lifespan.

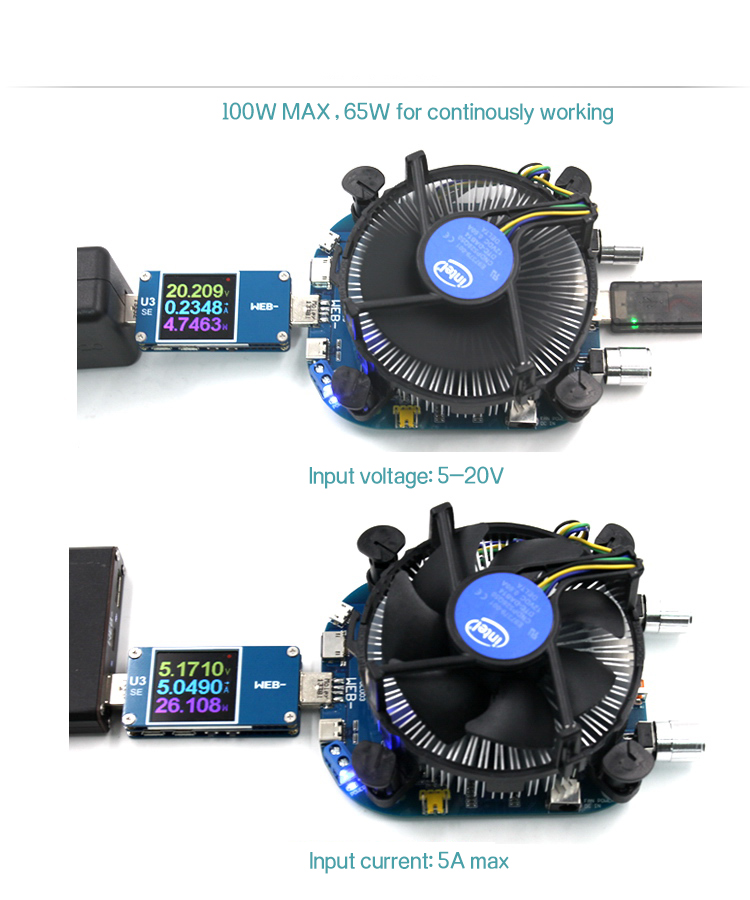

- Discharge power up to 100W, 65W is strongly recommended, load current is up to 5A.

- Support wire jumper function: force off, automatic temperature control, force on

- Support fan external power supply within 5-24V voltage range

Specifications:

- Item Name: Constant Current Adjustable Electronic Load

- Color: As showed

- Material: PCB

- Input Voltage: 5-20V

- Input Current: 5A max

- Power: ,100W max , 65W is strongly recommended

- External Voltage for Fan: 5-24V

- Fan Model: 1155

- Port: 1 x Micro USB (<2.5A), 1 x Lightning (Support iPhone 7 and below, <2.5A), 1 x Type-C, 1 x Heavy current electron terminal, 1 x Type-A

- Gross Weight: 0.3kg

Package Included:

- 1 x Discharger Tester

Notice:

You can replace the fan with 1U 1155 fan in low power, or 1155 fan equipped with bracket and higher power.

Lightning input supports iPhone7 and below models.

Micro USB and Lightning port should not exceed 2.5A while discharging.
