Description:
S-A-A-2 NanoVNA V2 3GHz vector network analyzer is a vector network analyzer that is easy to carry and easy to use based on the design for OwOComm and developed and produced under the LGPL license agreement.

It uses a similar user interface as NanoVNA, but uses a different technical architecture. It does not load initial calibration data when it starts. The calibration data will not be inserted automatically after the user changes the frequency. The calibration data must be recalibrated or recalled after each start and frequency change. Please read the instruction manual carefully before use to avoid damage to the equipment.

For More Information:
VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases
Nanovna-saver: https://github.com/zarath/nanovna-saver/tree/feature/nanovna-v2
User Guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf

Advantages:
- Quality is guaranteed
- Software and hardware have been upgraded, supporting 3GHz
- Provide the most comprehensive technical support
- Software compatible system: For Linux, Windows (7+), Mac OS planned

Product performance:
- Frequency range: 50kHz-3GHz
- System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
- S11 noise floor (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
- Scanning speed: 100 points/sec
- Display: 2.8 inches, 320 x 240
- USB interface: micro USB
- Power supply: USB, maximum charging current 1A
- Battery: 2000mAh lithium ion
- Battery connector: JST-XH 2.54mm
- Maximum scanning point (on the device screen): 201
- Maximum scanning point (USB): 1024
- Port 2 return loss (1.5GHz): 20dB typ
- Port 2 return loss (3GHz): 13dB MIN
- VNA-QT

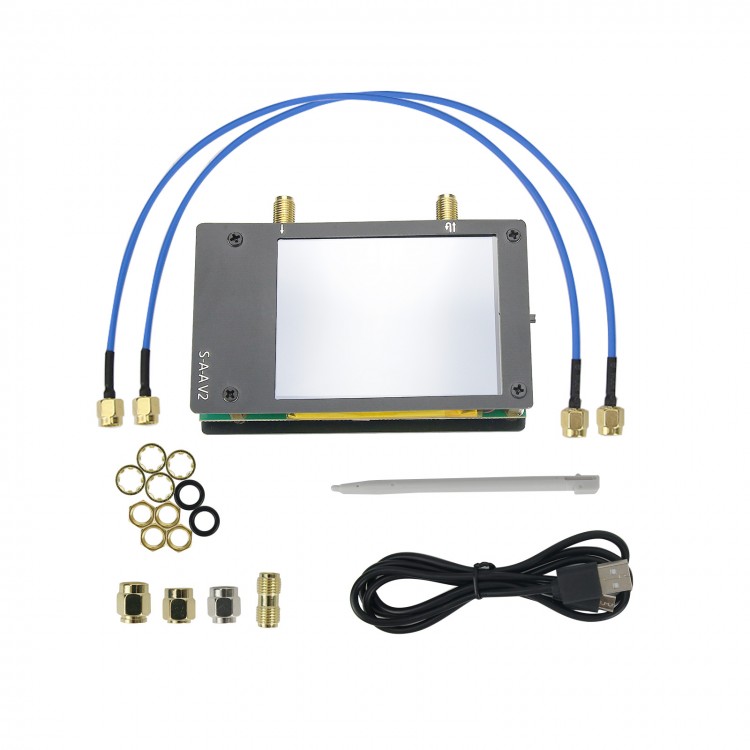

Package Included:
- 1 x S-A-A-2 Host (Built-in 2000mAh Battery)
- 1 x USB Data Cable
- 2 x 30cm SMA Male to Male SS405 RF Cables
- 1 x SMA Simple Calibration Kit OPEN
- 1 x SMA Simple Calibration Kit SHORT
- 1 x SMA Simple Calibration Kit LOAD
- 1 x SMA Female to Female Connector
- 1 x User's Manual
- 1 x Touchscreen Pen
