S-A-A-2 NanoVNA V2 Pro Vector Network Analyzer VNA Antenna Analyzer 50KHz-3GHz For HF VHF UHF

S-A-A-2 NanoVNA V2 Pro Vector Network Analyzer VNA Antenna Analyzer 50KHz-3GHz For HF VHF UHF

Description:
With 3.2" touch screen, this vector network analyzer is suitable for antenna lovers. Made of high-quality materials, practical, easy to operate and us. It boasts long service life.

Features:
1. Use 0.5ppm TCXO: To ensure the frequency accuracy of high-frequency measurement using 0.5ppm TCXO network analyzer.
2. Metal shell: The shell can fully protect the internal precision circuit and fully protects external interface.
3. High-performance calibration kit: The network analyzer is equipped with a high-performance calibration kit to ensure that the calibration SWR is less than 1.03 when it reaches 3GHz.
4. Good amplitude and phase stability: 2 customized high-performance SS405 SMA RF cables provide good amplitude and phase stability.
5. Easy to carry: High-grade plastic outer packaging makes the network analyzer easier to carry and store.

Specifications:
- Frequency range: 50kHz-3GHz
- System dynamic range (calibration): 70dB (up to 1.5GHz), 60dB (up to 3GHz)
- S11 noise level (calibration): -50dB (up to 1.5GHz), -40dB (up to 3GHz)
- Scanning speed: 100 points/sec
- Display: about 3.2 inches (320 * 480)
- USB interface: USB Type-C communication mode: CDC (serial)
- Power supply: USB, maximum charging current 1A
- Battery: 1500mAh lithium ion
- Battery connector: JST-XH 2.0mm
- Maximum scanning point (on the device screen): 201
- Maximum scanning point (USB): 1024
- Port 2 return loss (1.5GHz): 20dBtyp
- Port 2 return loss (3GHz): 13dB MIN
- Product weight: 405g/(14.3oz.av)

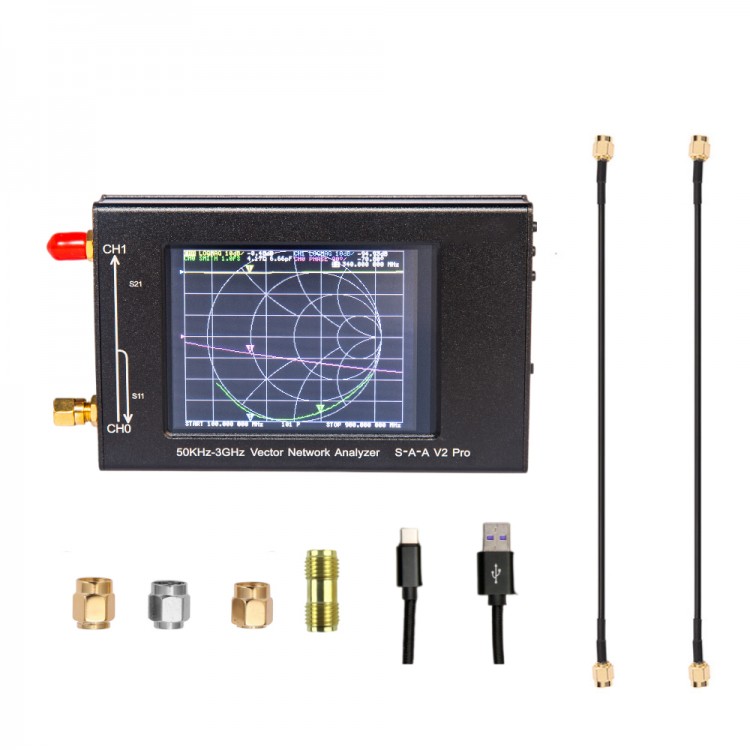

Package Included:
- 1 x Vector Network Analyzer
- 1 x TYPE-C USB Data Cable
- 2 x 200mm SMA Male to Male SS405 RF Cables
- 1 x SMA Simple Calibration Setting Open
- 1 x SMA Simple Calibration Set Short
- 1 x SMA Simple Calibration Kit Load
- 1 x SMA Female to Female Connector
