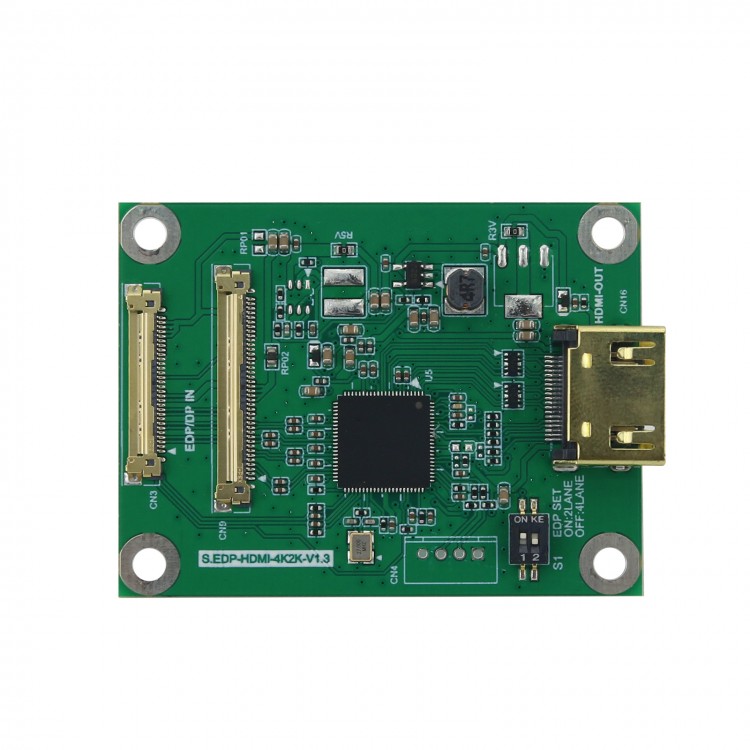

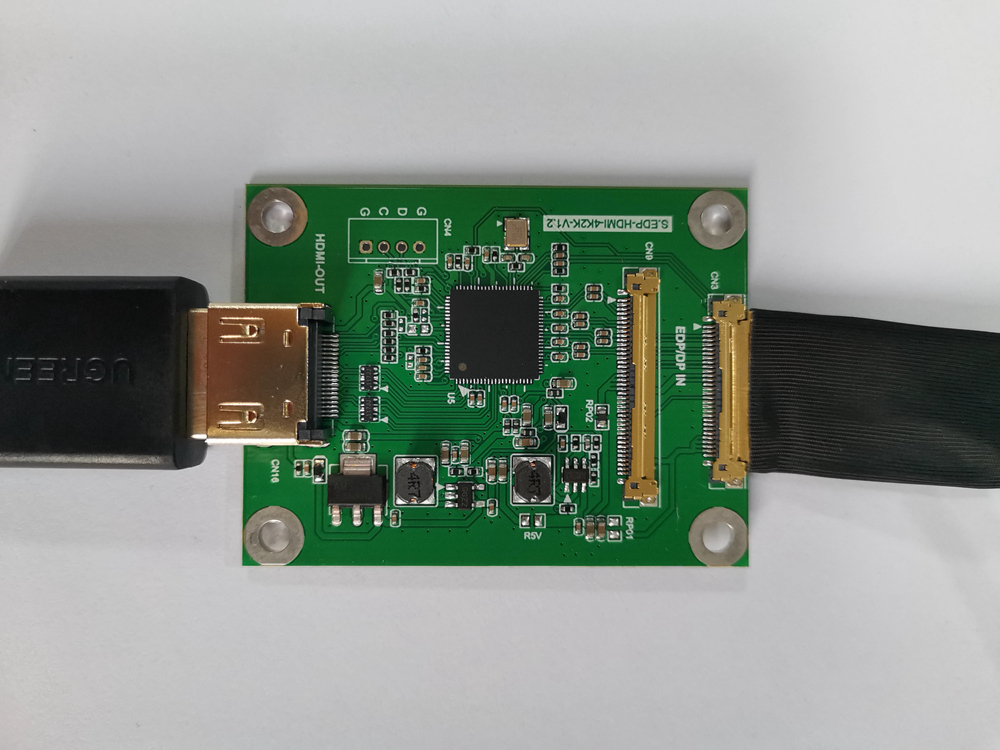

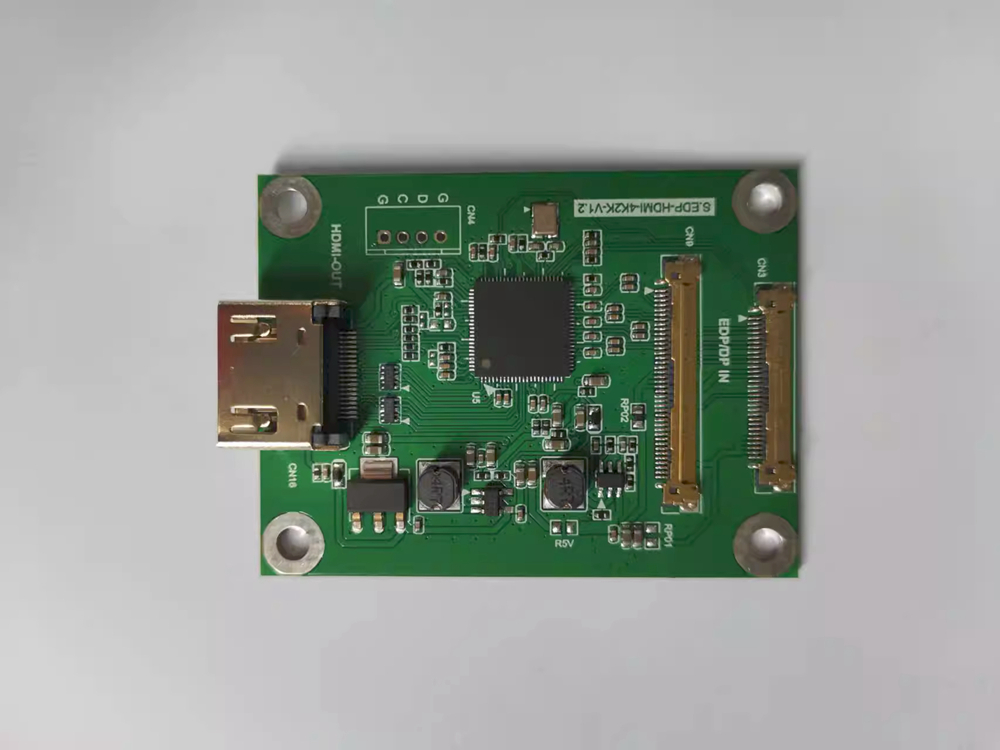

S.EDP-HDMI-4K2K.V1.2 EDP to HDMI Adapter 2LANE Program HDMI Output Supports Resolution below 4K 30Hz
Description:
EDP to HDMI adapter supports a variety of resolutions. The board supports software and hardware customization and development. Please contact customer service if you need technical support.

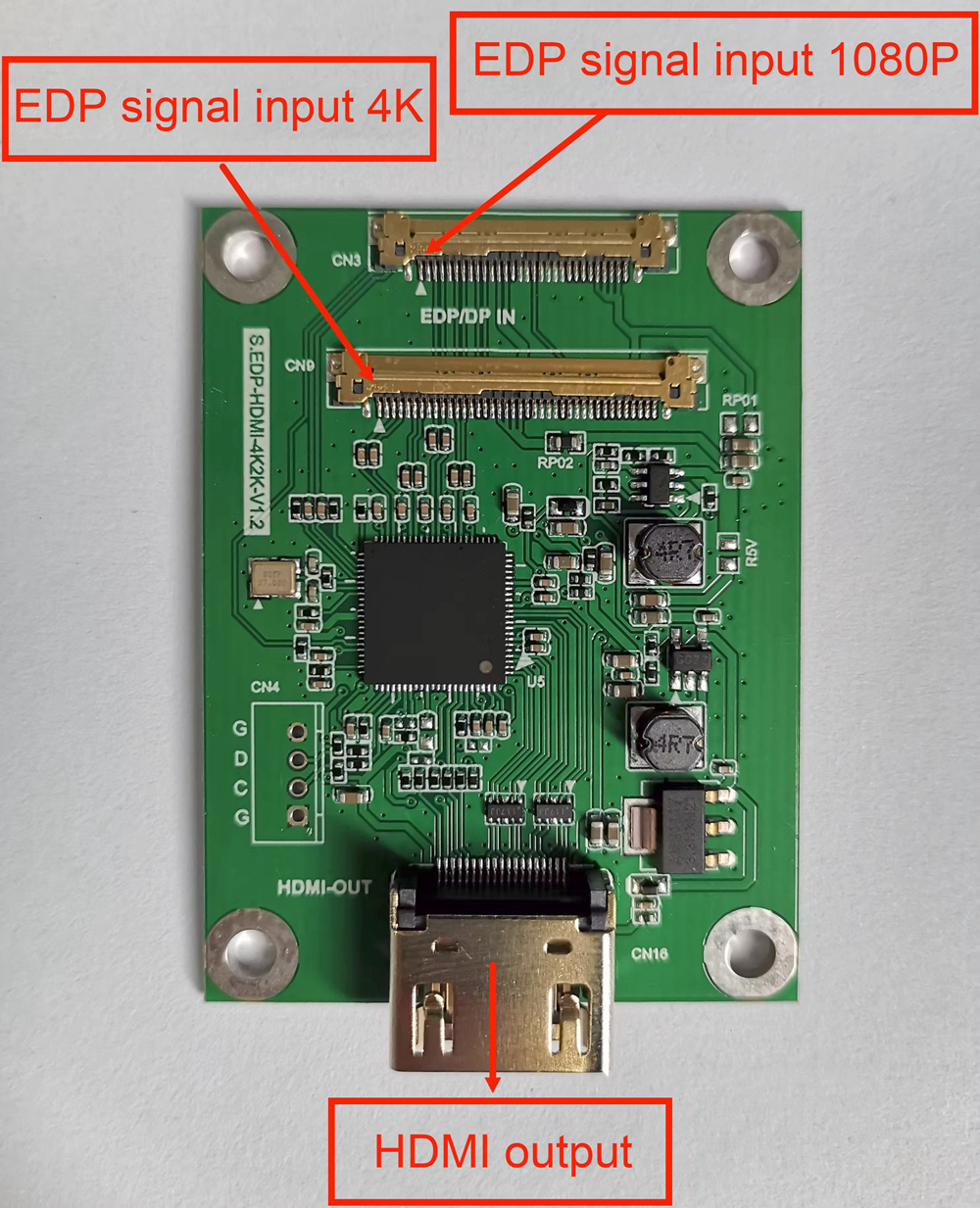

How the adapter board works:
The HDMI output resolution of the EDP to HDMI adapter is to follow the EDP signal output by the motherboard. The adapter board is divided into two programs: One is 2LANE program. And the HDMI output of the adapter board supports common resolutions below 4K 30HZ. The other is 4LANE program. The HDMI output of the adapter board supports the resolution of 4K 30HZ to 4K 60HZ.
Power supply principle of adapter board:
The adapter board is powered by the drive-screen voltage of the EDP interface. By default, the adapter board is required to be powered by 3.3V EDP drive-screen voltage. The adapter board modification hardware can also be powered by a drive-screen voltage of 5-12V.
Package Included:
- 1 x EDP to HDMI adapter board (2LANE program)

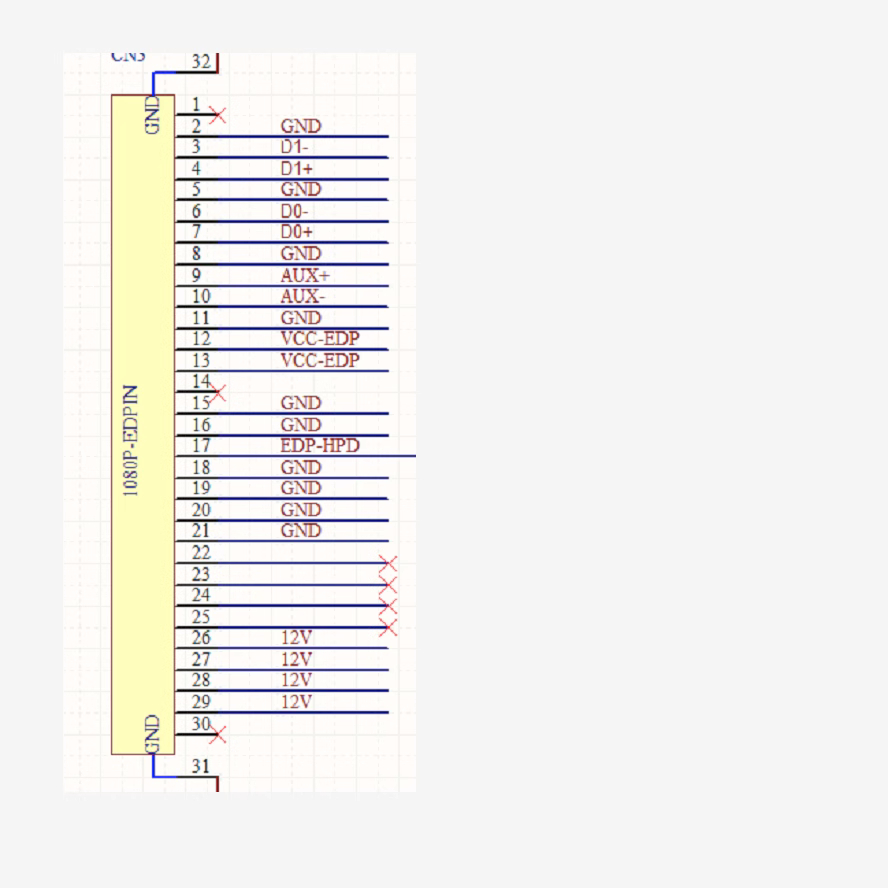

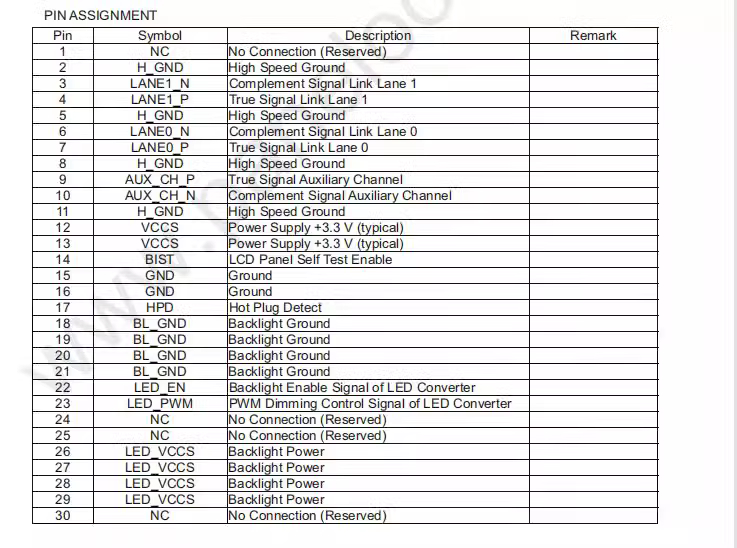

EDP input interface definition:
2LANE 30PIN interface definition. It is the same as the definition of common 1080P screen interface on the market.
