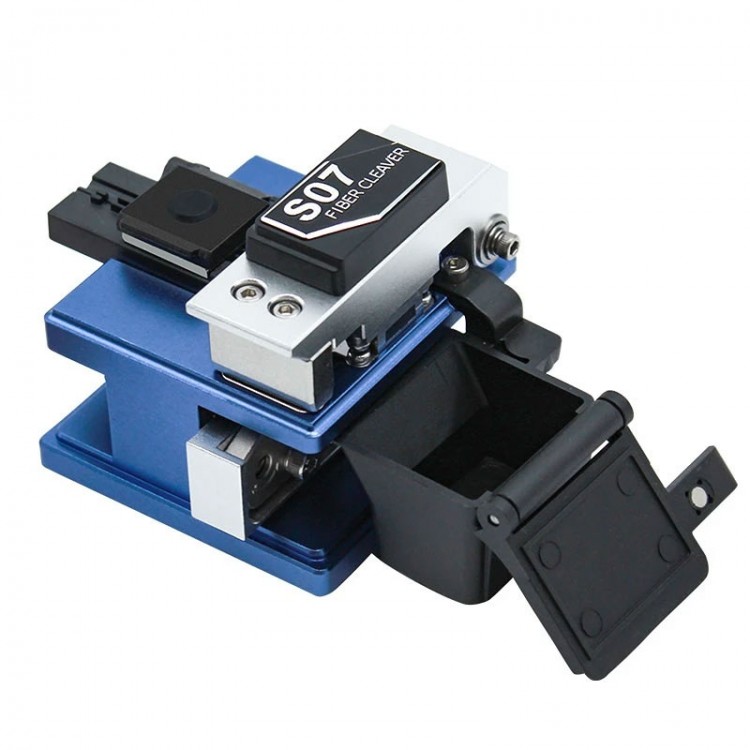

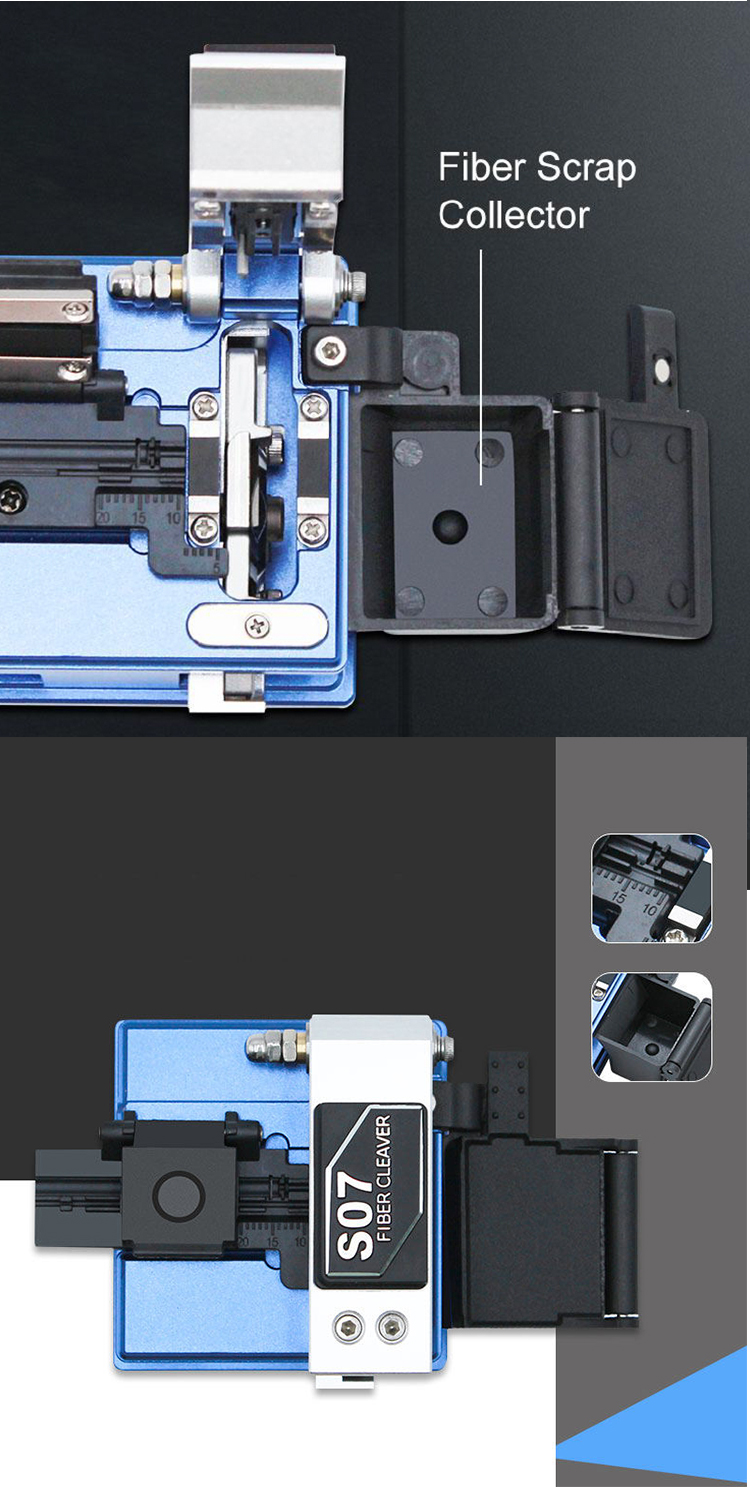

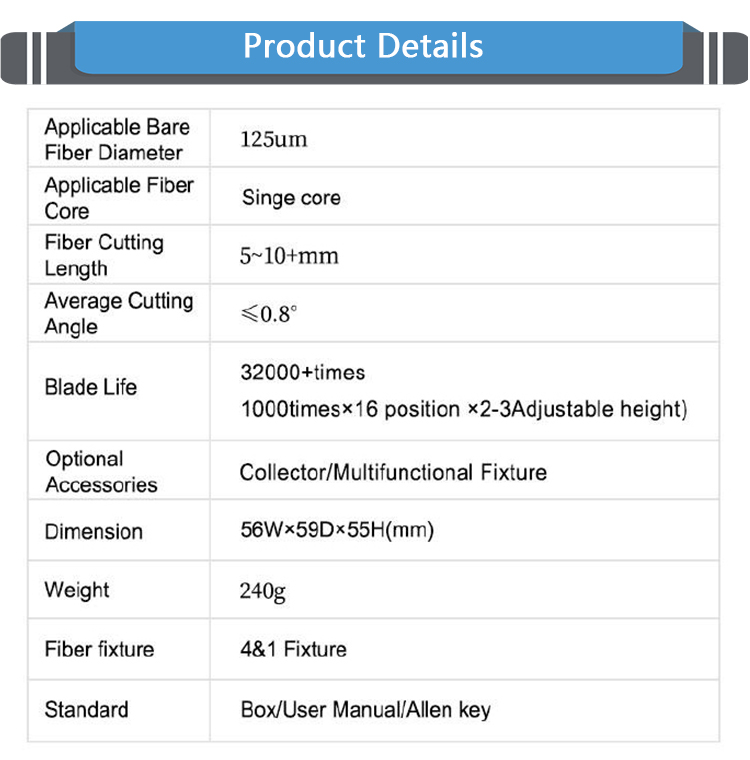

S07 High Precision Fiber Cleaver Automatic Return Fiber Optic Cutter for 125um Single-core Optical Fibers

S07 High Precision Fiber Cleaver Automatic Return Fiber Optic Cutter for 125um Single-core Optical Fibers

Precaution:
- Please store at room temperature, in a dry and clean place.
- Avoid wetting the blade, avoid violent impact, and avoid wiping the fiber optic pad with alcohol.
- Please regularly clean the dirt on the fiberboard with alcohol, and do not use acetone or corrosive solvents to clean the fiberboard.
- The fiber carrying groove should be cleaned regularly to ensure that there is no dust or oil stains inside the groove.

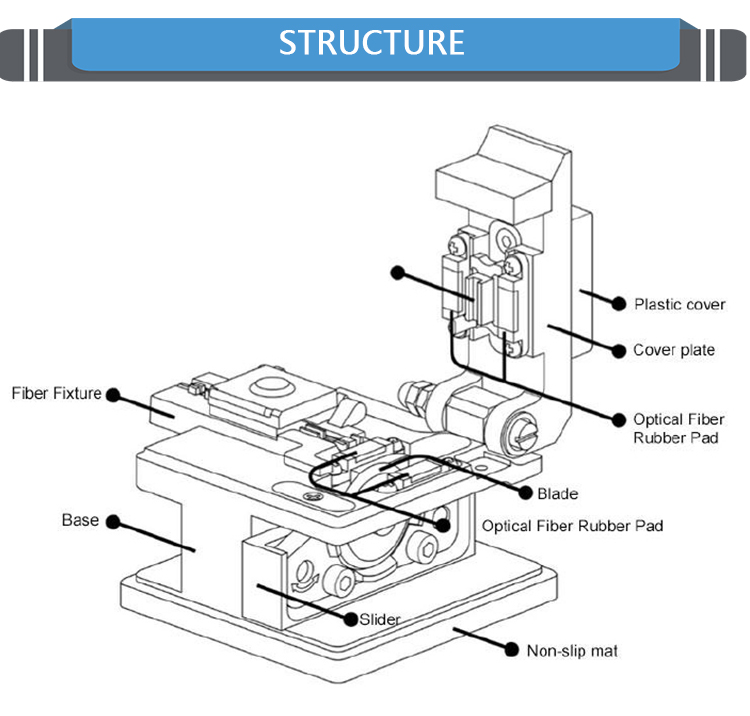

Blade Replacement and Regulation:
Usage tip:

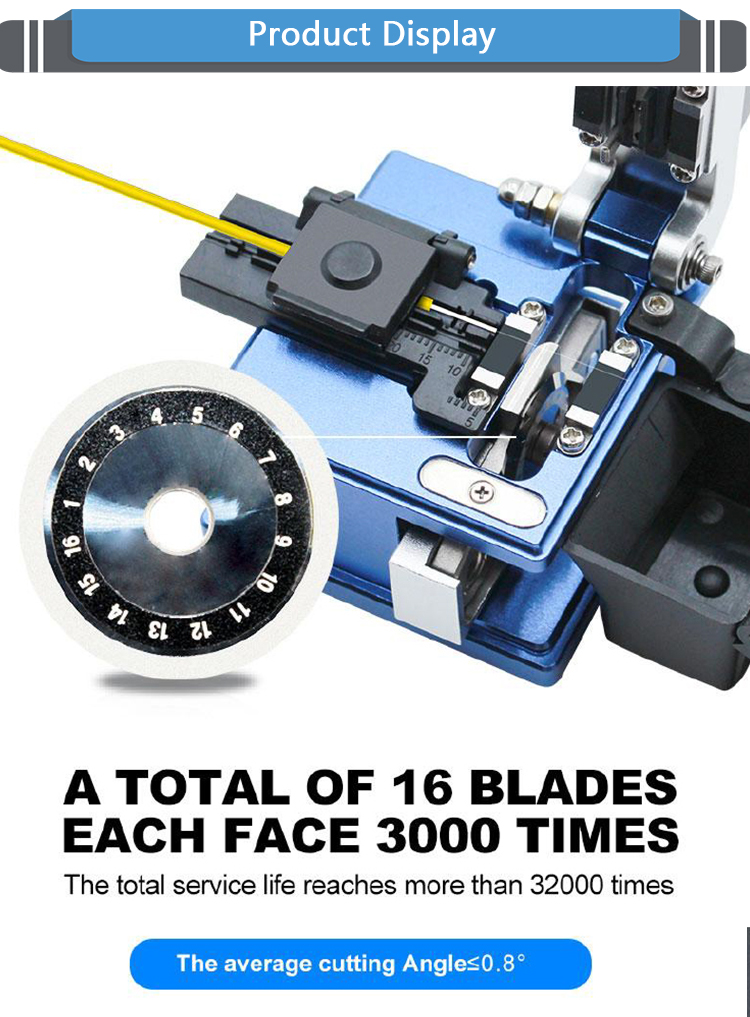

- 1-16 cutting points have been marked on the blade. If the cutting blade cannot be used normally, please clean the blade and fiber optic fixture. If it still cannot be used normally, it means that the cutting point of the cutting blade has been completely worn out and the blade position needs to be adjusted.

Blade face changing method:
- Bring a flat-head screwdriver (not included) and loosen the blade fixing screw.
- Rotate the blade to a new face.
- Tip: Use a cotton swab to rotate the blade counterclockwise according to the scale of the force piece.

Blade height adjustment method:
- Use an Allen wrench to loosen the two bracket fixing screws below the blade.
- Fine tune the eccentric screw, clockwise to raise the blade and counterclockwise to lower the blade height.
- Place the stripped bare fiber in the fixture, close the cover, push the push block back and forth, observe if the cutting blade lightly touches the fiber, adjust to the appropriate position, and fix the screw.

Replace blade:
- Loosen the blade fixing screw, use plastic tweezers to remove the old blade, and replace it with a new one.
- Adjust the blade height according to the blade height adjustment method.

Package Included:
- 1 x Fiber Cleaver
- 1 x User Manual

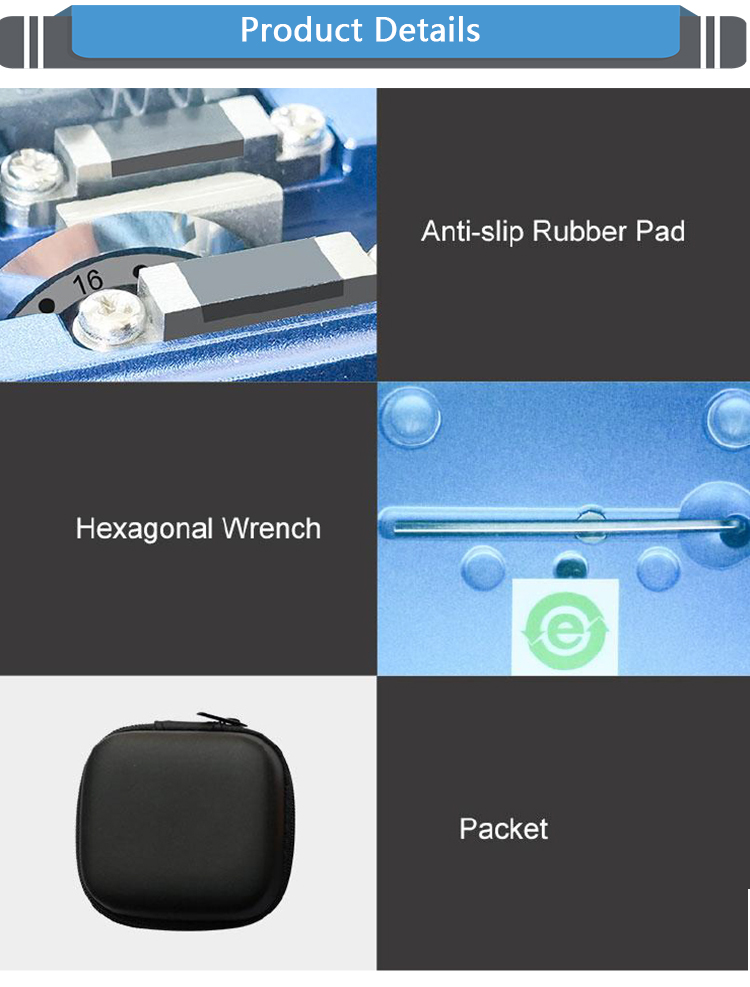

- 1 x Allen Key
- 1 x Anti-slip Rubber Pad
