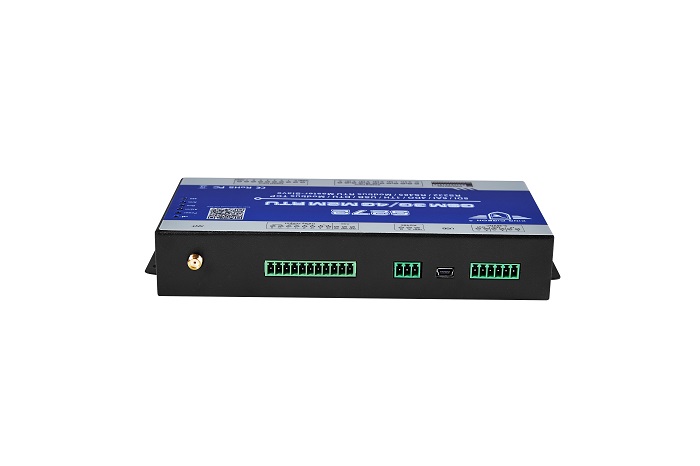

S272 GSM 4G M2M RTU Remote Control Terminal Quadband Built in GSM GPRS Module
Product details:
- ARM® Cortex™-M4 32 Bit RISC Core, RTOS system.
- 4G: TDD-LTE/FDD-LTE Module inside.
- Widely Rated voltage range, 9~36VDC, Inbuilt large capacity rechargeable backup battery.
- Inbuilt TF card to save up to 100000 historical records, USB port for configuration and upgrade firmware.
- 6 analog inputs, 12bits resolution, support 0-5V, 0-20mA, 4-20mA output transducers.
- 4 solid relay outputs, rated capacity is 5A/30VDC, 5A/250VAC.
- 8 digital inputs, compatible to dry contact or wet contact inputs. Logic level: 0~0. 5V or short circuit treated as close, +3~30V or open circuits treated as open. One of the inputs can be used as counter, sampling frequency is 1Khz.
- 1 temperature & humidity sensor input for monitoring onsite environment, the sensor model is AM2301, Measures temperatures from -40-80°C,0.5°C accuracy, Relative Humidity from 0-99RH%, accuracy is 3%.
- 1 RS232 and 1 RS485 serial port for data transparent transmission, e.g.: PLC, ATM, Generator, Meters etc.
- All of the I/O ports with electromagnetic isolation protection.
- 2 IP data centers, supports Modbus TCP, TCP/IP protocol, and transparent transmission over GPRS/ 4G network.
- Automatically resend the data during GPRS communication interrupt or failure, GPRS failure will alert by SMS text to users.
- Supports remotely restart the RTU, and configure, operate it by SMS commands remotely.
- Supports over voltage protection and phase-reversal protection, provide DC power sources for external transducers or sensors to save wiring cost.
- 10 SMS Alert and auto dial numbers for receiving alarm message, can program to receive specified alarm message. The authorized numbers also can dial to open the door or turn on/off machine with a free charge call at the specified time.
Specifications:
- Item name: S272 4G GPRS RTU Remote Controller
- Color: As showed
- 4G: TDD-LTE/FDD-LTE
- DC power supply: Standard adapter DC 12V/1.5A Range 9-36VDC
- Power consumption: Standby 12V/70Ma; Working Max.: 12V/300Ma
- GPRS connectivity: GPRS multi-slot class 10
- GPRS data transmission:
GPRS data downlink transfer: max. 85.6 kbps:
GPRS data uplink transfer: max. 42.8 kbps;
Coding scheme: CS-1, CS-2, CS-3 and CS-4
- TCP/IP stack: TCP, UDP
- SIM interface: Supporting 3V SIM Card (SIM card is not included in the package)
- External antenna: SMA Antenna interface, 50 Ohm
- Alarm Phone Numbers: 10 telephone numbers for SMS Alert and Dial while alarm.
- Serial Interfaces: 1 USB Port, 1 RS232, 1 RS485 with ±15KV ESD Protection.
- Protocols: SMS, GPRS UDP, TCP, Modbus TCP
- Digital Inputs: 8 Digital inputs, dry contact or wet contact. Logic level: 0~0. 5V or short circuit -treated as close, +3~30V or open circuits treated as open. One of the input can be used as -counter, sampling frequency is 1Khz;
- Analog Inputs: 6 analog inputs, 12bits resolution, support 0-5V, 0-20Ma, 4-20Ma output transducers;
- Relay Outputs: 4 Solid Relay outputs, Rated Capacity: 5A/30VDC, 5A/250VAC
- Power Outputs: 2 Ports, for external device (Transducers or detectors or sensors).
- Memory Capacity: Internal TF Card inside, can save 100000 historical events.
- Backup Battery: 3.7V 1200mAH, standby 8-16hours.
- Temperature range: -10°C to 70 °C
- I/O Isolation: Electromagnetic
- Power input/output: Over voltage protection and phase-reversal protection
- Humidity range: Relative humidity: 95% (condensation free)
- Exterior dimension: 202mm*113mm*31mm (external Maximum size)
- Gross Weight: 1kg
GSM 4G M2M RTU can be used as:
A SMS Alarm Controller. The IO activations or deactivations can be reported by SMS and optionally confirmed by phone calls. Each input can have its own message texts and the message can be programmed by users.
A Switch with SMS Remote Control: SMS texts for switching particular terminals on/off or pulse output are configurable.
A Timer-Switch which can be activated automatically. It can be setup when to performs preset logic events, e.g.: timer reports its status, timer switch on/off device or equipments automatically.
An Access Control unit. Up to 10 authorized tel. numbers can be authorized for dial to access control and open the electricity door directly with free charge.
A PLC Automation Control system. Up to 40 programmable logic events can be preset by users. E.g.: Each input alarm or recovery can link to one or more output actions, this is very useful when the temperature up to appointed value, need switch on the air-conditioning immediately, or when water overflow and need switch on the dryer, or when somebody broken into the door or windows need to start the CCTV and Siren.
A SMS reporter. The GSM 4G M2M RTU can setup daily automatically report one or more times of its current status to users automatically.
A Pulse Counter. The digital inputs can be used as the pulse counter, the user can setup both of interval value activated alarm and total value activated alarm.
A Data Logger. The unit can save all of the events or acquisition data in internal memory storage, the historical data can export to CS format via USB port or upload to server by GPRS /4G network according to schedule, no distance limitation.
A Wireless Data Acquisition to SCADA or HMI or Monitoring Center. The unit can acquisition variety data(E.g.: Pressure, Level, Current, Voltage, digital input status, pulse counter, digital relay output status, temperature value, humidity value and other) and upload to the SCADA(supervisory control and data acquisition) or HMI or Monitoring Center by SMS/GPRS/4G, no distance limitation.
A GPRS/4G DTU. The Unit can be used as GPRS/GSM Data transfer unit for data transparent transmission. Plus the I/O port, so it can be used as data transfer unit and SMS Alarm Controller.

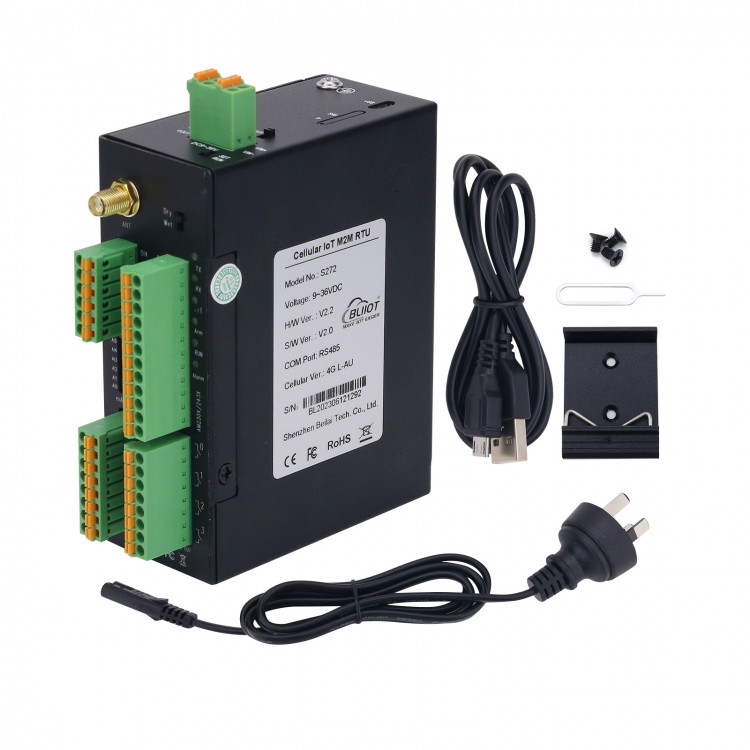

Package Included:
- 1 x RTU
- 1 x 4G Antenna
- 1 x Adaptor
- 1 x Android APP
- 1 x PC Configuration Software
- 1 x USB cable
- 1 x User Manual
- 1 x Built-in Backup battery
- 5 x Terminals for Connection
- 1 x Package Box
Notice:
- SIM Card and Temperature + Humidity sensor AM2301 are not included in the package.
- This is 4G version, please check the adaptor (Such as EU plug, US plug) model before ordering.
