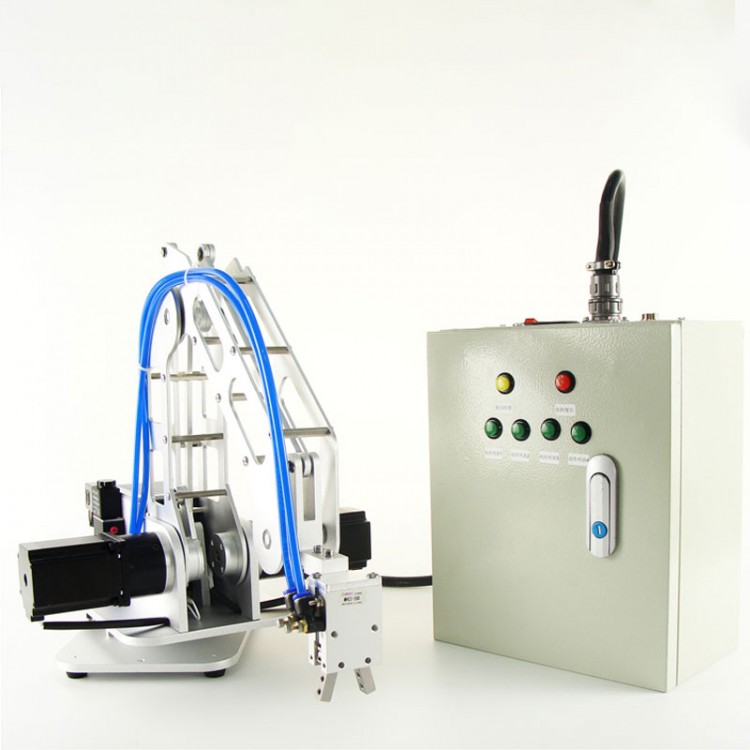

S580 3-Axis Robot Arm Industrial Robotic Arm Assembled Load Capacity 4KG With Pneumatic Claw

S580 3-Axis Robot Arm Industrial Robotic Arm Assembled Load Capacity 4KG With Pneumatic Claw

Features:
- Support WiFi control: Control the arm via mobile phone APP. After connecting to WiFi, open App for MC.EbotB (App only for Android mobile phones)
- 3pcs 57 gear motors: 1:20 ratio; accuracy 0.3mm
- Clamping or sucking: Using claw or suction cup accessories, the mechanical arm can move small objects. Through custom actions, you can perform auxiliary work in specific scenarios
- Aluminum alloy frame with oxidation treatment and premium bearings
- Super long arm 580mm
- Max. Load capacity up to 4kg
- Fast to edit programs
- Easy operation

Specifications:
- Number of Axis: 3-Axis
- Load Capacity: 2.5-4.0 kg
- Maximum Extension Distance: 580mm
- Repeat Positioning Accuracy: 0.3mm
- Communications Interface: WiFi
- Power Supply Voltage: 100-240V, 50/60HZ
- Power Supply Input: 24V/20A DC
- Power: 500W Max.
- Working Temperature: -10℃ to 60℃
- Gear Motors: 57 Gear Motor
- Deceleration Ratio: 1:20
- Backspace: ≤15 arc minute

Axes' Parameters:
- Axis Motion Parameter: 0° to +85°, Max. 320°/s (at 250g)
- Base Motion Range: -10° to +95°, Max. 320°/s (at 250g)
- Arm Motion Range: +90° to -90°, Max. 480°/s (at 250g)
- Axis Rotation Range: +90°to -90°, Max. 480°/s (at 250g)

Physical Characteristics:
- Net weight (arm + controller box): 10KG
- Base Size: 220 x 168mm
- Material: Aluminum Alloy
- Controller: For Android Mobile Phones or Tablet PC
- Fixing Way: Base Fixing Holes

APP Program:
- Software: For APK
- I/O Expansion Ports:
* 4-Way I/O Output, 2-Way MOS Drive, 2-Way Relay Nodes
* 4-Way I/O Input: to trigger four groups of stored actions
* 2-Way Servo Port: to control 5V small analog motor
* To store four groups of actions, of each group there are up to 254 nodes

Claw:
- Opening: 27.5mm
- Drive mode: Pneumatic
- Strength: 8N

Package Included:
- 1 x Robot Arm Full Kit

Attention:
- It is assembled and ready to use.
- 3pcs geared motors are included.
- Mobile phone APP operation supports for Android.
- 57 geared motors with 1:20 reduction ratio.
- The limit load is 4KG. As there may be inevitable inertia during operation, it is recommended that the load be as small as possible.
- At present, suction or grasping and lowering can be performed by pneumatic suction cups, pneumatic claw, and electric claw. Different versions may come with different effectors.
- Equipped with infrared sensor. The principle is to block, release, and block to trigger the automatic cycle of the robotic arm.
- No source code, detailed drawings or schematics are provided.
- Does not support secondary development.
- Users need to prepare a gas source (air compressor) and an phone for Android or tablet computer.
- The product will undergo a functional test before leaving the factory. Some accessories may have slightly used traces. This is a normal phenomenon and does not affect the normal use of the product. Please make sure that you don't mind before purchasing.
