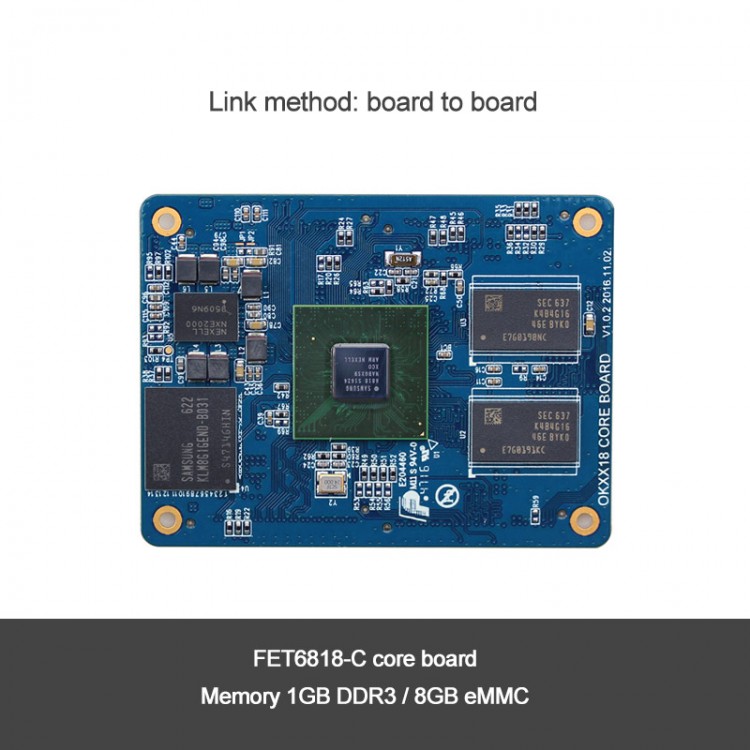

S5P6818 Processor Core Board Module Development Board for Samsung A53 Android FET6818-C 8GB eMMC 1GB
Specifications:
Name: FET6818-C Core Board
Configuration: 1GB DDR3, 8GB eMMC
Operating Temperature Range: 0° C to +70 ° C
Features:
-Small and thin, with random design. The core board size is 60mm * 45mm, with 8-layer PCB immersion gold process. Using four ultra-thin board-to-board connectors with a combined height of only 2mm, the industry's exclusive anti-reverse insertion design effectively prevents misoperation. The core board reserves four 2.0mm fixing holes, making the vibration environment more reliable.
-Rich bus interface, expansion is more flexible. The number of pins on the core board is 320PIN, which leads all the CPU functions, supports 6 UART, 3 IIC, 3 SPI, 2 SD / MMC / SDIO, 3 IIS, 1 Gigabit Ethernet port, 16-bit data bus 14 Bit address bus.
-The powerful multimedia performance makes the display unique. Support 3D graphics hardware acceleration, 1080P video hardware encoding and decoding. Support RGB, LVDS, MIPI, HDMI and other display interfaces, the highest resolution can reach 2048 * 1280.
-Support dual screen, dual camera, open a new horizon. The core board supports the dual-screen different display, dual-screen simultaneous display, and picture-in-picture functions of various display interface screens. Support DVP, MIPI dual-channel camera, easy image acquisition.
-One-click SD card programming, OTA remote upgrade, production and maintenance are more convenient. The core board supports SD card system one-key programming, OTG programming, and supports OTA system remote upgrade.
-Lithium battery charge and discharge management system. The core board comes with a power management system that supports lithium battery charge and discharge management. Users do not need to redesign this part when designing the backplane. And support dynamic frequency modulation, product power consumption is lower.
-It is widely used in the fields of multimedia, medical treatment, digital signage, security, vehicle, finance, education, electric power, communication, clear energy home, consumer electronics, handheld devices, display control, etc.
Perfect system support. FET6818-C core board supports multiple operating systems, Android5.1, Linux34.39, QT5.6, QT4.8.6.
Package Included:
1 x FET6818-C 1GB Core Board
