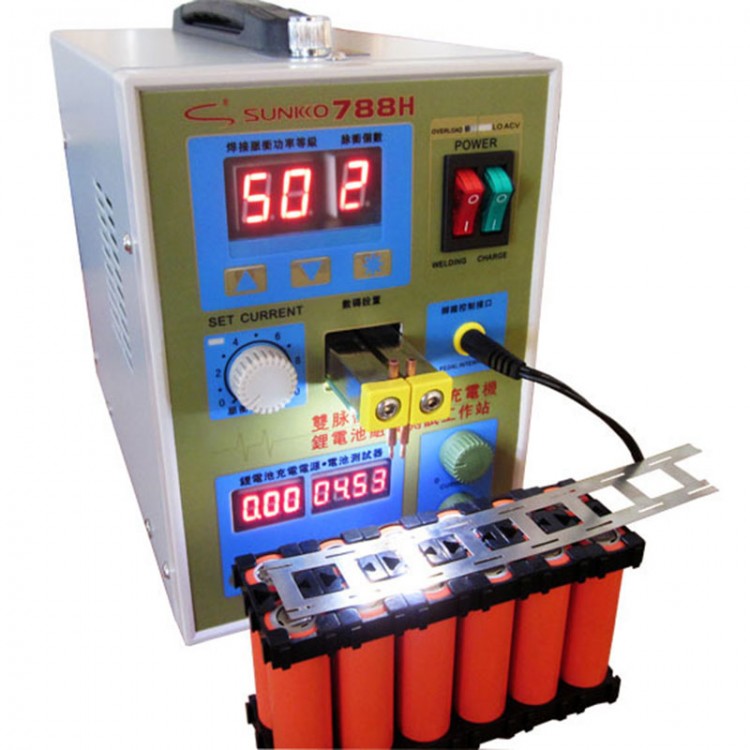

S788H LED Dual Pulse Spot Welder 110V 18650 Battery Charger 800A 0.1mm to 0.2mm

Availability: In stock, usually dispatched in 1 business day

  • Price:$191.99
  • Price in reward points: 1920 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $188.15 $184.31 $178.55 $170.87 Contact US
Quantity:

S788H LED Dual Pulse Spot Welder 110V 18650 Battery Charger 800A 0.1mm to 0.2mm

Features:

- Double-pulse micro-computer spot welding and battery charger;
- Micro-computer control up to level 199 (99*1, 99*2), precision parameter setting;
- One or two pulse welding mood selectable;
- Has the fast setting knob of pulse serial (16 pulse), suitable for the welding of thicker material;
- Has adjustable charger (4.2 - 36 V, 0 - 3 A), convenient for the charging and test of battery;
- The specific battery tester can test the float charge voltage, therefore, you can get the internal resistance by selecting the appropriate charging current.
- It have foot switch and pressure adjuster, which improves the accuracy of welding.

Specifications:
- Model: 788H
- Power Supply :110 V, 50 Hz
- Primary Current: 2 - 15 A
- Welding Current: 50 - 800 A (The corresponding pulse time: 1 ms - 19 ms)
- Charging Voltage: 4.2 - 36 V (Adjustable)
- Charging Current: 0 - 3 A (Adjustable)
- Applicable Welding Thickness: 0.1 - 0.2 mm;
- For pure nickel strip:  0.1 - 0.15 mm
- Electric leakage Switch Requirement: 60 A or more than 60 A
- Weight: 4.3 kg
- Dimensions: 140 x 245 x 200 mm

Tips:
- Rated current of tripping device of the leakage protection switch should be up to 60A.
- For the requirement for electric leakage switch is more than 60 A, it is not recommended to use at home.
