SA5 100K-5.3GHz Handheld Spectrum Analyzer Signal Generator w/ 4" IPS LCD (with 32G Memory Card)

Availability: In stock, usually dispatched in 1 business day

  • Price:$129.49
  • Price in reward points: 1295 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $126.90 $124.31 $120.43 $115.25 Contact US
Quantity:

SA5 100K-5.3GHz Handheld Spectrum Analyzer Signal Generator w/ 4" IPS LCD (with 32G Memory Card)

Description:

SA5 is a compact spectrum analyzer and a signal generator. It is designed with a 4" IPS LCD and a built-in 5000mAh battery. It can be connected to your PC.

Features:
- 2-in-1: SA5 is a compact spectrum analyzer and a signal generator, with several impressive features.
- Spectrum Analyzer: 0.1-800MHz for normal mode. With Ultra mode turned on, it provides level-calibrated signal frequencies up to 5.3GHz and you can observe signal frequencies up to 12GHz.
- Signal Generator: Used as a signal generator, the SA5 can output a sine wave from 0.1 to 800MHz, a square wave up to 4.4GHz or an RF test signal up to 5.3GHz.
- Switchable Resolution Bandpass Filter: The resolution bandpass filter ranges from 200Hz to 850KHz.
- Optional LNA: Built-in 20dB low noise amplifier (LNA).
- Spectrum Display: It can display up to 450 points and display 4 independently configurable curves.
- Storage: Micro SD card slot is for storing measurement data, settings and screenshots.
- Input Attenuator: The step attenuator is adjustable from 0dB to 31dB (it cannot be used at the same time as LNA).
- Calibration: Built-in calibration signal generator for automatic self-test and input calibration.
- PC Connection: The SA5 can be used as a PC-controlled spectrum analyzer or a signal generator, connected by using a USB cable.
- Upgraded Battery Life: The spectrum analyzer has a built-in 5000mAh rechargeable battery. It can be used for 10 hours. It can be charged via a type-c charging cable, so there is no need for frequent charging.
- Maximum Input Level: +10dBm. Make sure this value is not exceeded to avoid damage.
- Easy Operation: A 4-inch HD IPS LCD display and a knob make it easier to operate, more sensitive to touch, and more accurate to help you read data quickly.

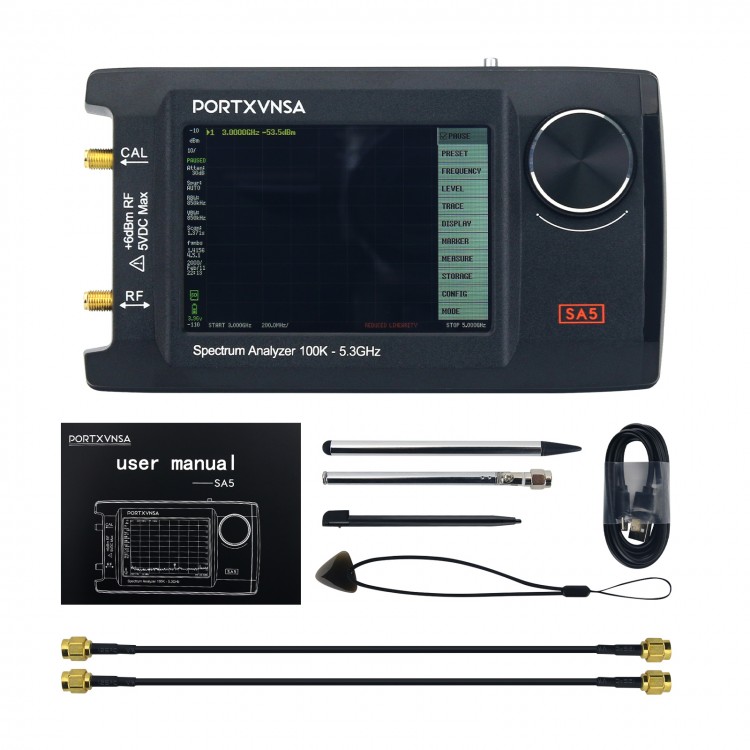

Package Included:
- 1 x Main unit
- 1 x USB type-c data cable
- 2 x 30cm/11.8" RG405 SMAJB2/SMAJB2 RF cables
- 1 x SMA-SMA connector
- 1 x Antenna with SMA connector
- 1 x Pick with lanyard
- 1 x Stylus
- 1 x User manual
- 1 x 32G memory card (inserted into the main unit)

Packaging Details:
- Weight: 0.6kg
- Packaging size: 25.5*15.5*5.5cm
