SA6000B 2-IN-1 Handheld Spectrum Analyzer Signal Generator RF Power Detector with 800MHz-6GHz High Frequency Antenna

Availability: In stock, usually dispatched in 1 business day

  • Price:$182.51
  • Price in reward points: 1825 Reward Points: 18
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $178.86 $175.21 $169.73 $162.43 Contact US
Quantity:

SA6000B 2-IN-1 Handheld Spectrum Analyzer Signal Generator RF Power Detector with 800MHz-6GHz High Frequency Antenna

Features:

- 6G portable spectrum analyzer and signal source in one
- High precision, high sensitivity and low error
- Frequency range: 30MHz-60000MHz; frequency accuracy: 0.01MHz
- Power accuracy: 0.01dbm
- Frequency error: ±0.5ppm
- Internal attenuator: 0-30dB (adjustable)

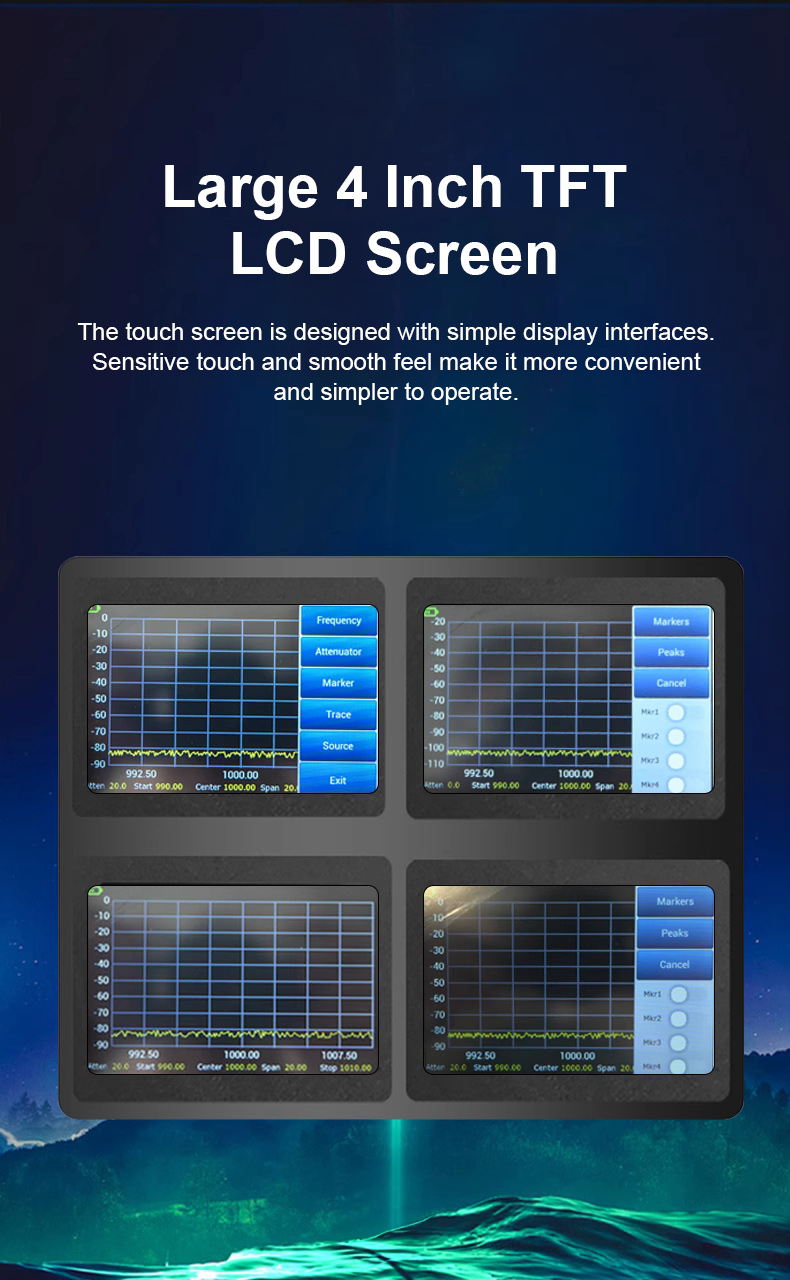

- 4" TFT LCD screen: The touch screen is designed with simple display interfaces. Sensitive touch and smooth feel make it more convenient and simpler to operate
- Versatile device: It can detect signals and can also emit sine wave signals. It can be used in radio wave measurement and transmission and wireless communication fields, including WIFI, Bluetooth, GPS, cellular, short-range wireless communication and radar
- Application: SA6000B can be applied to information and communication measurement, industrial metal material detection, medical pulse signal detection, laser signal detection, military radar and navigation signal detection, etc.

Specifications:
Spectrum Analyzer:
- Frequency range: 30MHz-6000MHz
- Maximum frequency span: 6200MHz
- Frequency accuracy: 0.01MHz
- Power accuracy: 0.01dBm
- Frequency stability: 0.5ppm
- Sweep frequency: 0-6000MHz
- Sweep bandwidth: 100KHz, 250KHz
- Internal attenuator: 0-30dB
- Wave impedance: 50Ω
- Noise floor: <-100dBc
- Maximum input power: 10dBm
- Maximum input DC voltage: 25V
- 4-way Marker or Peak marker: Support peak tracking
- Sweep mode: Signal acquisition and monitoring in 30MHz-6000Mhz band
- Hold Mode: Maximum hold and average hold are supported

Signal Source:

- Frequency range: 23.5MHz-6000MHz
- Power ranges: -4dBm, -1dBm, 2dBm and 5dBm
- Frequency accuracy: 0.01MHz
- Frequency stability: 0.5ppm
- Power stability: < 0.5dBm
- Wave impedance: 50Ω
- Noise floor: < -90dBc

General Parameters:
- Display: 4-inch TFT LCD touch screen

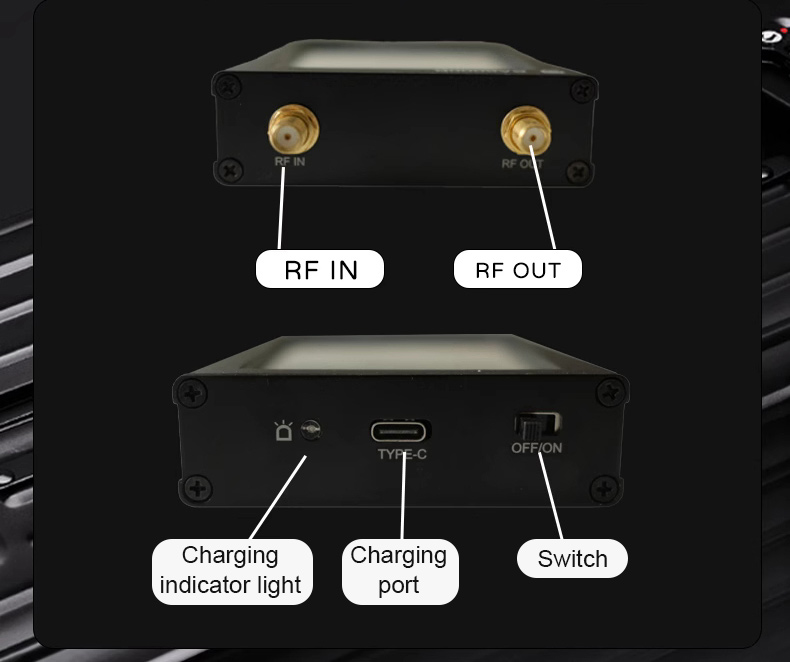

- Input/output: SMA connector (Inner hole)
- Power supply interface: Type-C
- Charging voltage: DC-5V
- Battery capacity: 3000mAh
- Battery life: >4 hours
- Charging time: < 3 hours
- Product dimensions: 100 x 73 x 22mm/3.9 x 2.9 x 0.9"

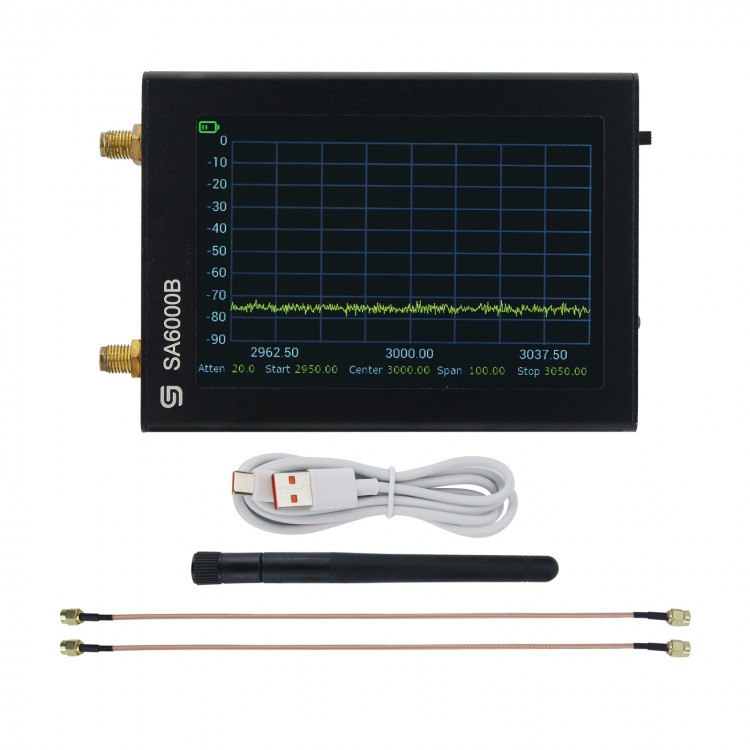

Package Included:

- 1 x SA6000B
- 1 x Type-c Charging Cable
- 1 x Antenna
- 1 x RF Cable
