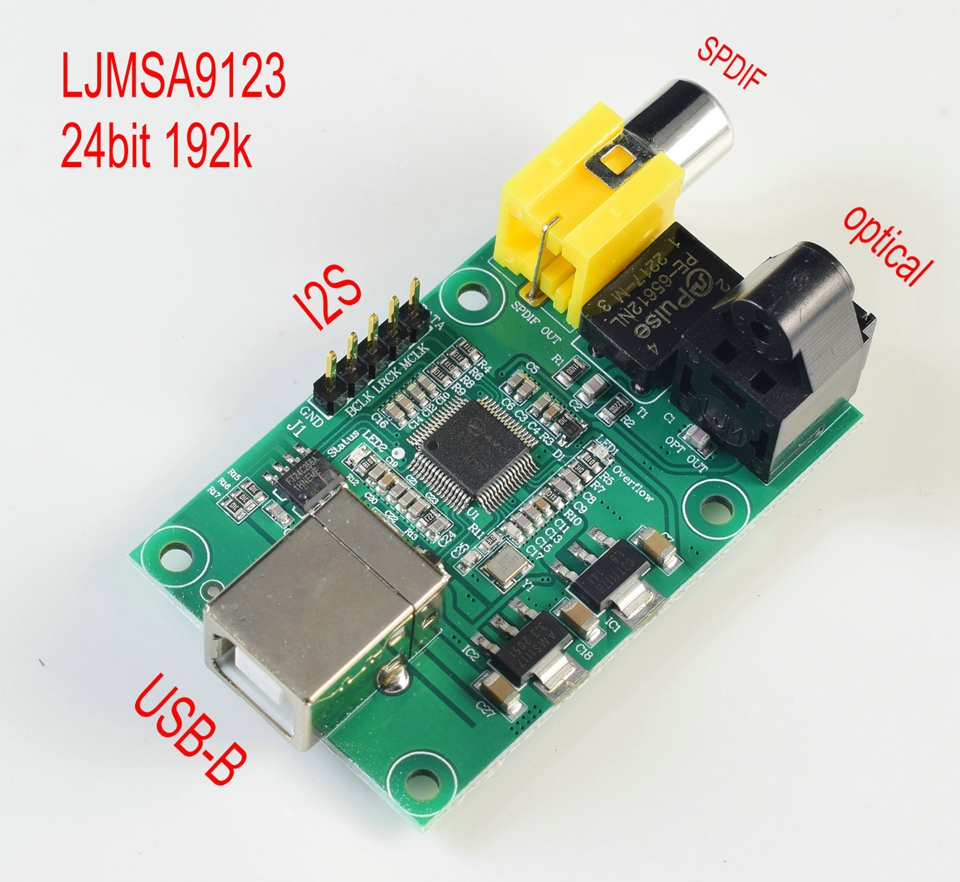

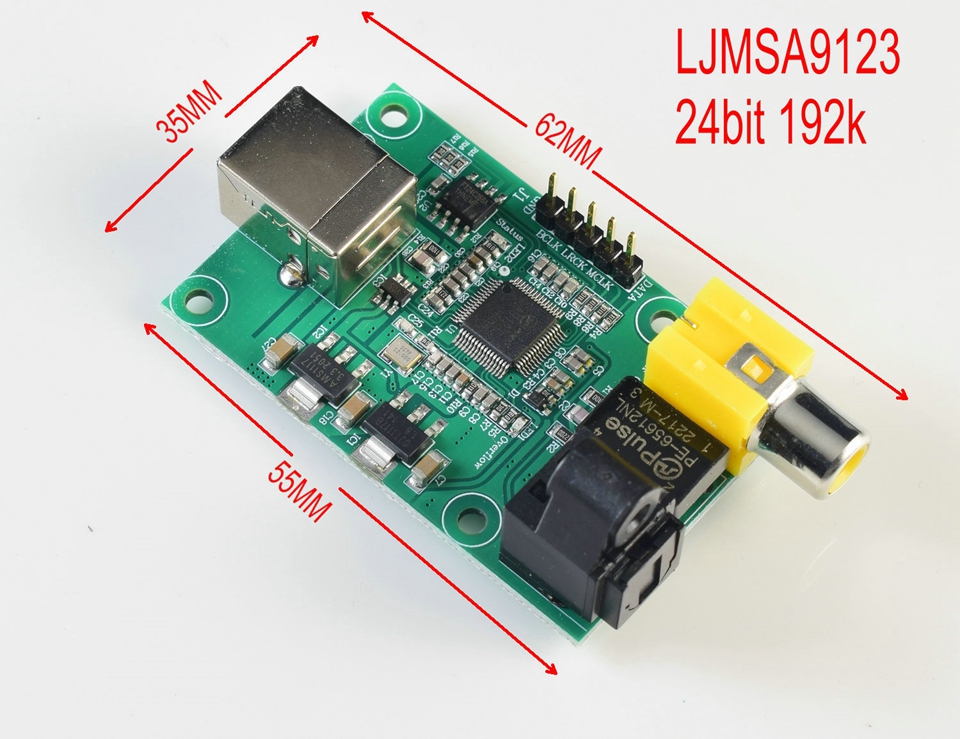

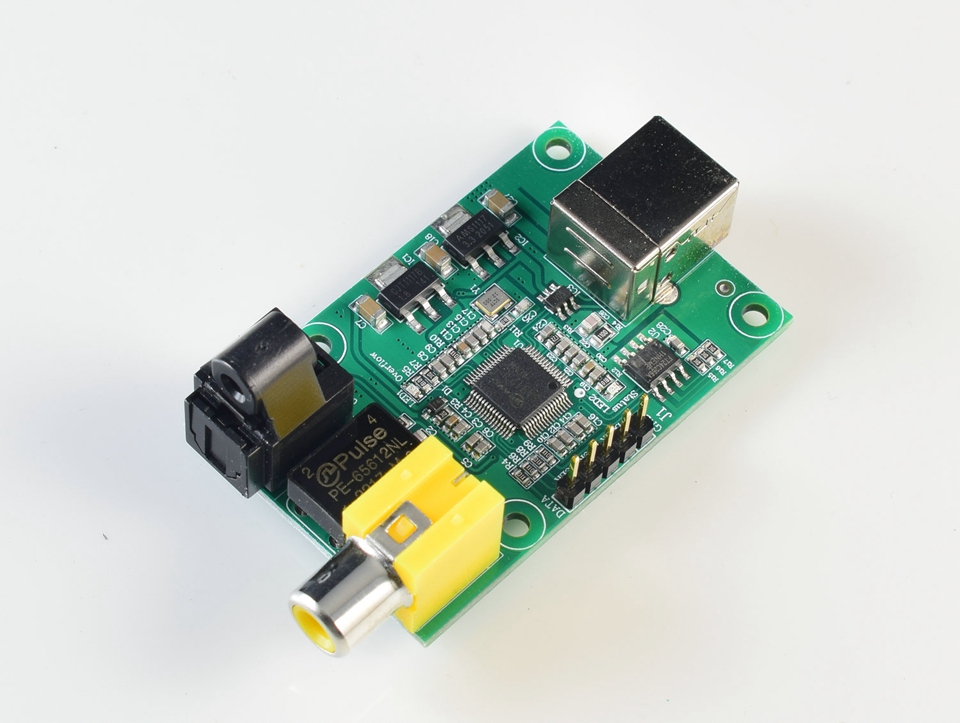

SA9123L Finished Board Audio Streaming Controller USB to SPDIF Optical I2S Output 24Bit 192K Audio Controller Board with Case

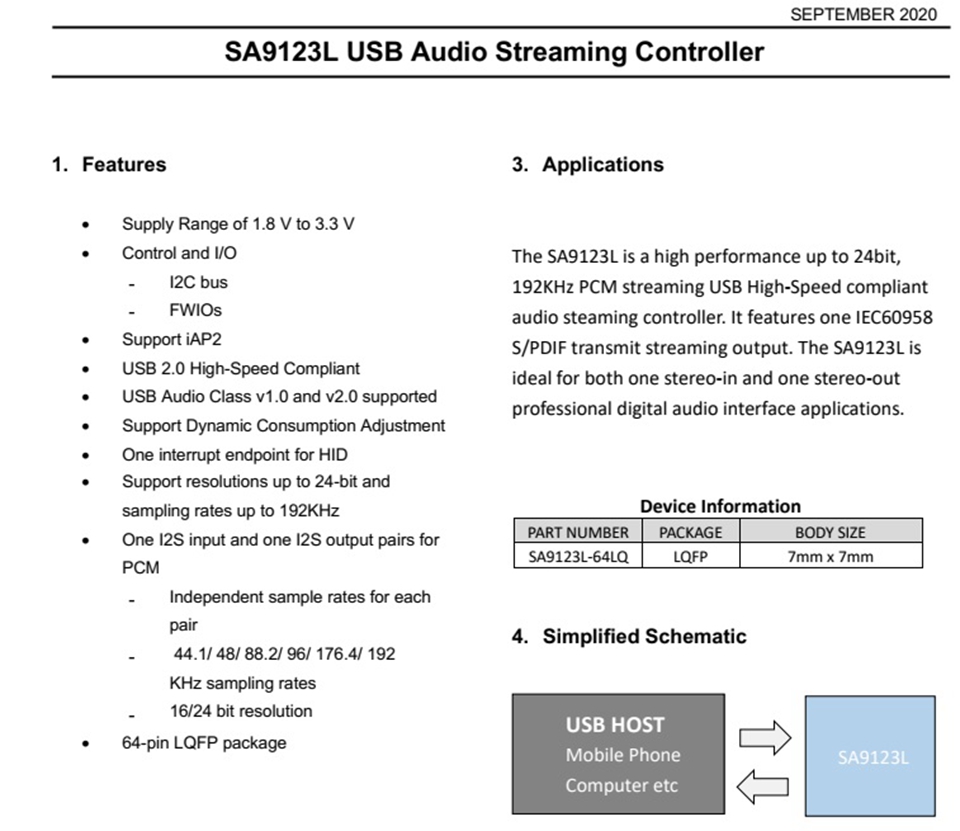

Description:
- The SA9123L is a high performance up to 24bit, 192KHz PCM streaming USB High-Speed compliant audio steaming controller. It features one IEC60958 S/PDIF transmit streaming output. The SA9123L is ideal for both one stereo-in and one stereo-out professional digital audio interface applications.
Features:
- Supply range of 1.8V to 3.3V
- Control and I/O: I2C bus, FWIOs
- Support iAP2
- USB 2.0 High-speed compliant
- USB Audio Class V1.0 and V2.0 supported
- Support dynamic consumption adjustment
- One interrupt endpoint for HID
- Support resolution up to 24-bit and sampling rates up to 192KHz
- One I2S input and one I2S output pairs for PCM:
Independent sample rates for each pair

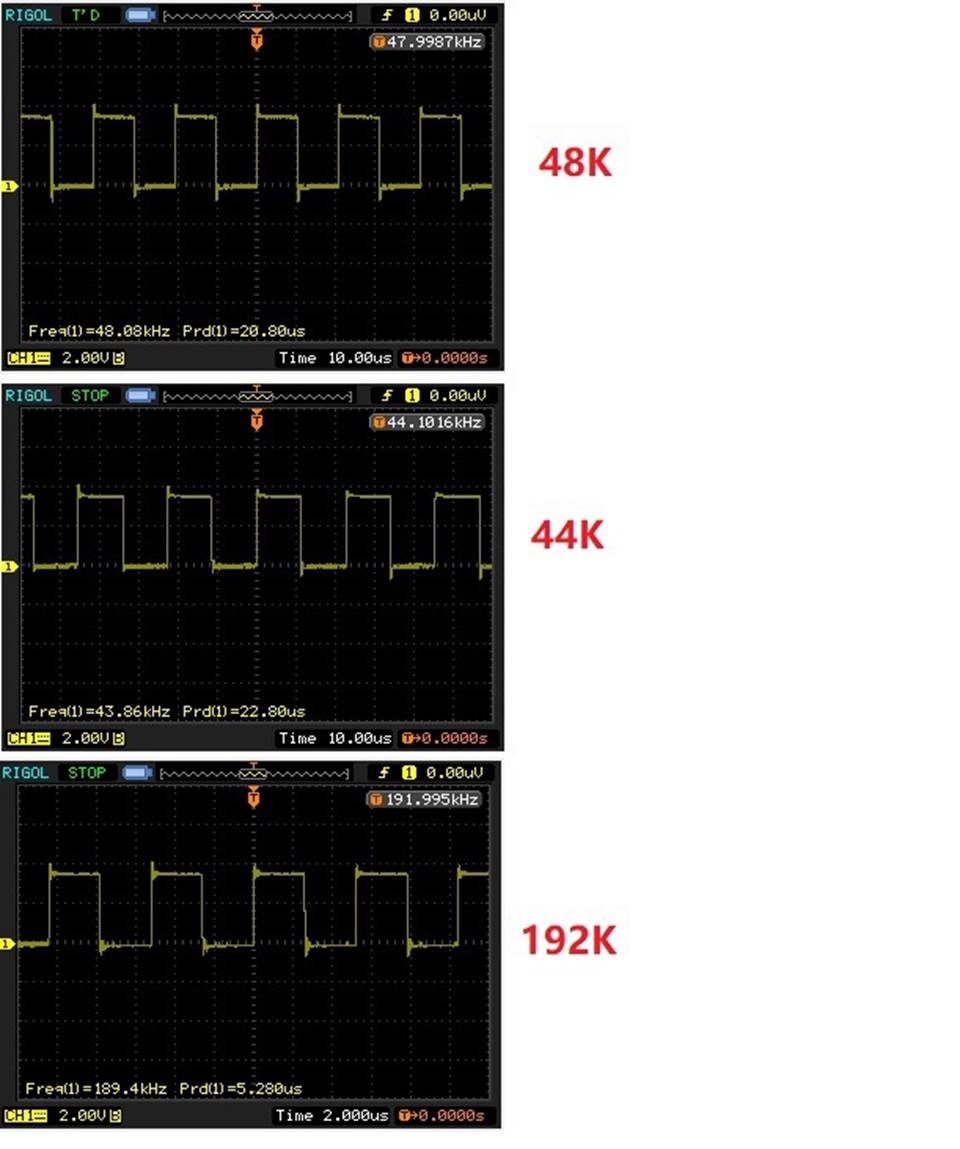

44.1/48/88.2/96/176.4/192KHz sampling rates
16/24 bit resolution
- 64-pin LQFP package

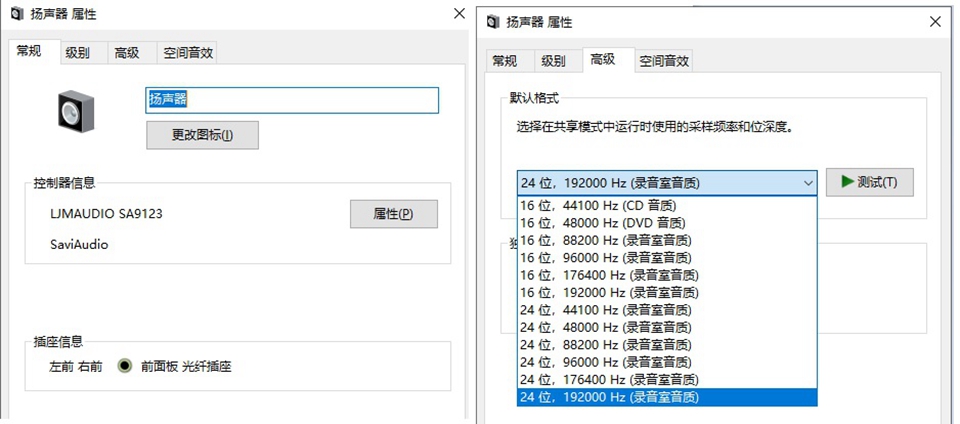

- For WIN10 automatically recognizes without installing drivers, for WIN7 requires manual installation of driver, download link as follows:
https://pan.baidu.com/s/1ZKp_-AEIxufMZiRPDA2BbA?pwd=l0qk; password: l0qk
Package Included:
- 1 x Board

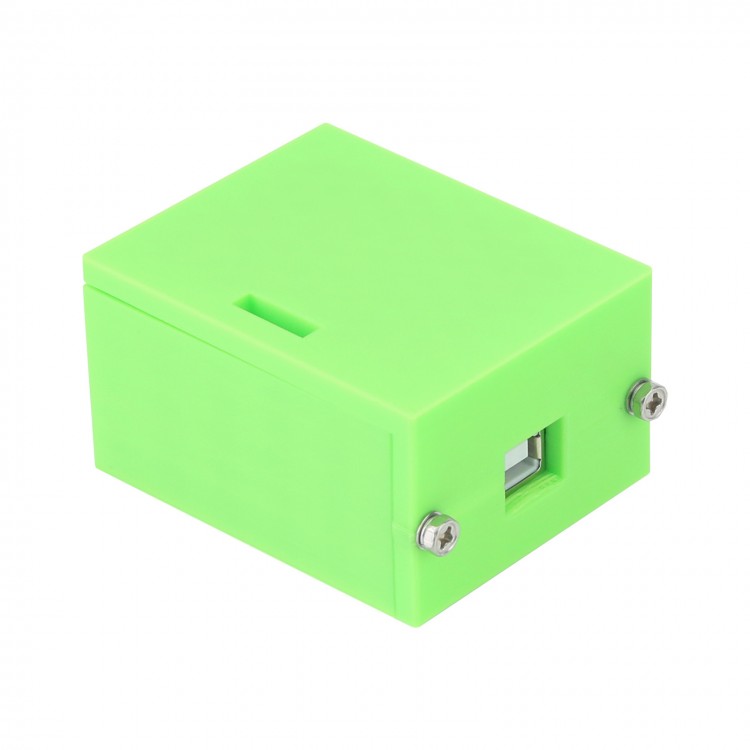

- 1 x Case
