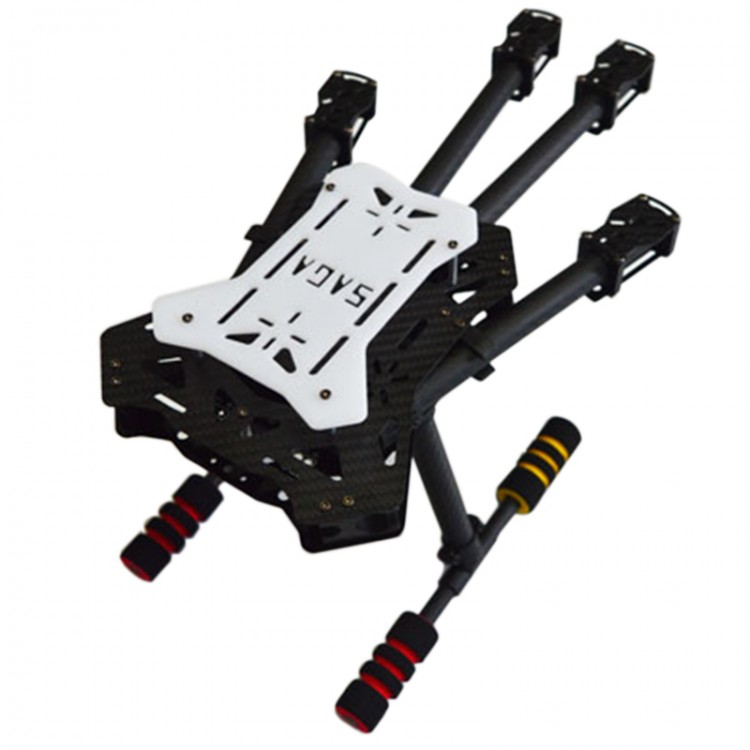

SAGA E450-T Carbon Fiber Folding Aerial FPV 4-Axis Quadcopter X4X8 Frame Kit for Multicopter
Description:
- Adopt double side motor block design, support X4 and X8 dual structure installation
- Lower center plate integrates PCB electric distribution design, reserved 58mm spacing gimbal hanging rack interface, GoPro gimbal interface, wing GoPro gimbal interface, front-end reserves camera hard shock absorber plate interface.
Recommended configuration 1:
For the total takeoff weight is not more than 1.6KG configuration, 2212/2214/2312 and other brushless motor, 20A/30A brushless, 9-10 inch propeller
Recommended configuration 2:
For the total takeoff weight is no more than 2KG configuration; 3310 brushless motor or others, 20/30A brushless ESC, 10-11 inch propeller
E450T frame parameters:
- Maximum diameter: 500mm (excluding propeller)
- Wheelbase 450mm
- Weight: 385g
- Overall height: 194mm
- Arm length: 185mm
- Tripod height: high foot: 145mm) with shock absorber
- Center board size: 185 x 155mm
Standard fittings:
- E450T upper center plate
- E450T lower center board
- 185mm folding arm
- 16mm nylon folding fastener /C card
- 22XX carbon fiber motor base group
- E series lightweight high tripod group
Optional accessories:
- 58mm spacing rack PTZ group
- Camera damping components
- Battery rack
- Small electric landing gear
