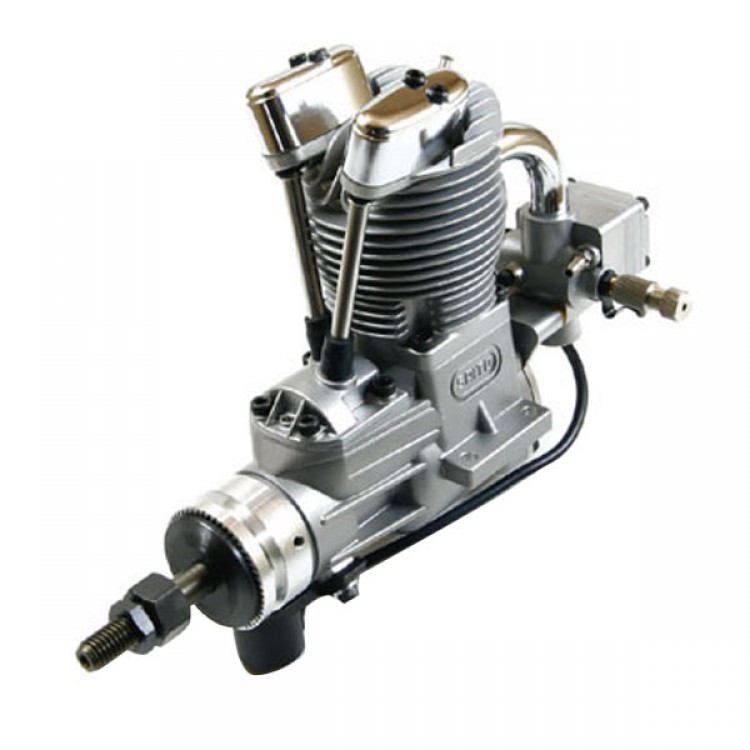

Saito FG20 4 Stroke 20CC AAC Structure Gas Engine Petrol Engine SAIEG20
FG20 4 Stroke Gas Engine
- The wildly innovative FG-20 brings Saito’s unmatched reputation for quality and dependability in the four-stroke glow market to gas enthusiasts everywhere. Based on the lightest 1.20-size engine available, it is the perfect choice for all .60- to 1.20-size aircraft.
- Perhaps the most amazing detail about this unique powerhouse is the first purpose-designed gasoline carburetor for model engines. Lighter and smaller than other industrial carb designs, it operates with the same ease you have come to expect and its size allows the engine to be conveniently dropped into most airframes.
- The impeccable workmanship of the FG-20 results in tremendous operation that can decrease your operating costs by up to 90%*. It also has enough power to swing a 15” x 7” three-bladed prop.
- By combining the reliability of gas with the sweet sound of Saito, advanced technology and foresight are once again helping Saito lead the way into the future
Features
- The first 4-stroke 20cc gasoline engine gives modelers a better option for .60- to .90-size projects
- Fueled by gasoline to save up to 90% in operating costs over similar nitro power systems
- Exclusive pump-style carburetor allows for easy starting and operation with less weight than comparable styles
- High quality, professional finish adds scale realism
- 13mm Muffler Threads
Spefications:
- Type: 4-stroke
- Displacement: 1.25 cu in (20.52cc)
- Bore: 1.24 in (31.7mm)
- Stroke: 1.02 in (26.0mm)
- Cylinders: Single AAC
- Total Weight: 30.1 oz (850 g - with muffler and ignition)
- Engine (Only) Weight: 21.87 oz (620 g)
- Muffler Weight: 2.89 oz (80 g)
- Crankshaft Threads: M8 x 1.25mm
- Prop Range: 15x7–16x6 2-blade; 14x9–15x7 3-blade
- RPM Range: 1,800–9,500 rpm
- Fuel: Gas oil mix of 20:1 (20:1 is recommended for break in and continuous operation)
- Mounting Dimensions: 152 x 60 x 126mm
- Muffler Type: Cast (13mm threads)
- Cylinder Type: AAC
- Starting System: Saito ignition 4.8 - 6V (capacity more than 1,000mAh)
- Carb Type: 2-needle Saito gas carburetor
- Crank Type: Dual ball bearing
Tech Notes
- The Saito Electronic ignition system requires the use of a 4.8- to 6.0-volt battery for proper operation. A capacity of 1000mAh or more is recommended.
- Part Number: SAIEG20
