Samkoon EA-043A 4.3" HMI Touch Screen + FX3U-48MR PLC Controller PLC Control Board 6AD 2DA

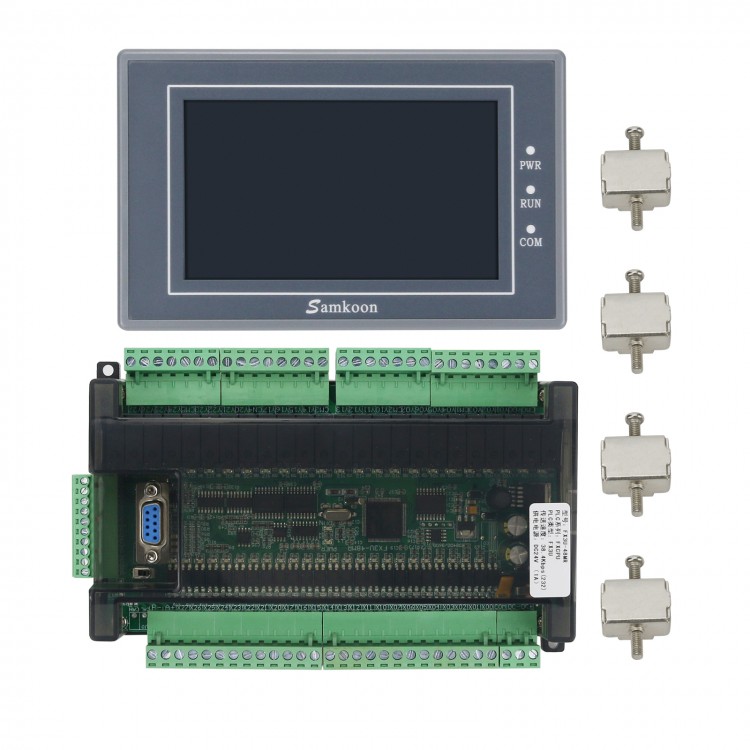

Package Included:
- 1 x EA-043A HMI Touch Screen
- 1 x FX3U-48MR PLC Control Board
Note:
- Cables are not included.
EA-043A:
Hardware:
- Outline dimension: 138 x 86 x 38mm/5.4 x 3.4 x 1.5"
- Cut-out Size: 132 x 80mm/5.2 x 3.1"
- Net Weight: 0.2Kg
Display:
- Model: EA-043A
- Display Size: 4.3" (16:9)
- Resolution (Px): 480 x 272
- Touch Screen: Four-wire screen
- Color: 262,114
- Backlight: LED
- Contrast Ratio: 400:1
- Luminance: 400cd/㎡
Properties/Certification:
- Memory: 128M FLASH + 32M DDR2
- CPU: ARM9 200MHz
- Electric Strength Test: 500V DC, 1min
- ESD: Level2 ± 4kV
- FCC: FCC, Class A
- CE: EN55022 & EN55024
- Protection Grade: IP65 (Front panel)
- Housing Material: ABS + PC
- Power/Port:
- Power Supply: DC24V(+/-15%)
- Power Consumption: 3W
- Series Port: COM: RS232/422/485
- USB-A: YES
- USB-B: NO
- Ethernet Port: NO
Environment:
- Operation Temperature: -20 to 65℃
- Operation Humidity: 10~90%RH
- Shockproof: 10~25Hz (XYZ 2G/30min)
Software:
- PC Software: SATOOL
FX3U-48MR:
Advantages:
- PLC Type: FX3U
- Download baud rate: 38.4Kbps
- Direct programming download without conversion
- Support 27 basic sequence control instructions, 4 step ladder instructions
- The main control chip only uses STM32F, 32-bit instructions, and the operation is stable and reliable
- Input and output are isolated by optocoupler. Stable and reliable, good anti-interference ability
- Using high-quality solder, STM process. Smooth and full solder joints
Specifications:

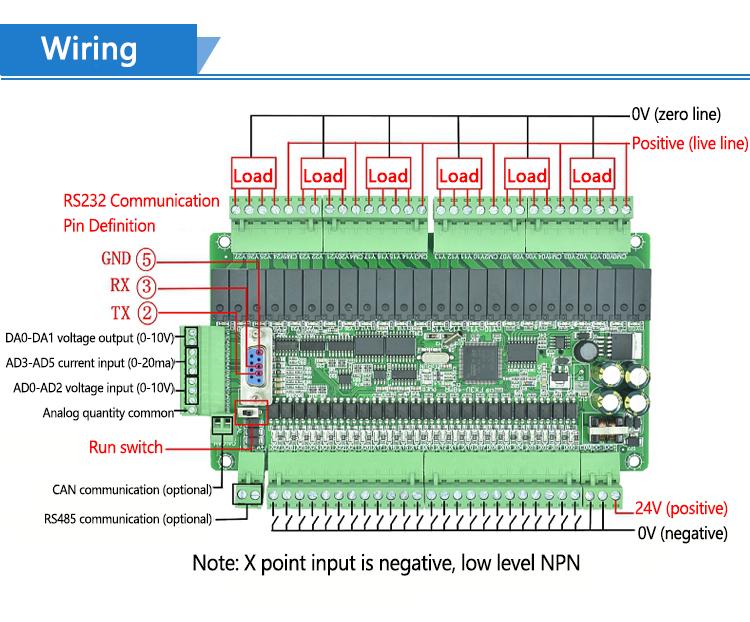

- Input power supply: DC 24V (1A)
- Program steps: 8000 steps; 2 communication ports: 1 RS232 (standard 9-pin serial port FX3u protocol 38400, 7, E, 1), 1 RS485
- Input point X components: X0-X27, DC0V input, low-level effective. Among them, X0-5 are high-speed counting input ports (12KHZ)
- FX3U-48MR output point Y component: Y0-Y27 is a total of 48 points of relay output. Can control AC contactor, intermediate relay, solenoid valve (5A)
- Analog quantity input: 6 analog quantity inputs, 12-bit precision, AD0~AD2 are voltage inputs 0-10V. AD3~AD5 are 0-20MA current input; use RD3A instruction to read analog quantity
- Intermediate relay M: M0-M3071, save range can be set M0-M1023
- Step point S: S0-1023, save range can be set S0-S1023
- 100Ms timer: T0-T199, accumulative power-down save T184-T199
- 10Ms timer: T200-T249, cumulative power-down save T246-T249
- 1Ms timer: T250-T383, of which T250-255 is cumulative
- 16-bit counter: C0-C199, save C100-199 when power off
- 32-bit counter: C200-C219, save C220-C234 when power off
- 32-bit high-speed counter: C235-255; C235-240 is a single-phase counter with no frequency multiplication; C241-240 is a single-phase counter with 2 times frequency 2C; 52547-249 is a two-phase counter without frequency multiplication; C250-252 is two-phase counter, 2 times frequency; C253- is a two-phase counter, 4 times frequency
- Register D: D0-D7999, the saving range can be set to D0-7999
- Indirect addressing pointer V, Z: V0-7, Z0-7
- P subroutine jump number: P0-63
- I interrupt: X0-5 external interrupt. Timer interrupt (1MS as a unit). Counter interrupt
- Special M element: M8000 is normally closed when running, M8002 is power-on pulse, M8011 is 10Ms pulse, M8012 is 100Ms pulse
