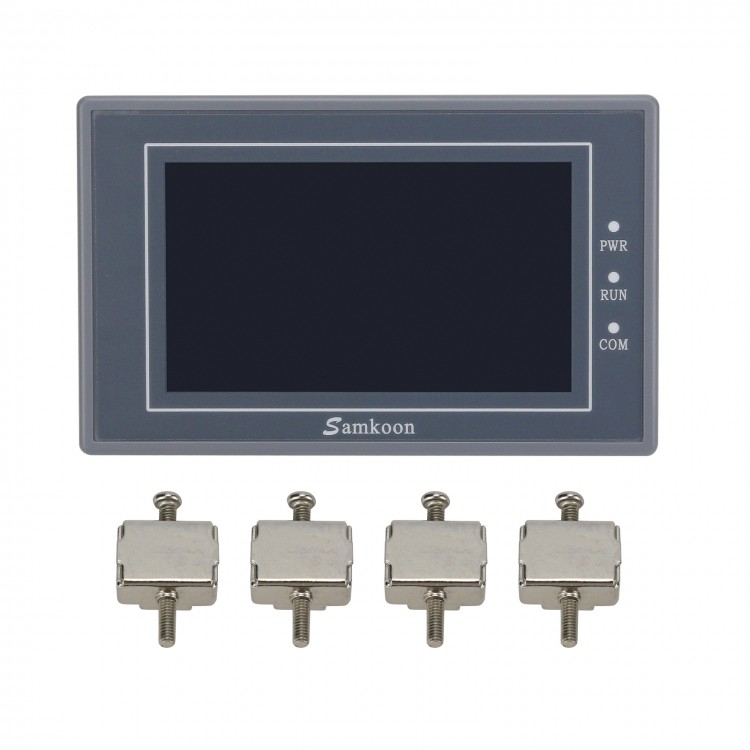

Samkoon EA-043A HMI Touch Screen Original 4.3 Inch Touch Display 480x272 Human Machine Interface
Specifications:
Hardware:
- Outline dimension: 138 x 86 x 38mm/5.4 x 3.4 x 1.5"
- Cut-out Size: 132 x 80mm/5.2 x 3.1"
- Net Weight: 0.2Kg
Display:
- Model: EA-043A
- Display Size: 4.3" (16:9)
- Resolution (Px): 480 x 272
- Touch Screen: Four-wire screen
- Color: 262,114
- Backlight: LED
- Contrast Ratio: 400:1
- Luminance: 400cd/㎡
Properties/Certification:
- Memory: 128M FLASH + 32M DDR2
- CPU: ARM9 200MHz
- Electric Strength Test: 500V DC, 1min
- ESD: Level2 ± 4kV
- FCC: FCC, Class A
- CE: EN55022 & EN55024
- Protection Grade: IP65 (Front panel)
- Housing Material: ABS + PC
- Power/Port:
- Power Supply: DC24V（+/-15%）
- Power Consumption: 3W
- Series Port: COM: RS232/422/485
- USB-A: YES
- USB-B: NO
- Ethernet Port: NO
Environment:
- Operation Temperature: -20 to 65℃
- Operation Humidity: 10~90%RH
- Shockproof: 10~25Hz (XYZ 2G/30min)
Software:
- PC Software: SATOOL
Package Included:
- 1 x Set of HMI Display
