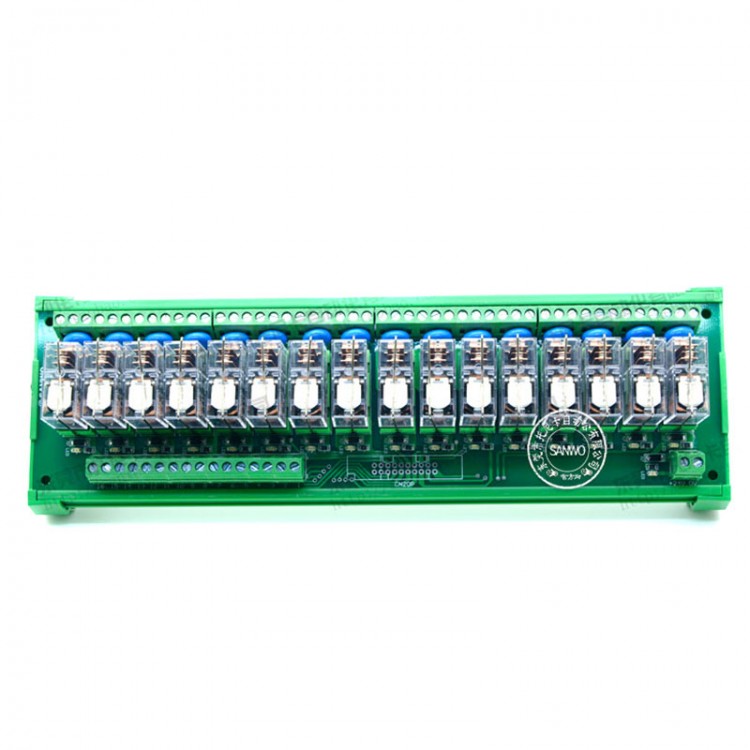

SANWO 16 Channel Omron Relay Module Controller DC24V PLC Drive Board NPN 1A1B
Specifications:
- Brand: SANWO Relay
- Model: NPN
- Rated current: 21.8mA
- Coil power: About 0.53W
- Contact: 1A1B
- Channel: 16
- Working voltage: -40~55 degree C
- Coil voltage: DC24V
- Dimension: 270*90*70mm L*W*H
- Weight: About 0.66kg
- Coil resistance: 1100Ohm
- Action voltage: <70%
- Reset voltage:>15%
- Maximum allowable voltage: 170% (at 23 degree C)
- Power consumption: About 0.53W
Performance: (one relay,one channel)
- Contact resistance : 50mOhm (when DC5V 1A)
- Action time: <15ms
- Reset time: <AC10ms, <DC5ms
- Maximum switch frequency: rated load: 1800 times/h
- Coil and node: AC5000V 50/60Hz 1min
- Peer node: AC1000V 50/60Hz 1min
- Vibration:
Durability: 10-55-10Hz ,Single amplitude 0.75mm (double amplitude 1.5mm)
Misoperation:10-55-10Hz ,Single amplitude 0.75mm (double amplitude 1.5mm)
- Life:
Mechanical >AC10 million times , >DC20 millions (frequency 18,000 timrs/h)
Electrical: >10 million times
- Working humidity: 5-85%RH
Features:
- Can be plugging and unplugging
- LED patch with light
- Professional; circuit protection
- DIN guida rail installation
- Flame retardant shell
Package Contents:
- 1 x Omron Relay Module
