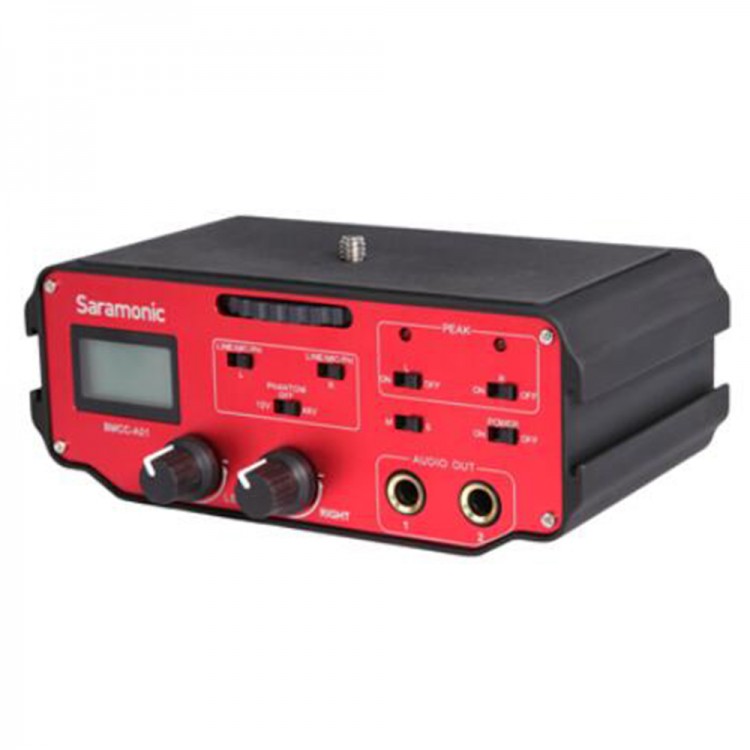

SARAMONI BMCC-A01 Microphone Audio Adapter Mixer with preamplifier for Blackmagic Cinema Camera

SARAMONI BMCC-A01 Microphone Audio Adapter Mixer with preamplifier for Blackmagic Cinema Camera

SARAMONI BMCC-A01 instructions: Click here

Project Description
The Saramonic BMCC-A01 is a two-channel XLR audio adapter, specially designed for Blackmagic Cinema Camera. A wide-variety of professional audio devices like XLR mics,wireless mics, boom mics and mixing boards can be connected to the camera via this adapter.

Features:
- Dual Balanced XLR Inputs: 12V/48V/Off Phantom Power Switch
- LED Metering: Level controls allow you to balance both input levels
- Phantom power switch allows you to select 0, 12, or 48V of phantom power
- Auto Gain Control switch reduces noise during quiet moments of recording by cutting our your camera’s Auto Gain Control function LIN/MIC/PH:
  Selects LINE when camera is set to LINE input.
  Selects MIC when camera is set to MIC input.
  Slects PH when any channel need a phantom power.
- PH (Phantom) Voltage: Selects phantom voltage to 12V, 48V or OFF.
- LED Light power switch: Open or close Warning Red LED light.
- VU meter:Indicates the sound level in dB for each channel.
- LEFT and RIGHT Trim Controls:Individually adjust output levels of each channel
- M/S switch: Select Mono or Stereo output mode.
- Power switch: Main power switch for BMCC-A01

Specification:
- Frequency Response: 10 Hz to 100 kHz (+/-0.5 dB)
- THD: Less than 0.01% @ 1 kHz, -30 dBu input
- SNR: 80 dB @ 1 kHz, -30 dBu input
- Level Metering: -18 to +3 dB in 3 dB increments
- Power Requirements: 9 V battery (not included)
- Battery Life: Alkaline: 6 hours, typical
- Lithium: 12 hours, typical
- Dimensions: 6.1 x 3.9 x 2.5″ (15.5 x 9.8 x 6.4 cm)
- Weight: 21.7 oz (615 g)

Package List:
- 1 x BMCC-A01 main unit
- 2 x 1/4" TRS Balanced Output Cables
- 1 x User manual
