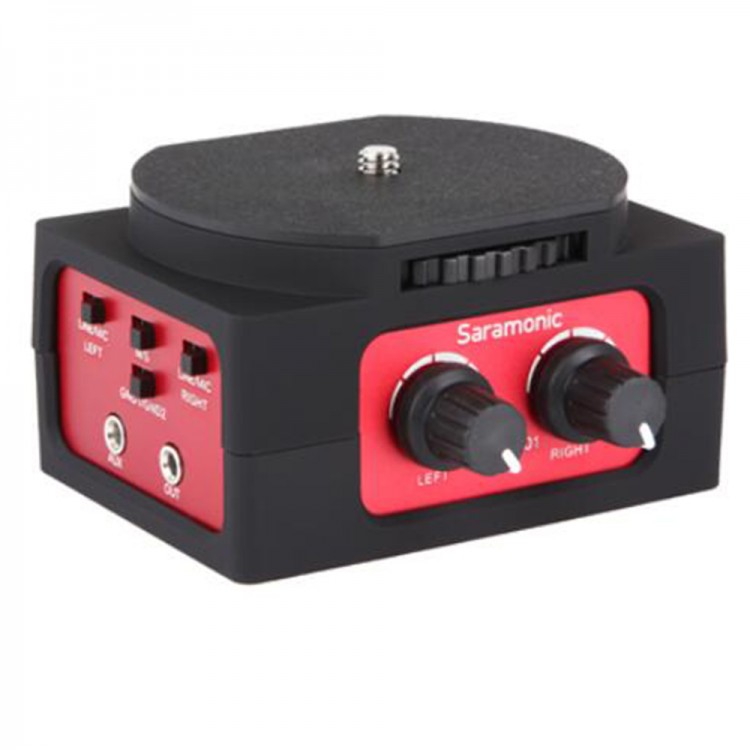

SARAMONIC CSR-AX101 Dual Channel XLR Audio Microphone Adapter Mixer for Camera Camcorder

SARAMONIC CSR-AX101 Dual Channel XLR Audio Microphone Adapter Mixer for Camera Camcorder

SARAMONIC CSR-AX101 instructions: Click here

Project Description
- The SARAMONIC SR-AX101 is a 2-channel XLR audio adapter ideal for any compact camcorder with a built-in microphone jack.
- It enables you to acquire professional audio from XLR outputs into a camcorder that has a 3.5mm (1/8″) audio input.
- Wide-variety of audio devices like balanced XLR microphones, wireless microphones, external audio mixers, preamplifiers and more can be connected to the camera via this adapter.
- The passive operation provides you superb sound quality with an extremely wide dynamic range, and no batteries or power source is needed.

Features:
- One 1/8″ (3.5 mm) Auxiliary Mini-Jack Input
- Two balanced XLR inputs
- One stereo 1/8″ (3.5 mm) Mini-Jack Output
- Dual Trim Control Knobs: Adjust the signal of each channel to the optimum recording level
- Mono /Stereo Switch: Select mono or stereo output mode
- LINE / MIC Switches: Select LINE or MIC levels
- GND1/G ground switch: Eliminate ground hum and noise for getting the best sound
- Plastic Chassis With a Tripod Socket
- Passive Circuit Make It Noise Free
- No Powe or Battery is Needed
- Easy to Set Up and Use

Specification:
- Input Level:MIC:-35 dBu LINE:-10 – +4 dBu
- Output Level: General Mic Levels
- Frequency Response:20Hz to 20 KHz (+/-1.5 dB)
- Dimensions: 87 (L) x 80(W) x 52(H) mm
- Weight: 191g (6.7oz.)

Package List:
- 1 x Audio Microphone Adapter
