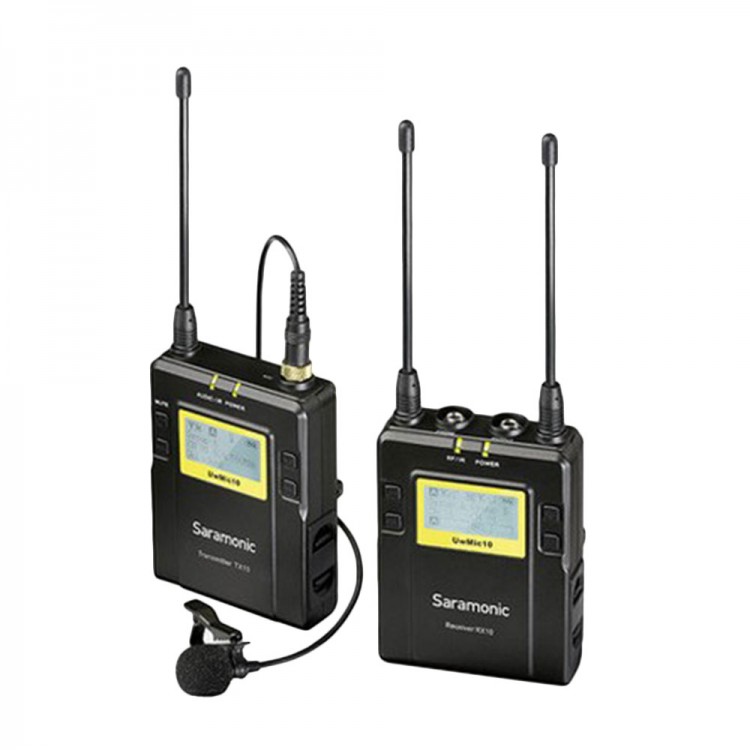

Saramonic RX10+TX10 96-Channel UHF Wireless Lavalier Microphone System for DSLR UWMIC10
Features
- Reliable, broadcast-quality audio
- Wireless transmitter with lavalier microphone
- Durable Aluminum Construction
- UHF Frequency Range: 614 MHz - 696 MHz; 96 selectable channels in 2 groups
- Operating Range: Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
- Easy-to-read LCD displays
Description:
The Saramonic RX10+TX10 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.
The system includes a camera-mountable, wireless receiver, wireless body-pack transmitter and clip-on lavalier mic.
Receiver :
The Saramonic UwMic10-RX10 is a camera-mountable integrated wireless receiver. It features a wide switching RF bandwidth, an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX10 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
Transmitter :
This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
Specifications:
- Channels: 96
- Groups: A and B
- Oscillator type: PLL synthesizer
- Output: 3.5mm mini jack
- Antenna: 1/4 wire antenna
- Audio output level: -60 dBV
- Headphone output level: 30mW (16 ohm)
- Frequency Range: 614 MHz - 696 MHz
- Sensitivity: -95 dBm
- Signal to noise ratio: 70 dB or more
- Voice delay: 12 ms
- Reference deviation: +/- 5 kHz
- Frequency response: 40 Hz to 18 kHz (+/- 3dB)
- Distortion: 0.5% or less
- Spur suppression: -60 dB
- Weight: 218.7g
- Battery: 2 AA batteries (not icnluded)
- Dimensions: 170.9 x 63.5 x 30.0 mm
Package List:
- 1 x RX10
- 1 x TX10
