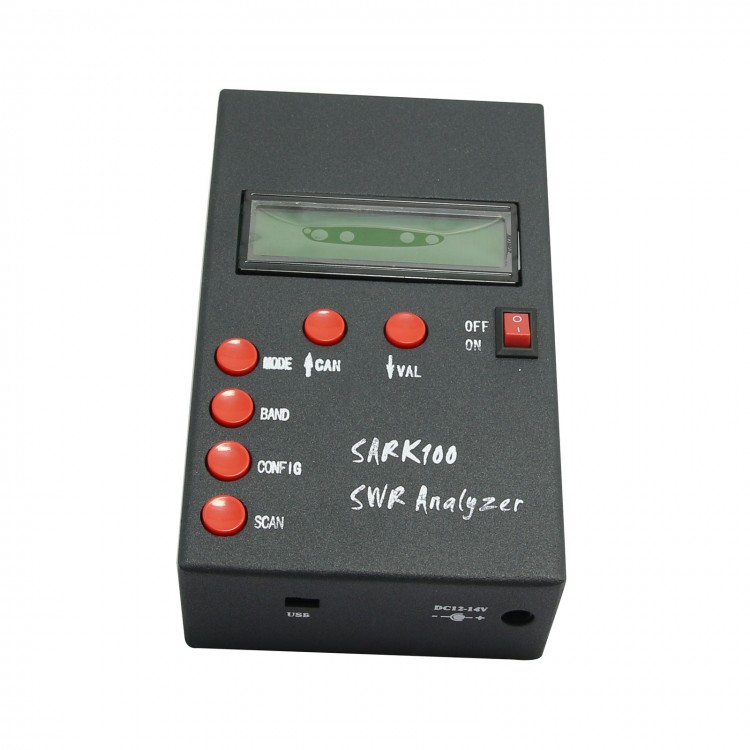

SARK 100 ANT SWR Antenna Analyzer Meter For FPV Ham Radio Hobbists 1-60M
Features:
- This is a SWR Analyzer for ham hobbists.
- User manual is to be sent by email upon request.
- Frequency Generation & Control: 1 - 60 Mhz
- Source impedance: 50 Ohms
- Stability: +/- 100 ppm
- Spectral Purity: Harmonics down >- TBD dB beyond 60 MHz
- Step Size: User configurable increments of 100 Hz, 1 kHz, 10 kHz, and 100 kHz
- Usable Measurement Range:SWR: 1.0 to 9.99
- Impedance: approx. 5 to 2000 ohms
- RF Output: Adjustable: 2.0 Volts pp (typ)
- Power supply: Powerd by External: 12 to 15 Volts DC, 500mA
- Controls: Pushbuttons (5): "Mode", "Band", "Config", "Scan", "Up", "Down"
- Switch: "Power On"
- USB: Mini-B receptacle
- External power: 2.1mm Power Jack (center pin positive)
Click Here to download the user manual
Applications:
- Measure antenna electrical parameters: SWR, impedance (resistance +
reactance), capacitance, inductance
- Measure feedpoint impedance
- Measure ground loss
- Adjust antenna tuners and determine loss
- Measure inductors and capacitors
- Measure coax transmission line (SWR, length, velocity factor, approximate Q
and loss, resonant frequency, and impedance)
- Measure and determine optimum settings for tuning stubs: SWR, approximate
- Q, resonant frequency, bandwidth, impedance
- Determine characteristic impedance of transmission line
- Determine length of and wave phasing lines
- Coaxial Cable Loss
- Determine antenna tuner loss
- Measure balun loss
- Measure inductor Q
- Estimate quartz crystal parameters
- Measure magnetic loop resonance and SWR
- Operation button definitions:
- Mode: selects operation mode: impedance(default), complex impedance, capacitance, and inducatance
- BAND: select band from any of the available bands: 160M to 6M
- CONFIG: Provides menu for configurations and extended functions: PC Link, step size setting, suspend timeout setting, calibration, and software upgrade
- SCAN: pressing this control initiates a scan of frequencies of the selected BAND. Scan exits to impedance mode showing the 2:1 bandwidth and the resonant point o the antenna
- CAN(up): increase frequency and used to cancel operation for CONFIG menu
- VAL(down): decrease frequency and used to validate operation for CONFIG menu
Package includeds:
- 100% Brand New
- 1PCS SWR Analyzer & Assembled ready for use * ANTENNA HAM RADIO HOBBIST
Batteries not included
