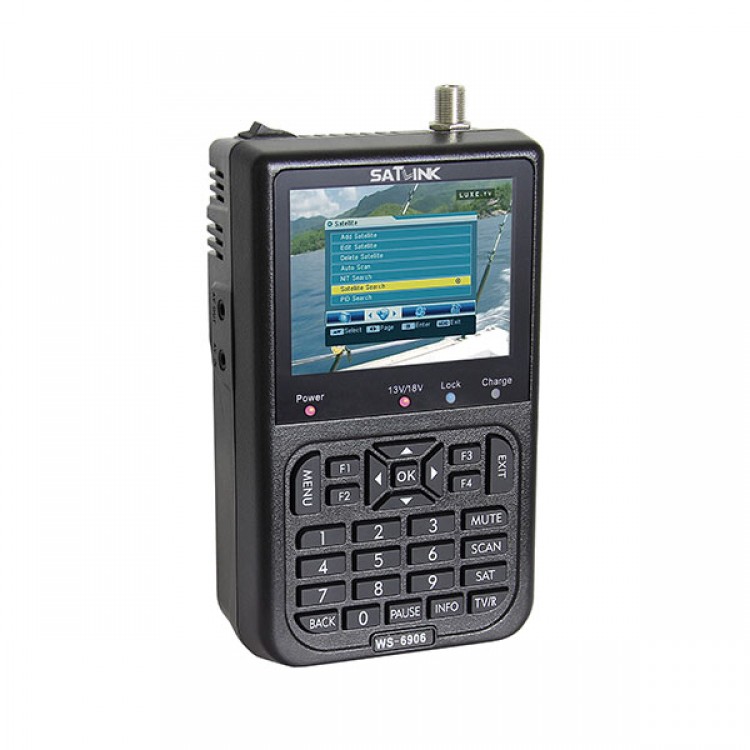

SATLINK WS6906 3.5" DVB-S FTA Digital Satellite Meter Portable Digital Satellite Finder Meter
Specification:
- 3.5 inch LCD Colour Screen(SATLINK WS6906)
- Live FTA Digital Picture and Sound
- AV in and AV out function
- Watch the free channels
- Sound warning prompt locking satellite
- Bit Error Rate Readout
- Carrier to Noise Readout
- dBuV Readout
- Lithium-ion 1950mA Battery
- DiSEqC & 22kHz Switch Control
- Fully DVB Compliant(SATLINK WS6906)
- Freq range: 950mHz-2150mHz
- Signal level: 65dbm~25dbm
- Symbol rate: 2mbps~45mbps
- Video format: PAL/NTSC/SECAM
- Software Upgradeable via USB
- Includes 240v Charger
- 12volt Cigarette Lighter Cable
- USB Cable & Strap
- Size: 158x95x45,Very small and portable
Technical Parameter:
|
System capabilities |
Fully DVB compliant(SATLINK WS6906) |
Yes |
|
|
LNB/Tuner input |
Connector |
F type,male |
|
|
Frequency range |
950MHz-2150MHz |
||
|
Signal lever |
-65dBm~-25dBm |
||
|
LNB supply |
13/18V,max400mA |
||
|
LNB switch control |
22KHz |
||
|
DiSEqC |
Ver 1.0 |
||
|
Demodulator |
Front end |
QPSK |
|
|
Symbol rate |
2Mbps~45Mbps |
||
|
SCPC and MCPC Capable |
Yes |
||
|
Spectral inversion |
Auto conversion |
||
|
System resource |
Processor |
32bit processor (200MHz) |
|
|
|
SDRAM |
16Mbyte |
|
|
FLASH |
2Mbyte |
||
|
EEPROM |
8Kbyte |
||
|
Video decoder |
MPEG 2 |
Main Proflie@Main Level |
|
|
Data Rate |
up to 15M bits/s |
||
|
Resolution |
720*576,720*480 |
||
|
Video format |
PAL/NTSC/SECAM |
||
|
MPEG Audio |
MPEG 1 layer 1&2 |
|
|
|
Type |
Mono |
||
|
Sampling rates |
32,44.1 and 48KHz |
||
|
Serial data interface |
Connector |
USB type |
|
|
Power supply |
Li-oN Battery |
1950 mA |
|
|
|
Supply voltage |
12.6Volt |
|
|
|
charger |
90-240V |
|
|
Panel connectors |
Digital tuner input |
F type, male |
|
|
Physical Specification |
Size |
9.5x15.5x4.5 (cm) |
|
|
|
Weight(Net) |
0.5 Kg |
|
