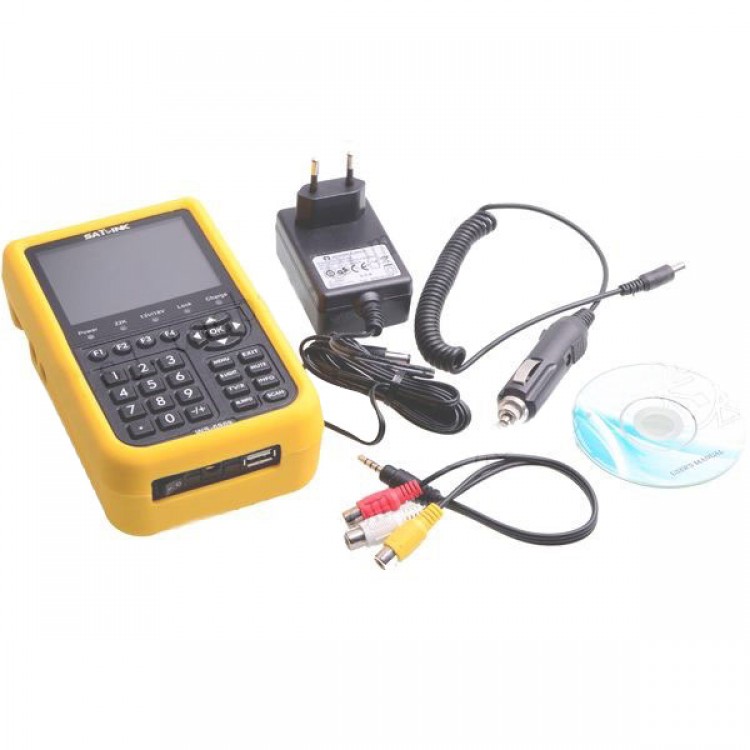

SATLINK WS6909 DVB-Satellite & Terrestrial Combo Satellite Meter
Brief Introduction to Products:
For the first time in a economical digital meter, you are now able to view the actual channel on the screen of the meter. Now you can quickly and accurately align the satellite AND you can instantly check the stability of the channel right on the screen of the meter. Transponders, Frequency, Symbol Rate, Polarity, and other settings can be modified by the user. There is never a need to send your meter in for a upgrade.(SATLINK WS6909)
Meter never needs to be returned for re-calibration due to the unique calibration system built in to the meter. Each time the meter boots up it automatically calibrates for optimum performance so you can align each install with confidence.
Note:this Model can not used in America Continent
Main Functions
DVB-T
- COFDM Demodulated
- Frequency range:46-870MHz
- Level range:40-110dBuV
- Input Resistance:75ohm(SATLINK WS6909)
- Demodulation:QPSK,16QAM,64QAM
- Test: BER, C/N, FEC Signal Quality and Strength
- Multi-Channel Simultaneous Measurement
- Auto Full Frequency Scan
- Auto scan of frequency selected
- Power supply at RFIN:5V/12V/15V/18V/24V*(100mA)
DVB-S
- Input Frequency range:950-2150MHz
- Input Level:-65dbm-25dbm
- Input Resistance:75ohm
- Symbol rate:2Msps-45Msps
- Test: BER, C/N, FEC Signal Quality and Strength
- Auto search: NIT Search ,Manul Search
- DisEqC,22K Supported
- LNB power supply :H + 18V + 13V 400Ma
OTHER
- 8.4V/3000mAH Lion battery
- Power adapter input: AC 90V-240V/50Hz
- Power adapter output: DC 12V/1.5A
- Working time:4-6 hours (full charge)
- Charging time: 5 hours from flat(SATLINK WS6909)
- Car charger supplied
- Dimension:155 x 95 x 45mm
- Net weight: 06kg
Technical Parameter:
|
System Capabilities
|
Fully DVB-S/DVB-T Compliant
|
Yes
|
|
|
Atenna input
|
DVB-S
|
Connector
|
F type, Female
|
|
Frequency Range
|
950MHz-2150MHz
|
||
|
Signal Level
|
-65dBm~-25dBm
|
||
|
LNB Powewr
|
13/18V,Max350mA
|
||
|
LNB Switch Control
|
22KHz
|
||
|
DiSEqC
|
Ver 1.0/ 1.2
|
||
|
DVB-T
|
Connector
|
IEC Female 9.5mm
|
|
|
Frequency range
|
VHF and UHF
|
||
|
Bandwith
|
8/7/6MHz
|
||
|
Input impedance
|
75 ohm
|
||
|
Demodulator
|
DVB-S
|
Front end
|
QPSK
|
|
Demodulation Range
|
2Mbps~45Mbps
|
||
|
SCPC and MCPC Capable
|
Yes
|
||
|
DVB-T
|
Modulation
|
COFDM
|
|
|
Constellation
|
QPSK,16QAM,64QAM
|
||
|
Transmission mode
|
2K,8K
|
||
|
Guard interval
|
1/2,1/4,1/8,1/16,1/32
|
||
|
FEC
|
1/2,2/3,3/4,4/5,5/6,7/8
|
||
|
System Resources
|
Processor
|
32bit processor (133MHz)
|
|
|
FLASH
|
8Mbyte
|
||
|
SDRAM
|
4*16Mbyte
|
||
|
Video Decoder
|
MPEG 2
|
MP@ML
|
|
|
Data Rate
|
Max15M bits/s
|
||
|
Resolution
|
720*576,720*480
|
||
|
Video format
|
PAL/NTSC/SECAM
|
||
