SayoDevice Pink 3-Key O3C OSU Rapid Trigger Custom Keyboard Hall Magnetic Axis Gaming Keyboard with 0.96-inch IPS Screen

SayoDevice Pink 3-Key O3C OSU Rapid Trigger Custom Keyboard Hall Magnetic Axis Gaming Keyboard with 0.96-inch IPS Screen

Features:
- The mechanical keyboard is designed with 3 or 4 Hall magnetic axis, 1 knob and 1 screen.
- The 4-key version has 4 customizing shortcuts keys.
- USB 2.0 high-speed 8000HZ.
- With Type-C interface, the keyboard is plug-and-play. The data cable is 2m/6.6ft in length by default.
- The buttons support RGB backlight and the colors of the light is adjustable and can be turned off.
- Five-layer button configuration can be switched arbitrarily, and each layer can be set with different color lights.
- Trigger travel customization and the shortest is 0.05mm.
- Release travel customization and support Rapid Trigger.
- Support any magnetic pole and magnetic axis. Simply press the button for calibration.
- 0.96-inch IPS color screen enables key travel visualization, key counting, etc. Customizable pressure components, images, GIFs, etc.
- The knob can also be used to set any key, such as scrolling to view the song list.

Boot interface (customizable):


- The home screen can display key travel, status, key counting, etc.
- All can be modified (position, color, etc. You can also change the background images)


Home Menu:


Calibration menu, each button can be individually calibrated:


Press once to complete calibration:


Can fine tune key parameters, 0.05mm a gear:


Adjustable refresh rate:


Historical button count (maximum value: 4.9 billion times):


Support multi-language:


Functions:
- Support recording button operations
- It can record 6 macro scripts, each of which stores approximately 500 key operations.
- It also supports manual editing, looping, local looping, and more.
- Generally, shortcut keys do not occupy the number of macros (all of which are listed below).
- Support for any single key. Eg. ABC123 F1~F12 F13~F24 on the keyboard.
- Support key combination. Eg. One click copy, one click paste
- Support multimedia control. Eg. Volume adjustment and song switching
- Supports Joystick buttons.
- Support one-click password entry
- The name of the keyboard can be modified

Download to set button:
- https://sayodevice.com

To double click of the keys, break touch or change switches, please follow the steps below to calibrate. Press and hold the knob to open the menu. Users can calibrate or set keystroke triggering parameters.
1. Button - > magnetic calibration: choose K1, K2 or K3 for calibration. Follow the on-screen prompts to press the key.
2. Button - > parameter setting: select K1, K2 or K3 to set. The recommended parameters are:
- Trigger 0.25mm (Press the trigger distance, it is recommended to be greater than 0.2mm to eliminate hand shaking error press)
- Release 0.40mm (Release distance is recommended to be greater than 0.15mm to eliminate the shaking error of the release hand)
- Dead zone 0.40mm (Actuation depth)
3. Done.

Others:
- Set keys/light/modify picture & text/update firmware:
  Using "Google Chrome" or "Microsoft Edge" browser,
  Open https://SayoDevice.com, click Search Device, select the device and click Connect
- Note: It may be necessary to recalibrate the button after the update (press and hold the knob to enter the menu, button -> calibration)

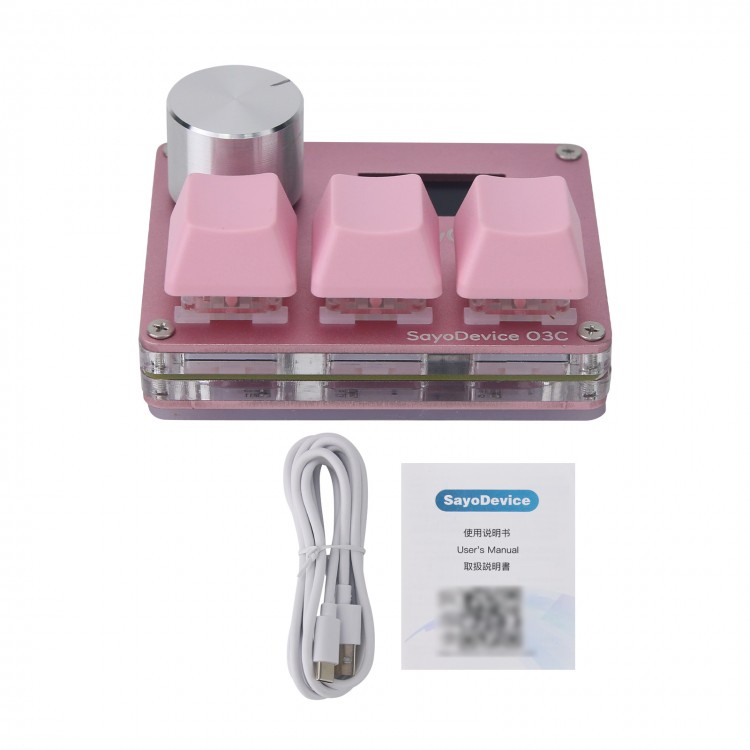

Package Included:
- 1 x Keyboard
- 1 x USB data cable
