| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $21.23 | $20.79 | $20.14 | $19.28 | Contact US |

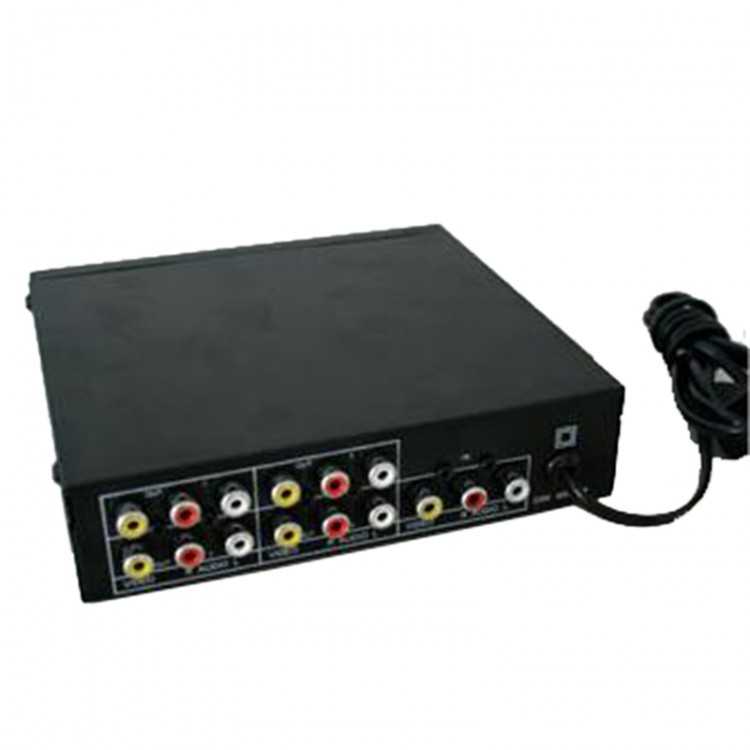

SB-104VA Four Channel Distributor AV Audio Video Switcher AV Audio Video Signal Distributor
Description:
- AV input device, such as DVD, VCD, digital TV set-top boxes, satellite TV receivers, video recorders, etc., can simultaneously link to four video output devices, such as TV, TV boxes, etc.
- Adopt high-quality components and advanced circuit design technology
- Each independent amplifier output, high isolation, strong anti-interference ability
- It is suitable for families, hotels, schools, factories, shopping malls, theaters and other occasions
Parameter:
- Model: SB-104VA
- Name: 4 way audio amplifier
- One way of audio and video input, four way audio and video output.
- Size: About 166 x 40 x 149 mm
- Net weight: 0.56kg
- Gross weight: 0.64kg
- Video input signal level and impedance: Vs0.8-1.0Vp-p/75Ohm.
- Video output signal level and impedance: Vs1.0-1.4Vp-p/75Ohm.
- Audio input signal level and impedance: 2V (RMS) /47KOhm.
- Audio output signal level and impedance: 2V (RMS) /1KOhm.
Package Included:
- 1 x SB-104VA Four Channel Distributor
