| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $15.88 | $15.55 | $15.07 | $14.42 | Contact US |

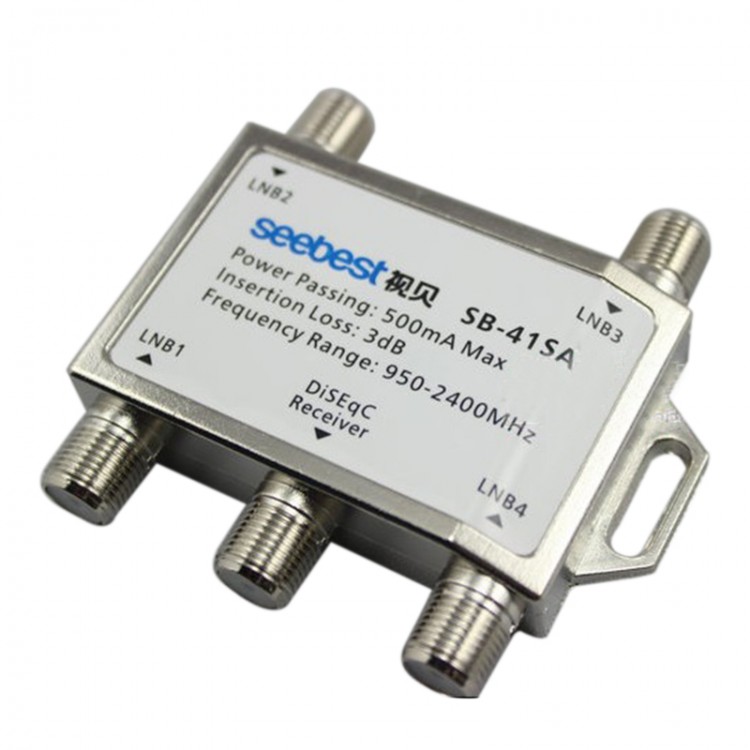

SB-41SA 4x1 Satellite Signal Switch DiSEqC Swith Converter Satellite LNB Switcher 2-Pack
Description:
1. DiSEqC 2.0 supports bi-directional DiSEqC full control functions
2. 2/4 satellite inputs selected by DiSEqC commands
3. 1 output for receiver with “DiSEqC” command functions
4. Max. 500mA DC power passing from RX to LNB
5. 75ohm, British system F-type connector
6. Insertion loss: 3db
7. Frequency range: 950-2400NHz
Key Parameters:
- Bandwidth (MHz): 950-2400
- Insertion loss (dB): ≤3
- Return loss (dB): ≥8
- Isolation (dB): ≥20
- Work power supply: DC13-18V/30mA
- Max. current passing (mA): 500
- Signal control: DiSEqC
- Dimension (mm): 75×66×17
Package Included:
- 2 x SB-41SA 4X1 Satellite Signal Switcher
