SBB4089Z (SBB4089) 2M-6GHz Low Noise Amplifier LNA w/ 15DB Gain High Flatness (without Type-C Port)

SBB4089Z (SBB4089) 2M-6GHz Low Noise Amplifier LNA w/ 15DB Gain High Flatness (without Type-C Port)

Attention:
1. The input terminal (RF in) and the output terminal (RF out) of the module must be connected first. And then connect the module to a DC power supply.
2. Be sure to connect the positive and negative electrodes correctly when the module is powered by a DC power supply. Reverse connection is not allowed because the module will be damaged.

Description:

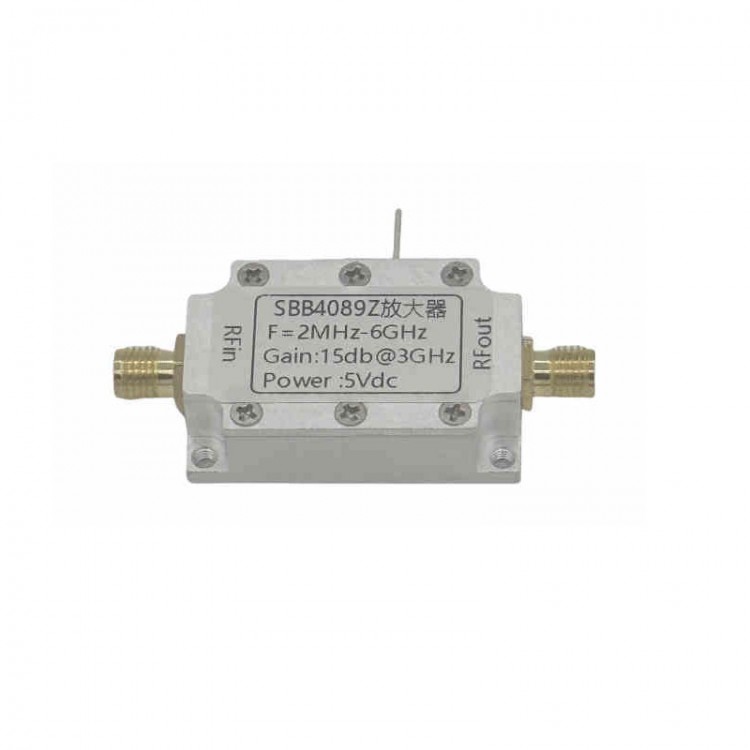

It is a 2MHz-6000MHz LAN amplifier module with high flatness. You can also buy the version with a type-c 5V port. The version can be powered by a 5V type-c mobile phone charger, a computer USB port, and the 5V USB port of your instruments.

Application:
* It can be used in general frequency bands such as VHF, UHF, Beidou, positioning, navigation, and video transmission. It can also be applied to front-end drivers.
* Connect the input signal and output load before supplying power to the module.

Parameters:
* Label words: printed with pine resin, the words can not be worn off for a long time
* Bandwidth: 2MHz-6000MHz
* Power supply: 5V/74mA
* NF: 4.3dB (typical)
* Maximum input power: ≤0dBm
* Maximum output power: 80mW (19dBm)
* Flatness: ≤3dB
* Gain: 15dB (refer to the measured curve below)
* Input and output impedance: 50Ω
* Input voltage VPP: <0.225V
* Housing: CNC precision machining
* Connector type: SMA female connector

Instructions for Use:
* RF in: signal input
* RF out: signal output
* GND: the negative pole of DC power supply
* DC: the positive pole of DC power supply

Package Included:
* 1 x LNA Amplifier Module

Packaging Details:
* Weight: 0.2kg
