SBB5089 Module RF Power Amplifier RF Power Amp Designed with 50M-6GHz Wideband and 20dB Gain
Attention:
The RF amplifier must be connected to a load and then connected to signal (powered on), otherwise the amplifier can easily be burned out. And our store is not responsible for the damage to the amplifier if you do not follow this operation procedure.
Features:
* The RF amplifier has good S-parameters
* Its basic parameters are not much different from the official ones
* Users can optimize the module according to needed frequency band and give full play to the performance of the module
* 50-6000MHz
* +20.4dBm P1dB at 1950MHz
* Powered by a single power supply
* Impedance matching 50Ω
Product Parameters:

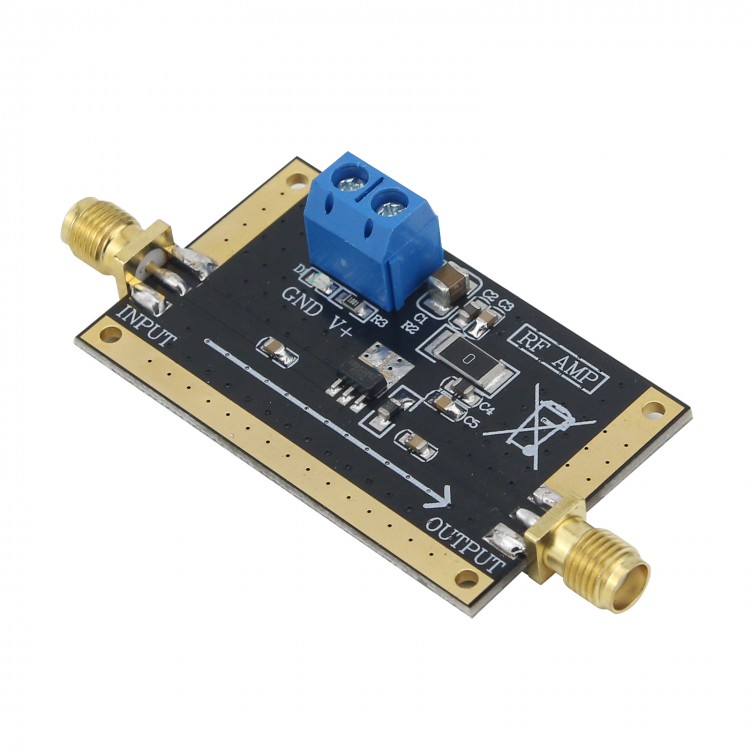

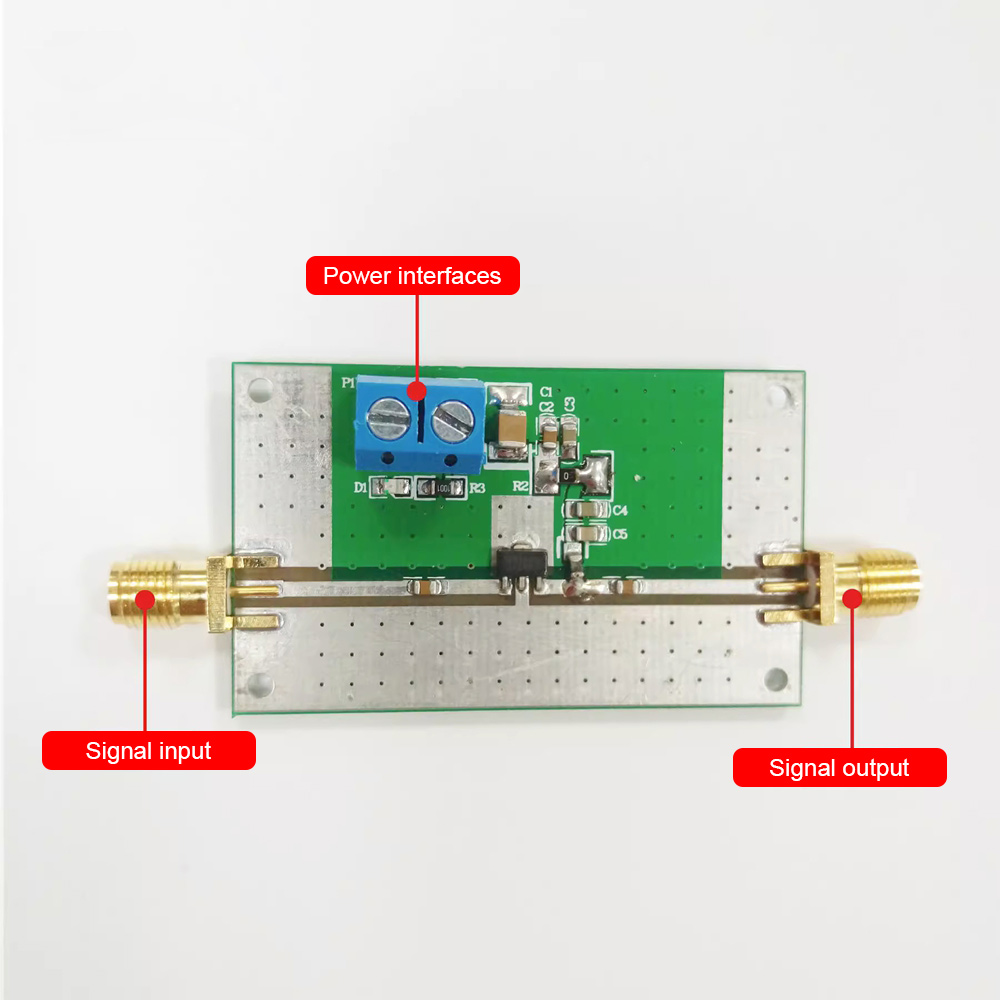

* Item name: SBB5089 RF Amplifier Module

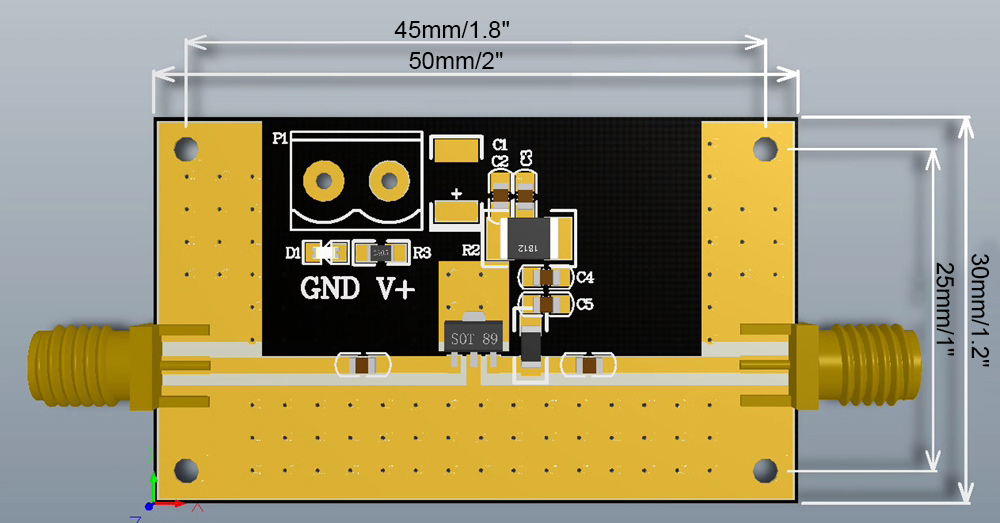

* Dimensions: 50mm x 30mm/2" x 1.2"
* Supply voltage range: +5V
* Current: 110mA
Package Included:
* 1 x RF Amplifier Module
Packaging Details:
* G.W.: 0.15kg
