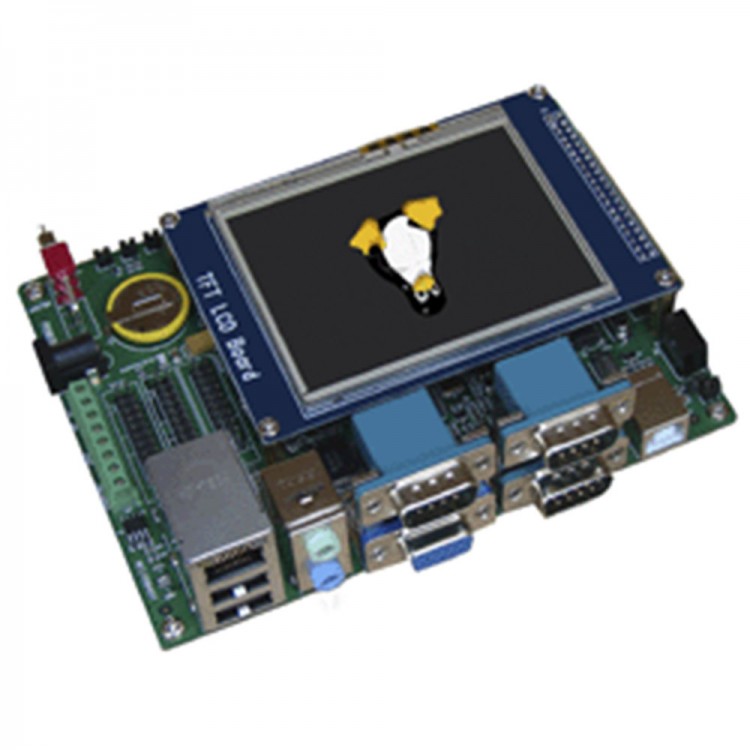

SBC9261-I Development Board Based on AT91SAM9261S Industrial Processor Module
Specification:
- SBC9261-I is made up of Mini9261-I (CPU core board) and development bottom plate.
- AT91SAM9261S microprocessor, industrial grade chip
- Based on ARM ARM926EJ-STM processor
- ARM Jazelle technology provides Java acceleration features
- 16K byte data cache, 16K byte instruction cache, write buffer
- At 190 MHz, the performance was as high as 210 MIPS
- Memory management unit
- Embedded ICE, support debugging channel
- Medium scale embedded macro cell structure; additional embedded memory
- 4MB 16 Nor Flash bit, maximum support 16MB
- 1Kbit EEPROM (DS2431)
- 4MB DataFlash
- 128MB NAND Flash
- 32bit, 64MB, SDRAM
- RTC, with backup rechargeable battery, with power down protection
- I/O and other extended hardware interfaces through 200-pin DIMM
- Can choose to start the system through NorFlash, DataFlash, Flash Nand
- 3.3V single power supply
- One channel 10M/100M Ethernet control chip
- Mechanical dimensions of the core board: 67.6mm*47mm
- 6 laminates
Extended bottom plate resource:
- Four channels serial port
- COM0: three wire Debug port (with TTL pin level leads out) can be used as an ordinary serial.
- COM1: five wire RS232 (with RTS, CTS with TTL pin level leads)
- COM2: Nine wire system full function RS232
- 1 channel RS485 (with TTL pin level leads out)
- 10/100Mbps network interface (RJ45), including network transformer and status indicator
- 1 channel CAN2.0 interface, with power and Optocoupler
Audio output
- LCD interface
- VGA interface: through the LCD interface to extend the VGA module
- 2* USB 2.0 HOST (12 Mbps )
- 1* USB 2 Device (12 Mbps )
- SD card slot, support hot plug (SDIO mode)
- Standard JTAG 20pin debug interface
- 1 channel SPI multiplexing interface (with the CAN interface reuse), to facilitate the expansion of other equipment
- 13 *GPIO
- Support 4*4 matrix keyboard directly
- 2 * programmable LED
Package included:
- 1 x SBC9261-I Development Board
