| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $16.41 | $16.07 | $15.57 | $14.90 | Contact US |
Specifications:
- Access form: built in WDM Wavelength Division Multiplexing receiver
- input bands: 1100-1600nm &1310/1490/1550nm
- Input optical power: 0dbm-13dbm (anolog signal) & 0dbm-18dbm (digital signal)
- Optical return:>45db
- Optical connectors: FC/APC&SC/APC&UPC&SC/UPC
- bandwidth:40-862 &1000Mhz
- Flatness:+- 0.75ds &40-862db &1000Mhz
- RF output loss: >16db @40-550Mhz>14db @550-862db &1000Mhz
- Output port level: >68dbuV
- Output port:1
- RF Output impedance:75ohm
- CTB:>65db
- CSP>62db
- size: 86*86*29mm
- product weight: 50g
Package included:

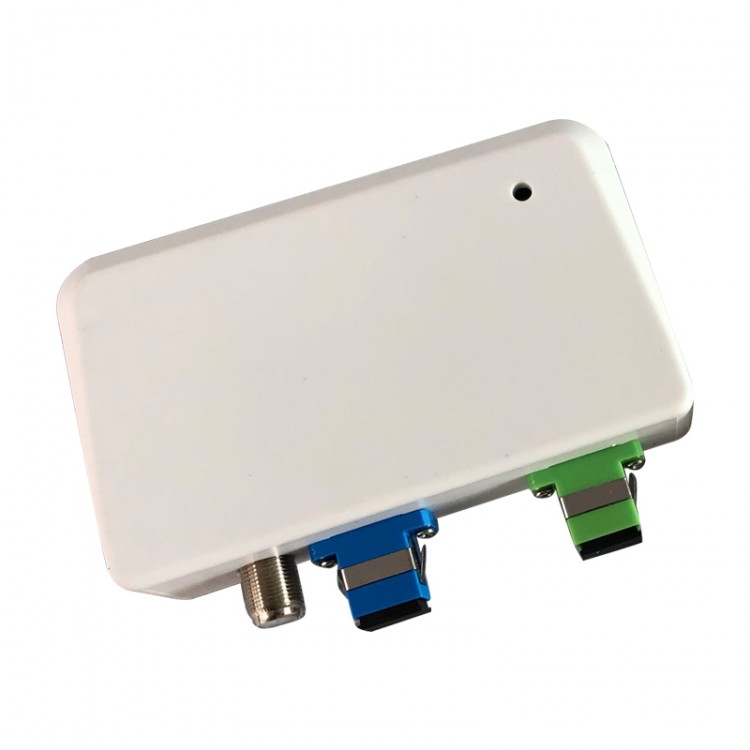

- 1 x WDM passive optical receiver module
