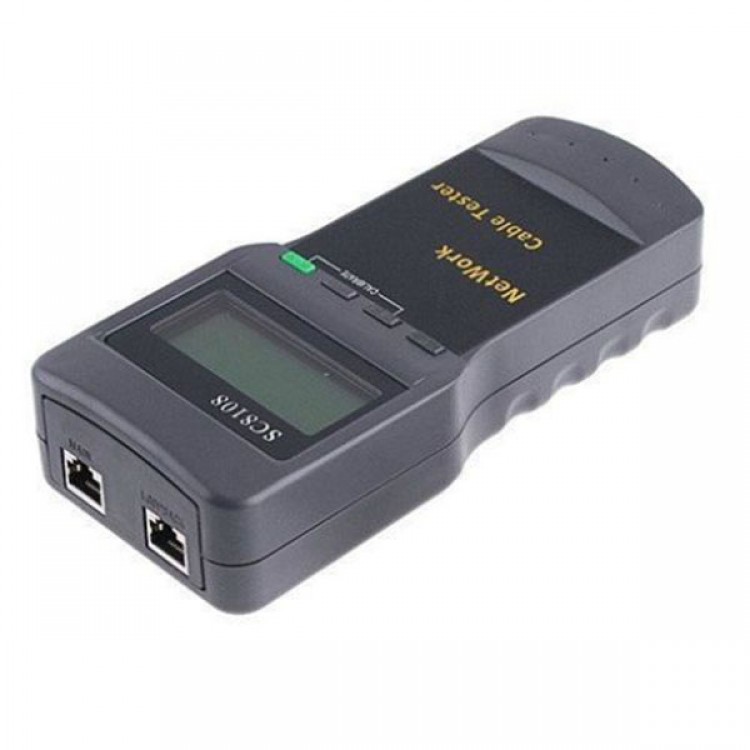

SC8108 RJ45 Network LAN Length Telephone Cable Location Tester Meter Measure

SC8108 RJ45 Network LAN Length Telephone Cable Location Tester Meter Measure

Display RJ45
This Multi-Network Cable Tester is a powerful tool to prevent and solve cable installation problem.
Do your cabling with confidence! Prevent and solve cable installation/maintenance problems instantly!

Functions:
The tester will automatically detect far-end matcher (ID) or local port (L) cable and displays if the far-end of cable to be checked does not insert into the far-end matcher (ID) or if the cable does not insert into the local port (L) in local test. This network cable tester instantly check your LAN cable wiring for proper continuity, shorts, and pair integrity. Test results are digitally shown via its LCD and it instantly displays the exact configuration of the cable. It performs line test without requiring the external adaptor. With single board computer software watchdog design and reliable operating time. This covers wide array of applications such as cable connection sequence, length, user jumper or crossfire, cable connection continuity and determine any open circuit, short circuit, jumper or cross-talk interference.

Features:
Efficient, effective, reliable, easy and safe to use.
A person is enough to complete cable continuity check and cable sequence.
Indicates pair integrity of the cable.
Measure length and pair with or without far-end recognizer.
Locates the wiring or connection error.
Measures cable length and determine the distance of open circuit and short circuit.
Permits you to check wiring error in 5E/6E twisted cord network, coaxial cable and telephone line.
Applicable for open circuit, short circuit, jumper wire, reverse connection or cross-talk interference.
Dynamically calibrates cable length and make length measurement as accurate as 97%.
Portable unit with long battery life (wait-case or standby mode for over 50 hours).
Auto time delay shut off.
Comes with 1 far-end passive test jack.
Far end recognizer with prompt voice.
Single board computer software watchdog design and reliable operation.
Self-checking function and automatically compensates any change in battery capacity or ambient temperature.
Simple and easy to use, big LCD screen to display test results.
Compact, lightweight, easy to carry and use.
High quality, with one year warranted.

Specifications:
Type of Tester Cable: STP/UTP twin twisted cable, coaxial cable, telephone line
Tester Port
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
(BNC and RJ11 converters (not included in the set), can be used to measure and check the continuity of coaxial cable and telephone line)
Length Measurement of Twin Twisted Cable:
Scope: 1 to 350M (3 to 1,200 FT) calibration
Calibration accuracy: 3% (0.5m or 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy: 5% (0.5m or 1.5 ft) (AMP, AT&T Class 5 cable)
Unit of Measurement: Display in meter (M) or feet (FT)
Length Calibration:
User can set self-calibration factor by a given length cable.
The length of calibrating cable is more than 5M
Wire Sequence and Locating Cable Error:
Check errors such as open circuit, short circuit, reverse connection, cross over or cross-talk interference
Locating Cable:
Included 1 far-end passive test jack
Powerd by: 4 x AAA batteries
Automatic Time-delay Shut Off Time: The tester is idle for 30 minutes
Working Ambient Temperature: -10C to 60C
LCD size: 2.6"
Color: Grey
Product size: 180x80x40mm
Product weight: 222g
Package size: 260x222x60mm
Package weight: 826g
