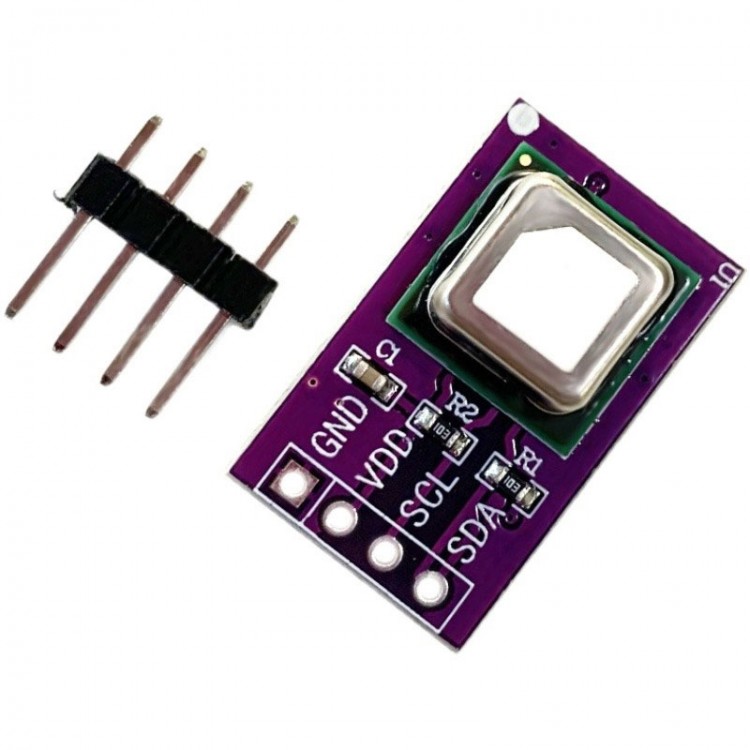

SCD40 Purple Gas Sensor Module for Carbon Dioxide Detection Temperature and Humidity in One IIC Communication

Availability: In stock, usually dispatched in 1 business day

  • Price:$22.75
  • Price in reward points: 228 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $22.30 $21.84 $21.16 $20.25 Contact US
Quantity:

SCD40 Purple Gas Sensor Module for Carbon Dioxide Detection Temperature and Humidity in One IIC Communication

Description:

- Carbon dioxide is a key indicator of indoor air quality that impairs human cognitive ability and happiness. SCD40/SCD41 is the next generation of miniature carbon dioxide sensor for Sensirion. SCD40/SCD41 has high accuracy and high cost performance. The module leads out the power supply and communication pins with 2.54mm spacing pin interface. On-chip temperature and humidity compensation realizes humidity and temperature measurement through built-in temperature and humidity sensor. SCD40/SCD41 can realize intelligent adjustment of indoor ventilation system based on carbon dioxide concentration, and indoor air quality helps to maintain a healthy and efficient environment under low carbon dioxide concentration for a period of time.
- More details: https://pan.baidu.com/s/1rQHWomhnol4oHt18B_VZ-g  password: 067t

Features:
- Reference accuracy specified range:400-2000 ppm for SCD40; 400-5000 ppm for SD41
- Power supply voltage range: 2.4 – 5.5 V
- High accuracy: ± (40 ppm+5%)
- Digital I2C interface
- Integrated temperature and humidity sensor
- Low power operation to < 0.4mA average at 5V, 1 meas./ 5 minutes
- Module size: 13.4 x 21.6mm

Parameter:
- Carbon dioxide measuring precision: ± (50 ppm+5%MV)
- Measuring range: 400-2000ppm
- Accuracy: ±50ppm
- Relative humidity measuring range: 0-95%RH
- Typical relative humidity precision: 6% RH

Interface definition:
- GND: Power negative input
- VDD: Power positive input
- SCL: IIC Clock interface
- SDA: IIC Data interface

Package Included:
- 1 x SCD40 Gas Sensor Module
