SCO_2_10M 2 Channel Oscilloscope w/ Two High Voltage Probe Cables 50M Sampling Rate 10MHz Bandwidth

SCO_2_10M 2 Channel Oscilloscope w/ Two High Voltage Probe Cables 50M Sampling Rate 10MHz Bandwidth

Features:
• Small and versatile
• 2 channel oscilloscope
• Miniature and functional
• Full-featured and cost-effective
• 220V voltage measurement
• Supports Lissajous figure
• 6A current waveform measurement
• One-button automatic adjustment, no need for cumbersome adjustment to display the measured waveform
• 50M sampling rate and 10M analog bandwidth
• A variety of functional module extensions
• Multi-mode interface: dual-channel oscilloscope mode, Lissajous figure mode, and current waveform display
• With a complete trigger function (single, normal and automatic), whether it is for periodic analog signals or non-periodic digital signals
• Can measure voltage signals up to ±400V
• 20K storage depth and supports waveform compression and expansion
• The current waveform is steplessly compressed, and the maximum compression multiple is 100 times. The user can view the current change curve arbitrarily
• Later expansion function: The main unit can be connected via a USB cable for multiple purposes
• Firmware upgrade is supported. As long as the oscilloscope's built-in hardware allows, you can put forward your needs and upgrade them indefinitely
• Widely used: Suitable for home appliance repair, mobile phone repair, car repair, electronic hobby DIY R&D and power supply repair

Specifications:
• Model: SCO_2_10M
• Sampling rate: 50M/channel
• Number of channels: 2
• Analog bandwidth: 10MHz (per channel)
• Measured voltage: X1/±40V; X10/±400V
• Input impedance: 1MΩ
• Storage depth: 20Kb
• Displayed parameters: 12 kinds
• Current measurement: 0~6A
• Minimum accuracy: 2mA
• Current sampling rate: 2.5KSa/S
• Display: 3.2" LCD; 320*240 resolution
• Charging voltage: 5V
• Battery capacity: 2500mAh
• Continuous working time: 4.5-6h
• Host computer: To be updated
• Firmware upgrade: Support
• Shell size (excluding the size of BNC connector): 120 x 66 x 18.5mm/4.7 x 2.6 x 0.7" (LxWxT)
• Function generator (expansion): Support
• Transistor detection (expansion): Support
• Acoustic measurement (expansion): Support

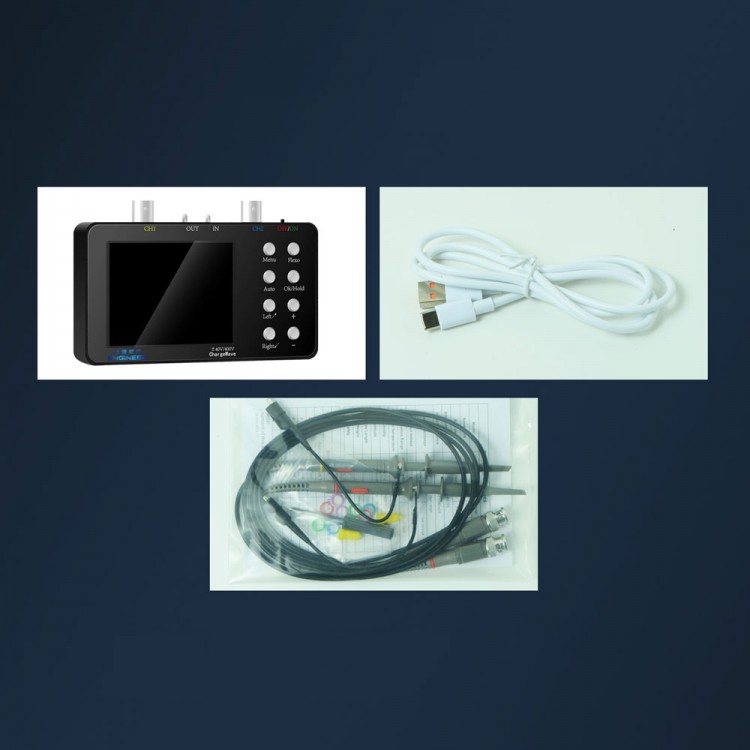

Package Included:
• 1 x Main unit
• 1 x USB cable
• 2 x High voltage probe cables

Packaging Details:
• G.W.: 0.45kg

Note:
• High voltage probe cable is optional. You can choose the versions with it. Thank you!

Precautions:
1. When measuring voltages over 40V, be sure to turn the probe to X10.
2. When measuring high voltage (over AC 36V), do not touch the metal part of the instrument, especially the BNC interface.
3. The charging voltage should not exceed 6.8V to avoid burning out the charging chip.
4. Only for measuring mains electricity: it is forbidden to connect it with a computer, which will cause a short circuit of the zero line and the ground wire.
