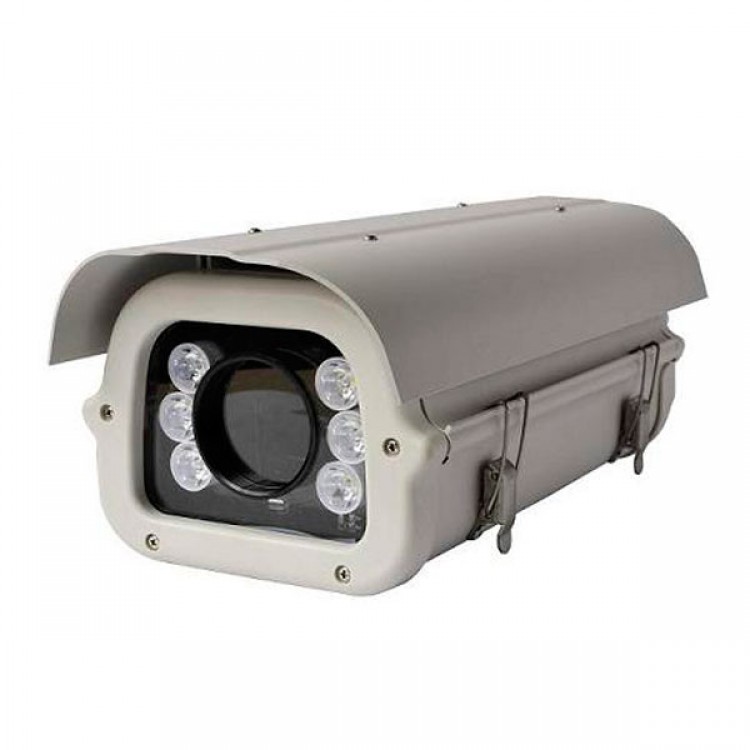

SD6-90-A-W Illuminator Camera Housing for 6 LED Illuminator 90 Degree

SD6-90-A-W Illuminator Camera Housing for 6 LED Illuminator 90 Degree
Descriptinon:
- Designed  for 6 LED illuminator
- Accurate constant circuit drive develops excellent performance of LED;
- Using high power LED, high efficacy and long service life;
- Improve performance of camera to get better pictures at night time.
- Fill Light for night vision camera
- Indoor/Our door use
- Easy installation

Features:
- Ordinary night supervision
- Medium and short length of coverage: 8 meters to 60 meters
- 15 degree/30 degree/45 degree/60 degree/90 degree beam angel
- Sounder-proof camera
- Temperature control function.
- Night video analysis function
- Low cost of equipment
- Low cost of install and wiring cost.
- Low image delay and frame lost problem
- Low Ethernet bandwidth demand
- Low S/N rate and less image distortion
Specification
- Quantity of LED: 6PCS 1W High Power LED
- Color Temperature:Cool white, warm white
- Luminous Flux :600lm
- Bean Angle:30° (standard), other angle optional
- Viewing Distance :8-60m
- Day/night Switch: Auto
- Working Voltage :AC110-220V/AC24V/DC12V
- Power consumption : 11W
- Wire : If 12VDC/24VAC:45cm(1.4 ft.)
- Plug :AC110-220V(standard), other voltage optional
- Panel : Tempered glass panel
- Housing :Aluminum Die Casting Housing
- Bracket :Mount bracket
- Working temperature : -20℃ TO +50℃
- Protection Level : IP65
- Color :White
- N.W : 2.6KG
- G.W :3.25KG
- Dimension:390*172*155mm
- Packing Dimension :440*270*220mm

Model             Bean Angle   Viewing distance
SD6/W15AW        15°                 60m
SD6/W30AW        30°                 35m
SD6/W45AW        45°                 25m
SD6/W60AW        60°                 15m
SD6/W90AW        90°                  8m
Actual viewing distance is depended on the performance of camera and lens
