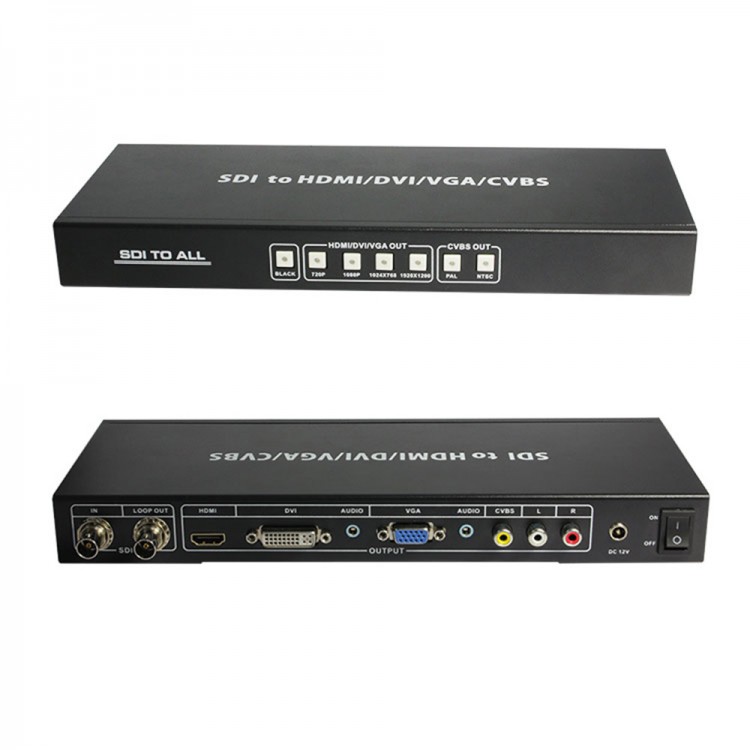

SDI to ALL Scaler Converter SD-SDI HD-SDI 3G-SDI to CVBS VGA DVI HDMI Signal Converter HDV-SA02
User manaual: Click here
Introduction
The SDI to ALL Scaler Converter allows SD, HD and 3G-SDI signals to be shown on HDMI/DVI/VGA/Composite port display. This means that it is now easier for professionals to distribute and extend their SDI signal while giving the ability to display work on these display. Furthermore, thanks to L/R audio outputs users can output analog audio formats while the loop-through 3G-SDI design benefits users by letting them simultaneous show content on both SDI and HDMI/DVI/VGA/Composite port displays.
Features
- Supports SD-SDI, HD-SDI and 3G-SDI input signals with auto-detection;
- Supports HDMI/DVI/VGA/Composite and SDI (bypass) output simultaneously;
- SDI interface operates at bitrates of 2.970 Gbit/s, 2.970/1.001 Gbit/s,1.485 Gbit/s, 1.485/1.001 Gbit/s and 270 Mb/s;
- Supports SDI input/output distance up to 100 meters (3G-SDI), 200meters (HD-SDI), or 300 meters (SD-SDI);
- Scale any SDI signal to HDMI/DVI/VGA/Composite:
HDMI/DVI/VGA timings: 1280x720,1920x1080,1024x768,1920x1200;
Composite format: PAL,NTSC;
- Supports SDI input modes:
SD-SDI (SMPTE 259M-C, at bitrates of 270 Mbit/s)
HD-SDI (SMPTE 292M, at bitrates of 1.485 Gbit/s and 1.485/1.001 Gbit/s)
3G-SDI (SMPTE 424M/425M-AB, at bitrates of 2.970 Gbit/s and 2.970/1.001 Gbit/s)
- Supports Black screen signal output;
- Equalized and re-clocked loop output;
- Alternative audio output to analog 2CH;
Package Contents
- SDI to ALL Scaler Converter 1pcs
- 12V/2.5A DC power adaptor 1pcs
- Operation Manual 1pcs
