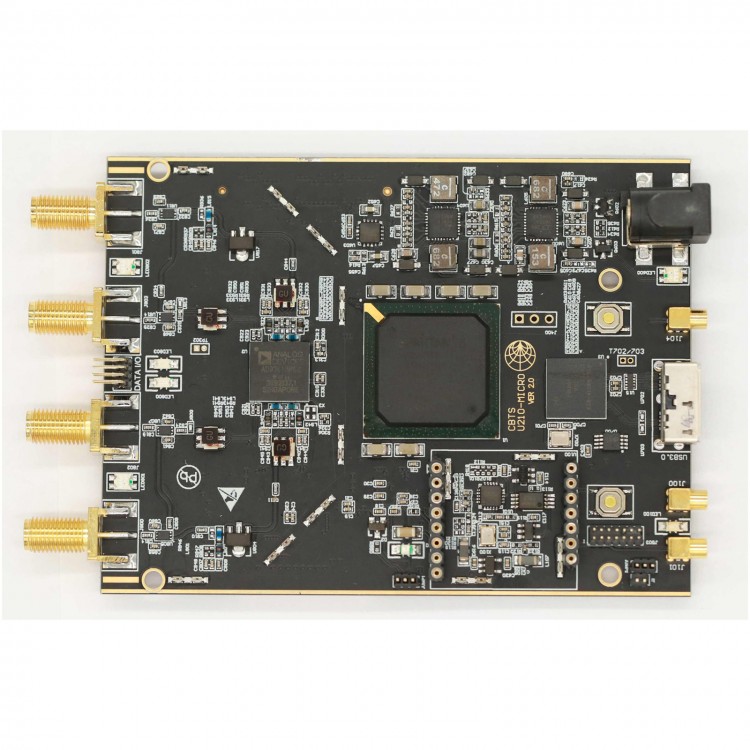

SDR Board RF Development Board 70MHz-6GHz USB 3.0 Compatible with USRP-B210 MICRO+ with OCXO
Description:
It is fully compatible with USRP-B210 high performance SDR.
This product upgrade is mainly for the optimization of RF and power supply circuit. Some RF strobe switches have been removed to optimize the selection of balun devices. Based on the upgrade of RF performance and the overall reliability and stability of the product, it is fully compatible with USRP official UHD drivers and firmware. At the same time, the product can support the firmware of the "Support Band Preselector" that Shanhei is about to exit by means of jumpers.
Features:
- Support for pre-band preselector module: RF performance can be improved by connecting the expansion board of the band preselector. The band preselector is also designed as dual channel. At the same time, the combination of the MICRO B210 and the band preselector module, the preselection of the band is fully automatic and intelligent. No manual intervention is required. (The release time of the band preselector is expected to be in early March)
- New Intelligent Module Chip: It can support more modules and functions in the future through internal upgrade of smart chip.
- It also supports the GPS-DO and OCXO produced by Shanhei and the official GPS-DO of USRP, which expands the user's choice.
- The original design DEBUG interface and GPIO interface are retained, and the GPIO interface of AD9361 and the debugging interface of USB interface chip are introduced, which facilitates more in-depth development and debugging of developers.
- The connector of the MICRO B210's GPS receiving antenna with the 10M and PPS reference inputs is the MMCX connector, and the connector of the RF RF section maintains the SMA design.
Package Included:
- 1 x SDR Board with OCXO
