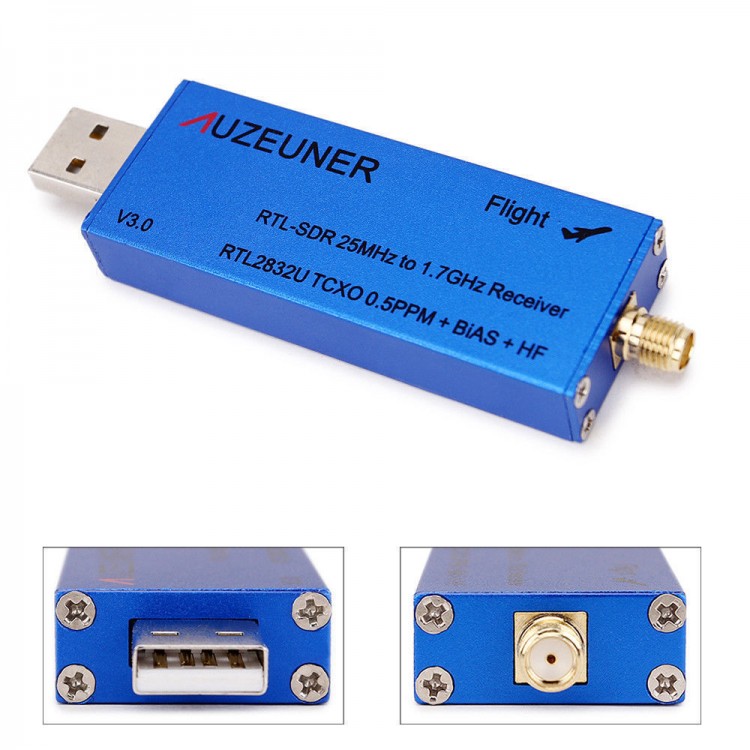

SDR Receiver 25MHz - 1.7G + BiAS+ HF RTL-SDR RTL2832U R828(R820T2 Upgrade) TCXO DAB
Description:
- This is a new generation of software defined radio receiver RTL-SDR with RTL2832 ADC chip, 0.5 PPM TCXO, SMA Fconnector and aluminum case with passive cooling.
- Music from 25 MHz to 1700 MHz bandwidth.
- Perfect for use as a radio scanner with free computer based software such as SDR, HDSDR, SDR-Radio, Linrad, GQRX or SDR Tap on Android.
- Works on Windows, MacOS, Linux, Android and even embedded Linux computers for Raspberry Pi.
- Great for many applications including general radio scanning, air traffic control, public safety radio, ADS-B aircraft radar,
AIS boat radar, ACARS, trunked radio, P25 / MotoTRBO digital voice, POCSAG, weather balloons, APRS , NOAA meteorological satellites APT,
Meteor M2 satellites, radio astronomy, meteor scatter monitoring, DAB, or for use as a low-cost panadapter with a traditional ham radio.
- This model adapted new solution ADC RTL.
- It uses the improved tuner, comes with a 0.5 PPM TCXO (no drift and precise adjustment with an initial offset of 1 PPM and 0.5 PPM temperature deviation),
improved component tolerances and an SMA F connector.
- It requires a USB 2.0 port and works on most USB 3.0 ports (Note that we can not guarantee this to work on all USB 3.0 ports, make sure your PC has a USB 2.0 port just in case).
Features:
- Fully assembled and ready for use.
- 25 MHz to 1760 MHz, operating frequency.
- Copper VHF & UHF bands from 25 MHz-1700 MHz.
- AM, NFM, FM, DSB, USB, LSB and CW reception modes.
- 0.5 PPM TCXO temperature compensated.
- SMA antenna gold connectors is also more durable and has low insertion losses.
- Applications: Software Defind Radio, DVB-T, ADS-B
- Interface IC: AUZEUNER RTL2832U
- Tuner IC: Rafael Micro R820T2
- Clock Accuracy: 0.5PPM (Max)
- Instantaneous Bandwidth: 2.4MHz (Nominal); 3.2MHz (Max)
- Frequency Range: 25MHz-1760MHz (Nominal)
- Antenna Input: Female SMA
- Dimensions (SDR Only): 6.7cm*2.5cm*0.9cm
Specifications:
- Material: Aluminum
- Color: Blue
- Size: Approx 6.7cm*2.5cm*0.9cm
Package Includes:
1 x Receiver
